TRIM CYLINDERS SERVICE MANUAL NUMBER 28
Page 5B-16 90-863160 MAY 2000

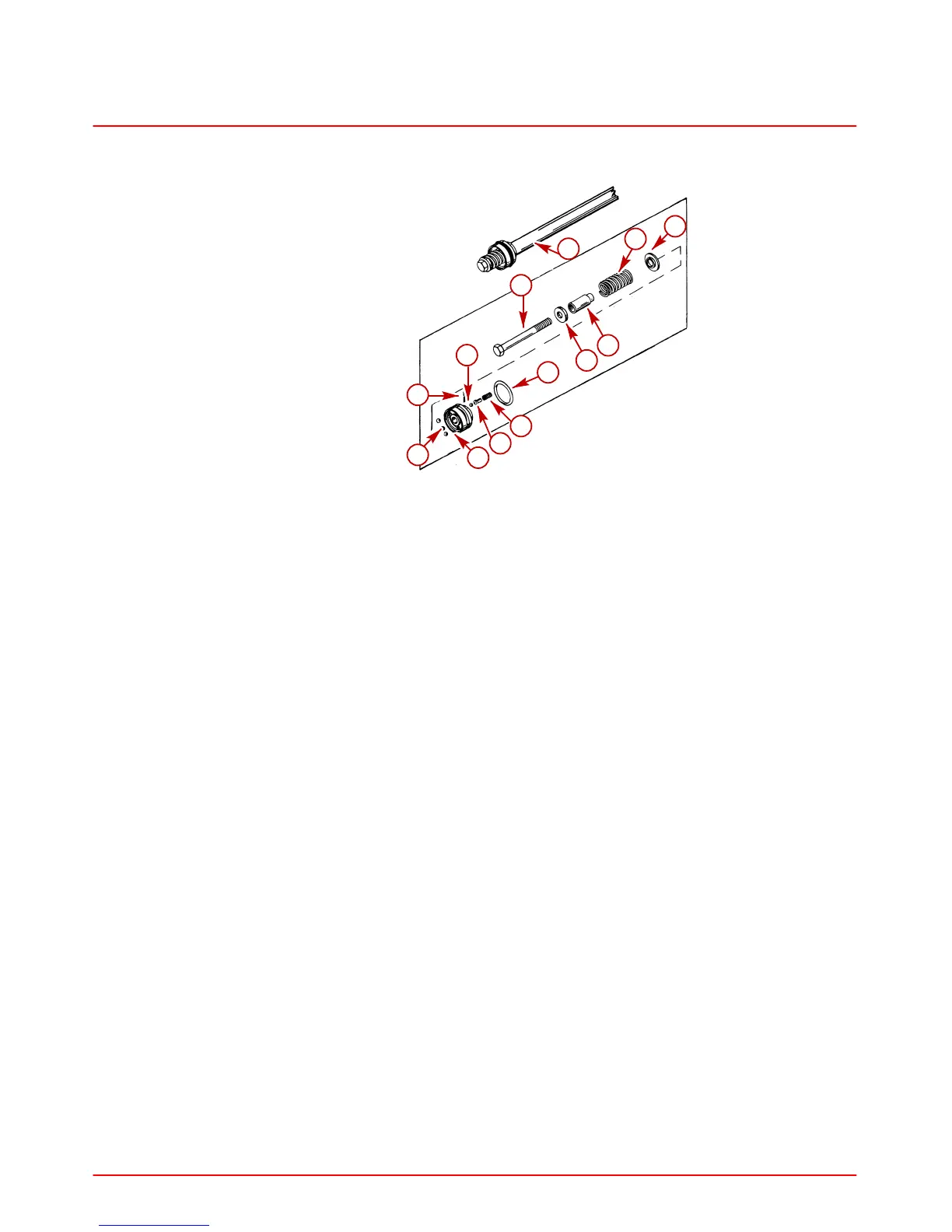

9. Install shock piston, three check balls, spring guide washer, spring, spring guide, spring
guide washer and bolt onto piston rod. Torque to 17 lb-ft (23 Nm).
22132
22133
b
a
e
d
b
h
f
c
g
l
k
j
i
a-Large O-ring
b-Shock Piston
c-Check Ball
d-check Ball Eyelet
e-Spring
f-Spring Pin
g-Bolt
h-Check Balls
i-Spring Guide Washer
j-Spring
k-Spring Guide
l-Spring Guide Washer
NOTE: Before installing floating piston into cylinder, lubricate all internal parts with power
trim and steering fluid or SAE 10W-30 or 10W-40 motor oil.
