Mercury BRAVO Service Manual

POWER STEERING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 6A-25

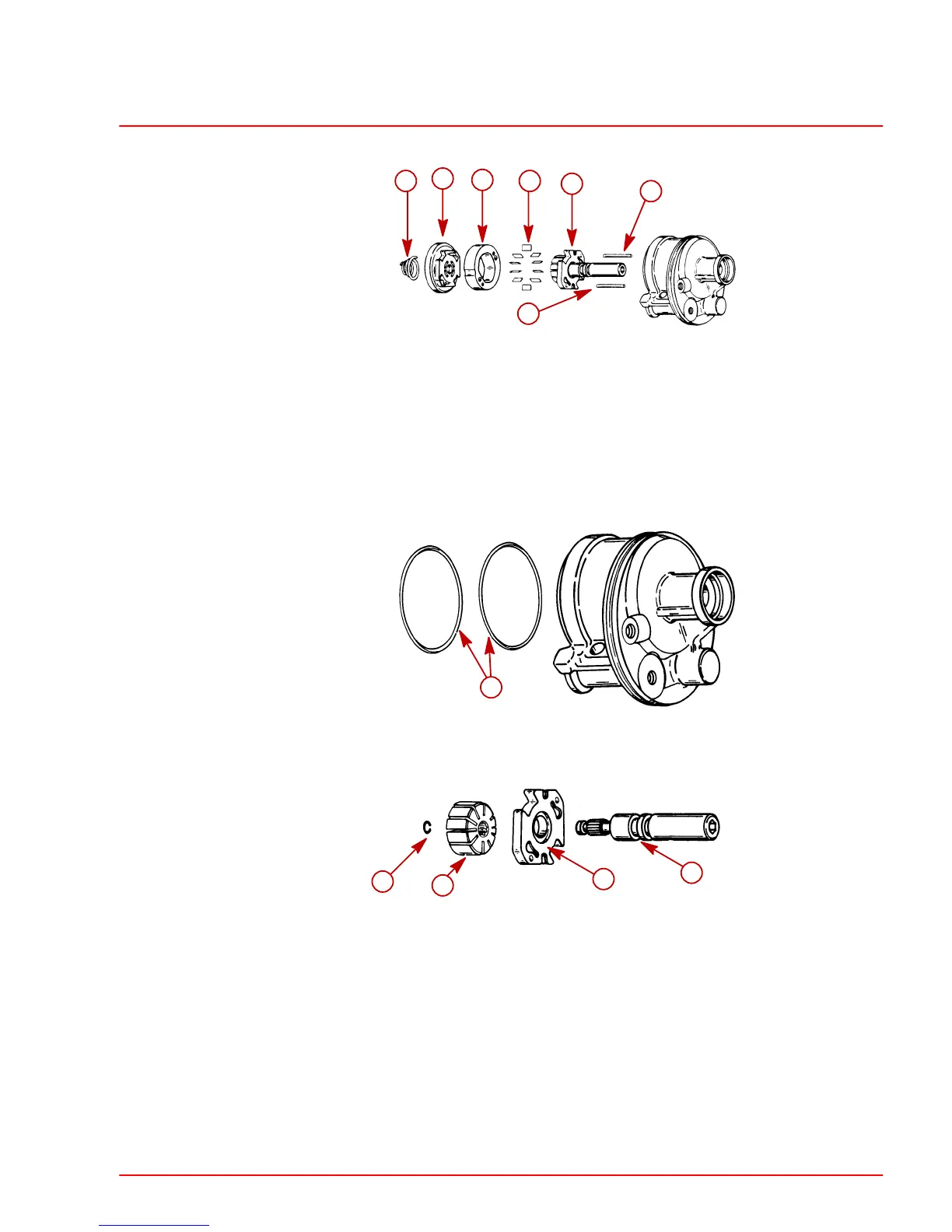

9. Remove pump components shown.
22155
a
b
c
d
e
f
f
a-Spring
b-Pressure Plate
c-Pump Ring
d-Pump Vanes
e-Pump Shaft and Rotor Assembly
f-Dowel Pins
10. Remove and discard O-rings from housing.
22155
a
a-O-rings
11. Remove retaining ring, rotor and thrust plate.
22155
a
b
c
d
a-Retaining Ring
b-Rotor
c-Thrust Plate
d-Pump Shaft
