Mercury BRAVO

ACCESSORIES - ALL MODELS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 8A-11

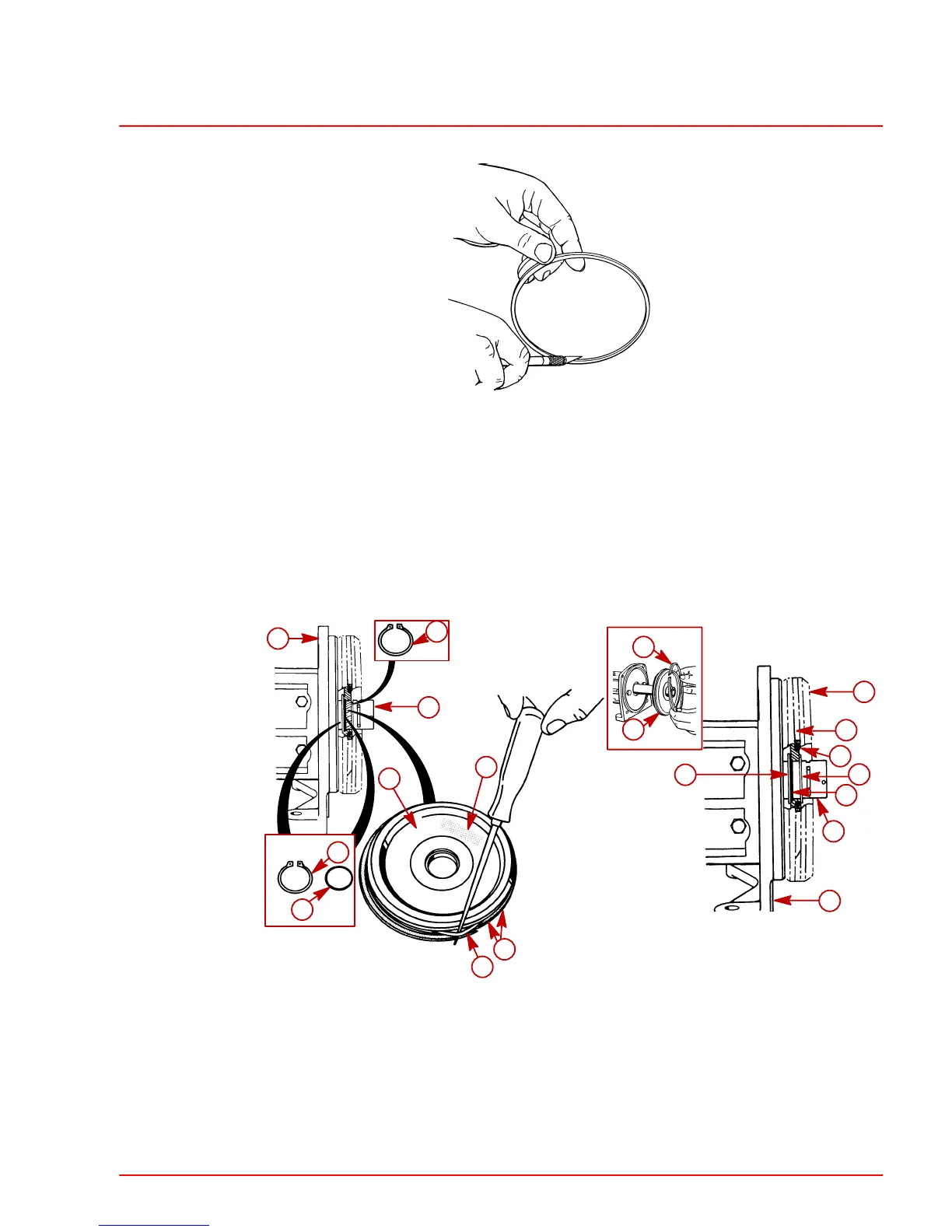

15. If the piston seal is not pre-cut, make a diagonal cut/separation as shown.
50339
16. Install the O-ring in the O.D. groove in the piston.
17. Install the piston seal over the O-ring.
18. Install the snap ring on the shaft.
19. Make sure the snap ring is fully seated in its groove.
20. Install the O-ring onto the shaft.
21. Slide the O-ring down to the snap ring.
22. Slide the piston onto the shaft. Secure the piston with a snap ring.
23. Ensure the snap ring is fully seated in its groove.
50424
50339
50423
a
a
b
b
c
b
a
c
e
g
f
g
h
f
d
d
i
i
h
a-Piston Seal
b-O-ring (Under Piston Seal)
c-Snap Ring (Outer)
d-O-ring (On Shaft)
e-Casting Number (This Side In, Toward The End Plate)
f-Piston
g-Shaft
h-End Plate/Housing
i-Snap Ring (Inner)
