REMOVAL, INSTALLATION AND ADJUSTMENTS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 2A-19

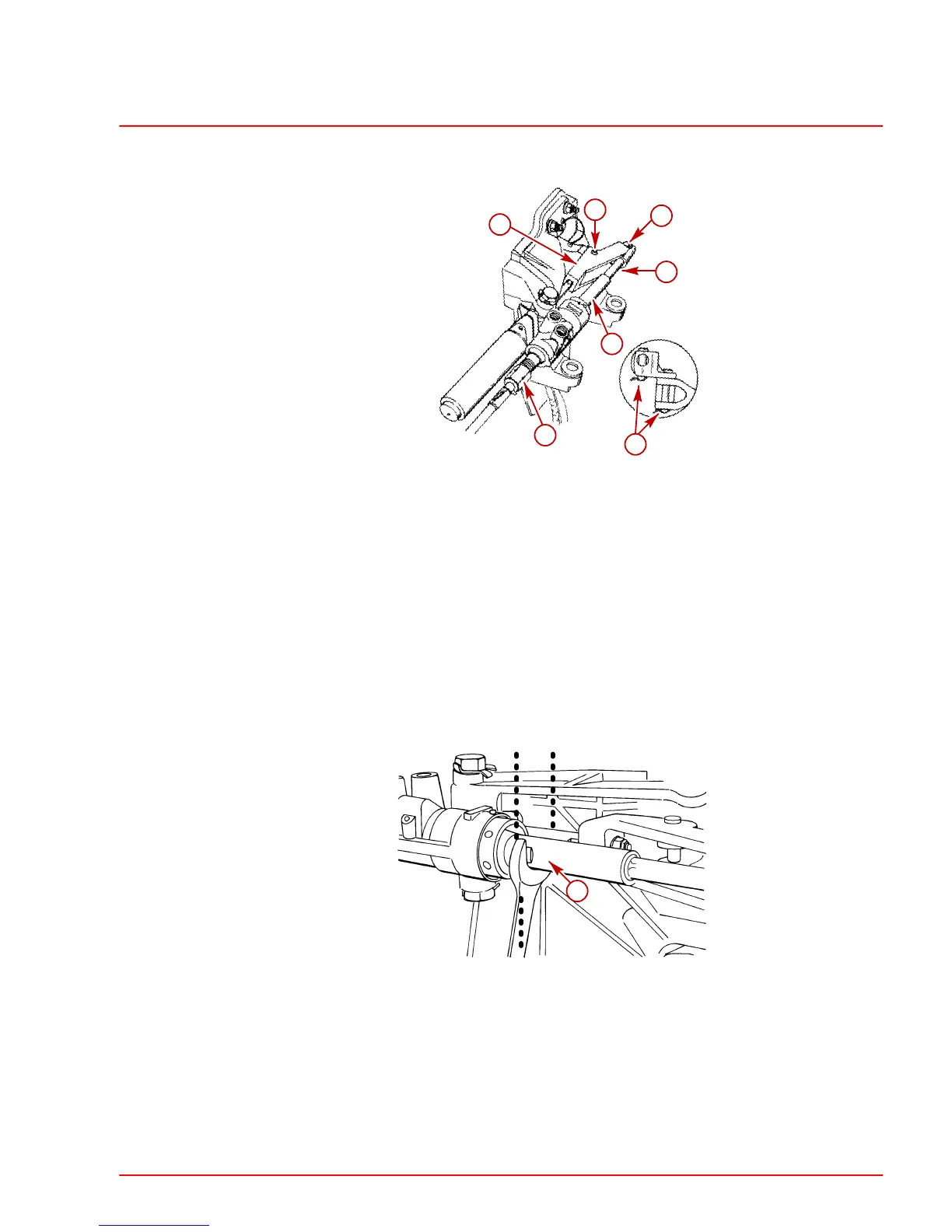

16. Connect the cable end to the clevis with the forward clevis pin. Secure the pin in the
clevis with a cotter pin. Spread the cotter pin ends.
71901
a
c
d
g
e
f
b
a-Rear Clevis Pin
b-Clevis
c-Cotter Pin
d-Steering Cable End
e-Cable Guide
f-Forward Clevis Pin
g-Coupler Nut
17. Using a suitable wrench hold the flat surfaces on the cable guide tube in the vertical
position.
IMPORTANT: Be certain the flat surfaces are still aligned vertically after torque is
applied to coupler nut.
18. Torque the coupler nut to 35 lb-ft (48 Nm).
73901
a
a-Flat Surface On Guide Tube
