REMOVAL, INSTALLATION AND ADJUSTMENTS SERVICE MANUAL NUMBER 28
Page 2A-20 90-863160 MAY 2000
19. Attach both hydraulic hose fittings.
a. Torque both fittings to 23 lb-ft (31 Nm). Route hoses as appropriate to avoid contact
with the steering system components.
73860
a
b

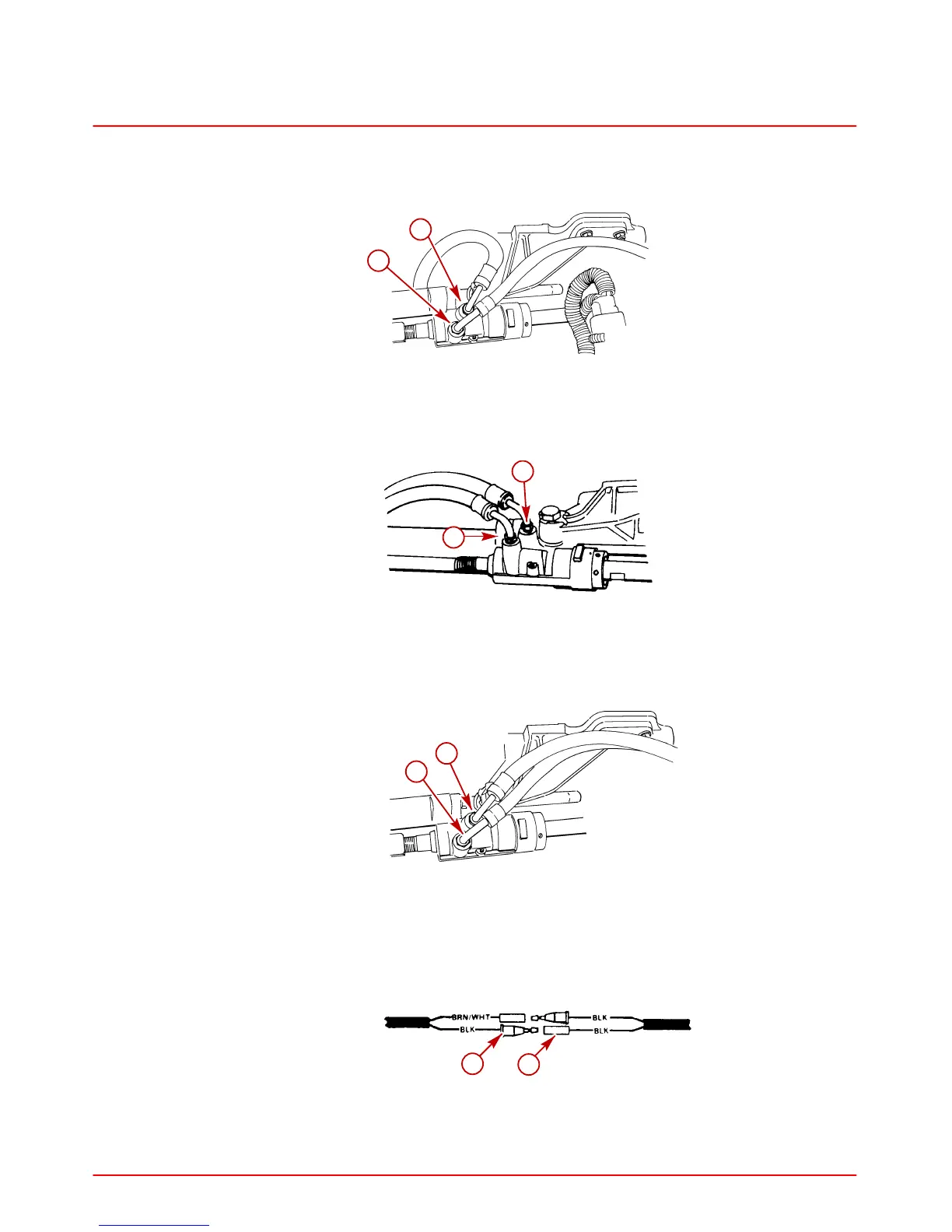

Models With One Hose Routed Behind Power Steering Control Valve
a-Rear Pressure Hose
b-Front Return Hose
74248
a
b
Models With Both Hoses Routed Behind Power Steering Control Valve Toward
Starboard Side
a-Rear Pressure Hose
b-Front Return Hose
73786
a
b
Models With Both Hoses Routed Over Transom Plate
a-Rear Pressure Hose
b-Front Return Hose
20. Connect the trim sender leads from the gimbal housing to leads from the engine
harness.
24841
b
a
a-Bullet Connectors - From Engine Harness
b-Bullet Connectors - From Transom Assembly
