Mercury BRAVO Service Manual

REMOVAL, INSTALLATION AND ADJUSTMENTS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 2A-21

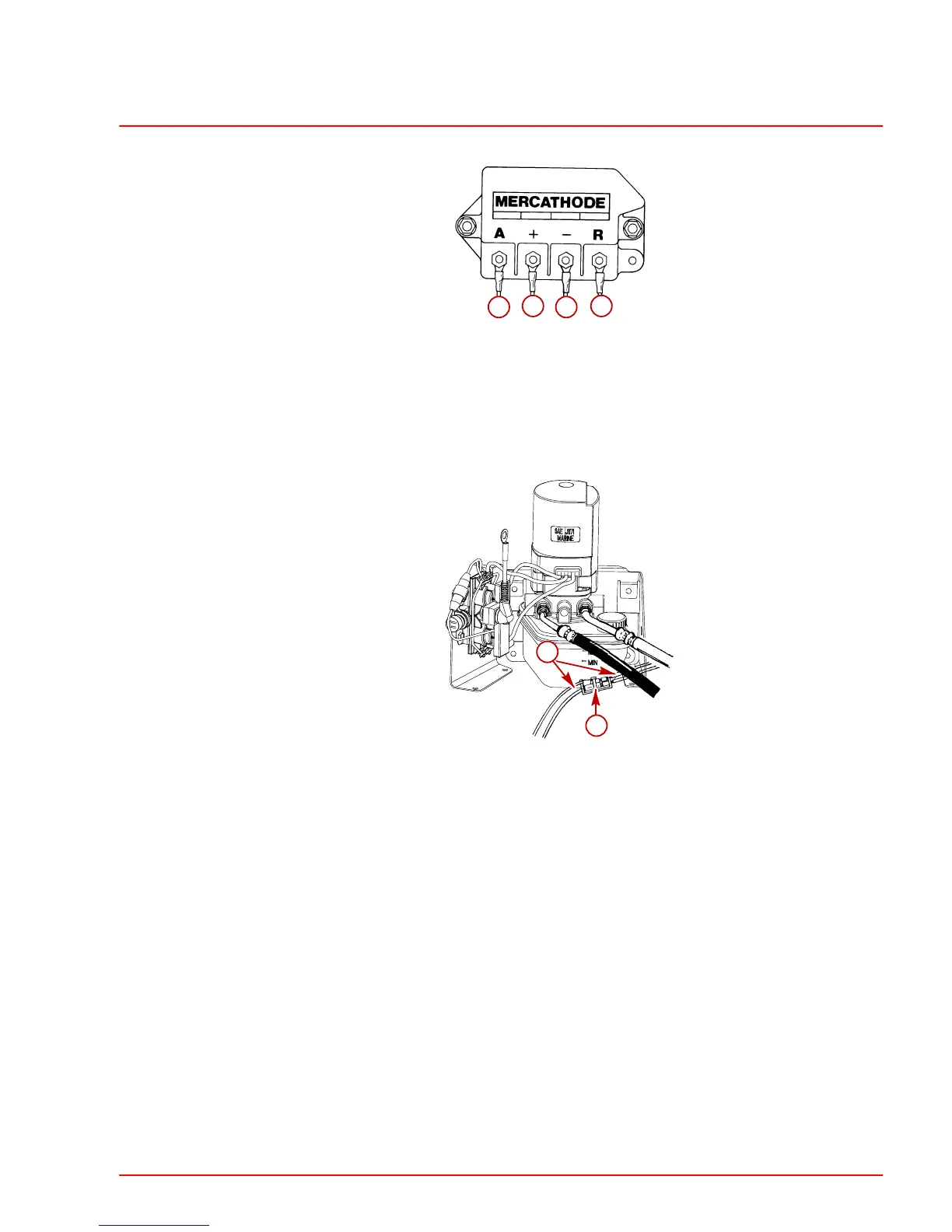

21. Connect the MerCathode wires at the MerCathode controller.
22232
a b c d
a-ORN Lead - From Electrode on Transom Assembly
b-RED/PUR Lead - Connect (Other End) To Positive (+) Battery Terminal
c-BLK Lead - From Engine Harness
d-BRN Lead - From Electrode On Transom Assembly
22. Apply a thin coat of Liquid Neoprene to all electrical connections.
23. Connect the trim limit switch wires.
a
b
76631
a-Sta-Strap
b-Trim Limit Switch Wires
