REMOVAL, INSTALLATION AND ADJUSTMENTS SERVICE MANUAL NUMBER 28
Page 2A-26 90-863160 MAY 2000
IMPORTANT: On Bravo One, Two and Three Models, the Trim-In Limit Insert must be
properly positioned before installing the trim cylinder anchor pin in the following
steps.
NOTE: Ensure that the Trim-In Limit Insert is reinstalled in the same position that it was in
prior to removal of the sterndrive unit. If you are not sure of it’s original position, contact the
boat manufacturer for their recommendation. Refer to “Special Information” at the front of
this section before reinstalling the Trim-In Limit Insert.

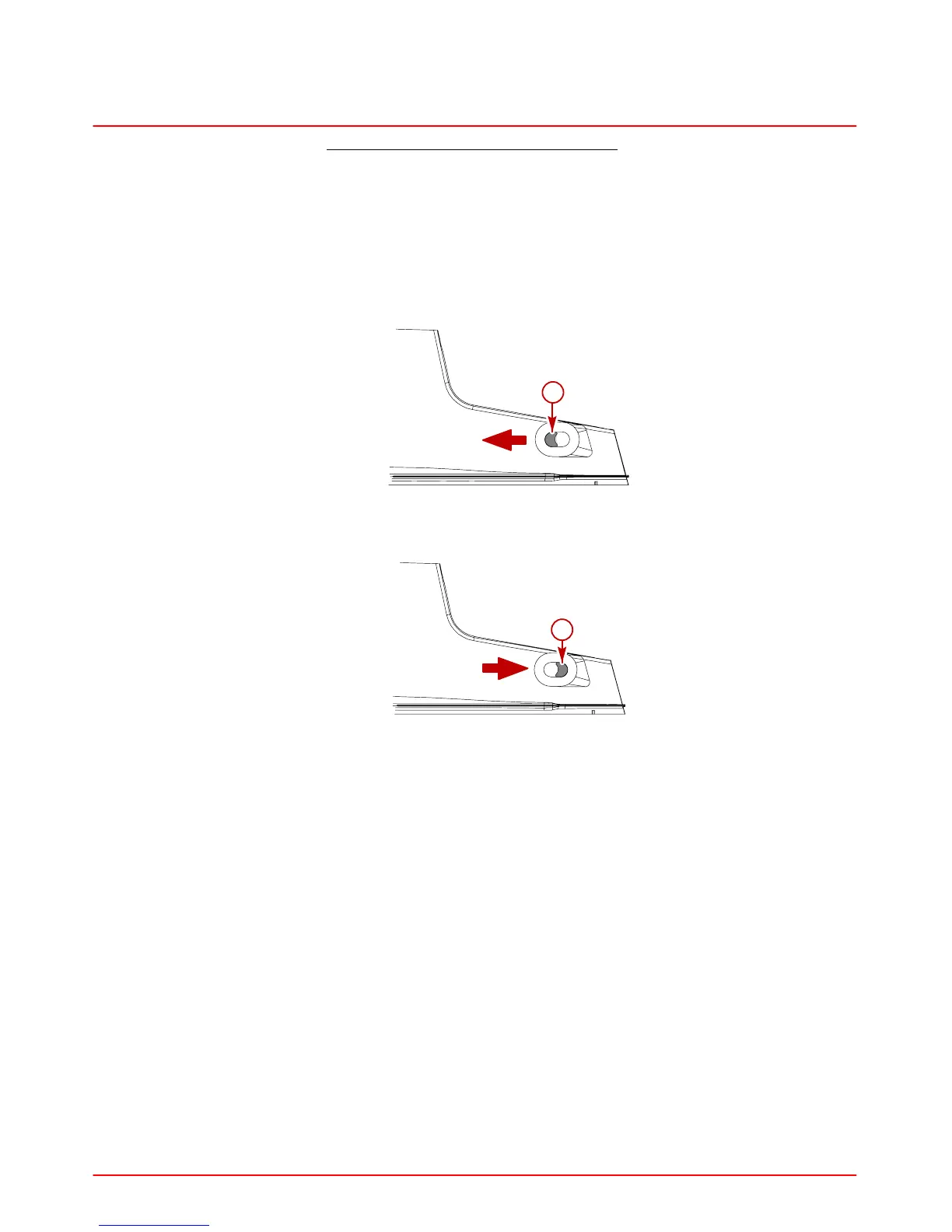

11. Ensure that the Trim-In Limit Insert is positioned as shown for the appropriate Bravo
model.
75157
a
Bravo One and Two (Positioned Forward)
a-Trim-In Limit Insert
75158
a
Bravo Three (Positioned Aft)
a-Trim-In Limit Insert
IMPORTANT: The position of the Trim-In Limit Insert on the Bravo Three sterndrive
unit should only be changed after the boat has been properly tested. Contact the boat
manufacturer if you are not sure of the original position for a particular boat
application.
12. Insert the aft anchor pin through the hole in the drive shaft housing.
To Next Page
