REMOVAL, INSTALLATION AND ADJUSTMENTS SERVICE MANUAL NUMBER 28
Page 2A-30 90-863160 MAY 2000

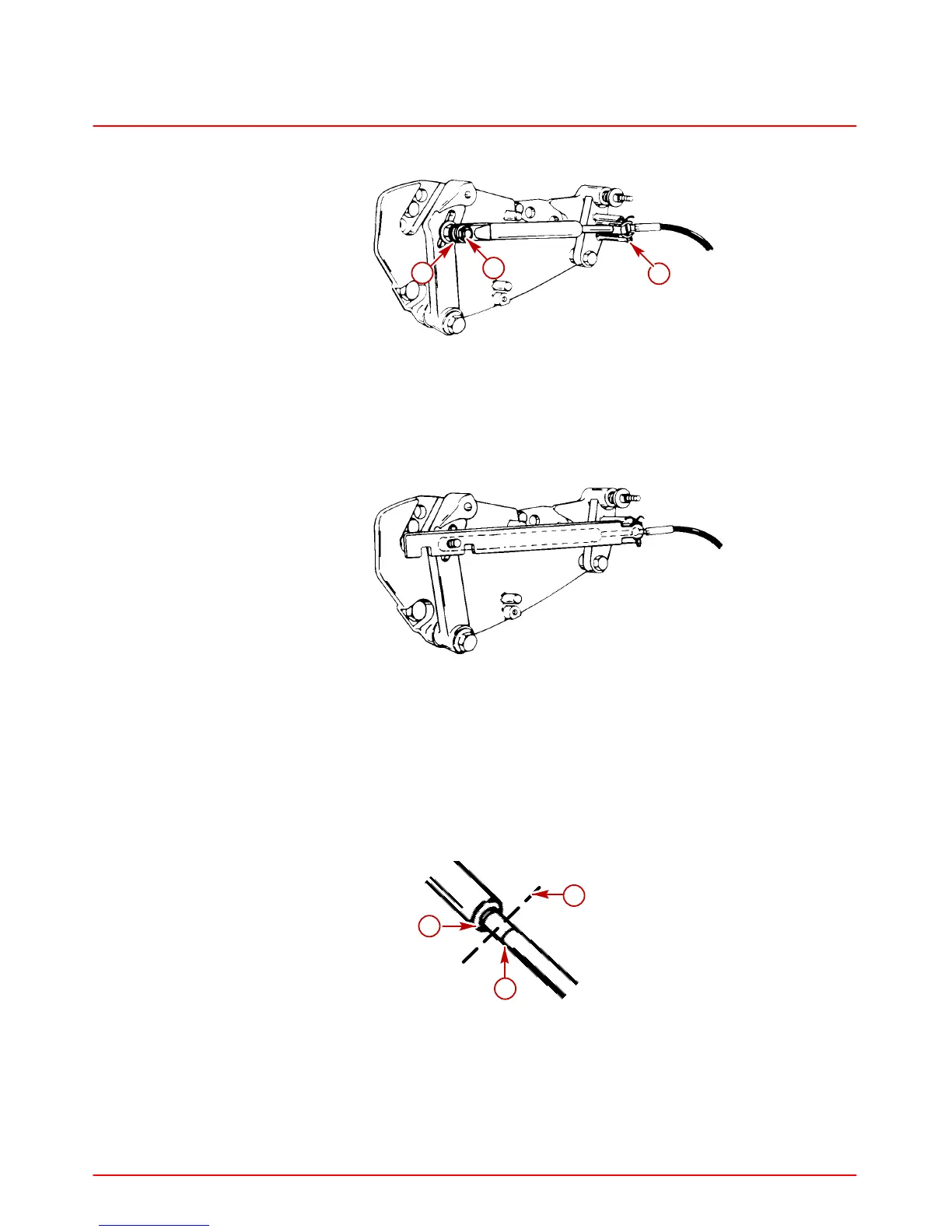

3. Install sterndrive unit shift cable.
71658
c
a
b
a-Washers (2)
b-Locknut-Tighten Until Contact, Then Loosen 1 Turn
c-Cotter Pin-Insert from Top and Spread Both Ends
4. Place adjustment tool over sterndrive unit shift cable, as shown. Hold tool in place over
the barrel retainer with a piece of tape.
71659
5. Locate center of remote control and control cable play (backlash).
a. Shift remote control to NEUTRAL.
b. Push in on control cable end with enough pressure to remove play, and mark
position “a” on tube.
c. Pull out on control cable end with enough pressure to remove play and mark position
“b” on tube.
d. Measure distance between marks “a” and “b”. Then, mark position “c” half-way
between marks “a” and “b.”
71656
c
a
b
IMPORTANT: Be sure to keep center mark “c” aligned with control cable end guide
edge when making the following adjustment.
To Next Page
