6. Adjust control cable as follows:
a. Temporarily install control cable end guide into shift lever and insert anchor pin.
b. Adjust control cable barrel so that hole in barrel centers with vertical centerline of
stud. Ensure that backlash center mark is aligned with edge of control cable end
guide.
CAUTION
DO NOT attempt to install or remove control cable barrel from stud, without first
removing end guide anchor pin from shift lever, and removing cable. Attempting to
bend control cable to install or remove barrel, will place undue stress on cable end
guide and shift lever, and damage to both could occur.
c. Remove control cable end guide from shift lever, by removing anchor pin.
71660
b
a
c
d
e

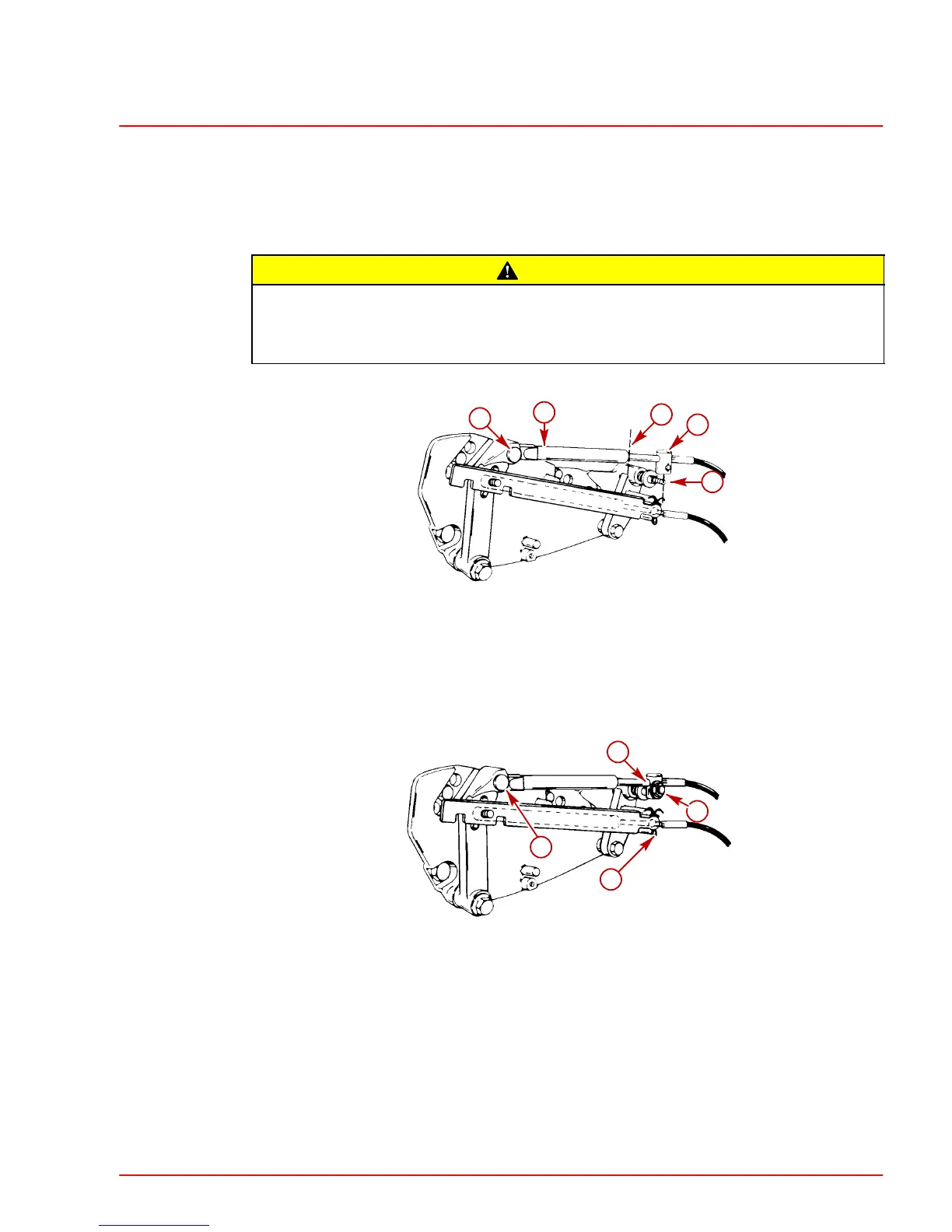

a-Control Cable End Guide
b-Anchor Pin
c-Backlash Center
d-Control Cable Barrel
e-Stud
7. Install control cable. Tighten locknut until it bottoms out. Spread both ends of cotter pin.
71661
a
a
c
d
b
a-Locknut
b-Washers-Both Sides of Barrel
c-Anchor Pin
d-Cotter Pin
8. Remove adjustment tool.
