Oce plotwave 345 User Manual

The Hardware

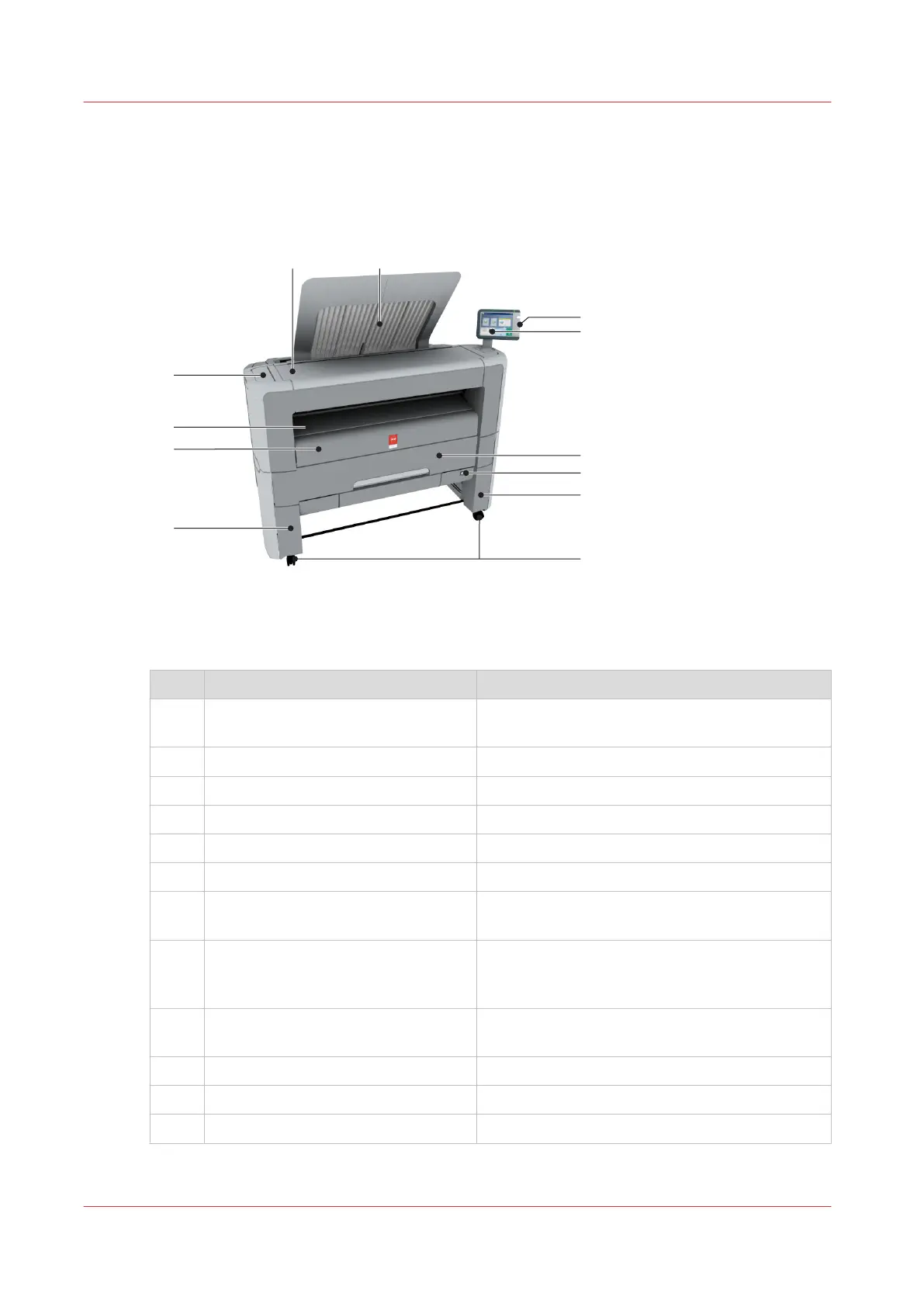

The components of the printer (front)
8
7
1
2
3
4
9
10
11
12
65
Component - function table
No. Component Description / Function
1 [lower left front cover] Remove this cover when you want to move the
printer.
2 [lower front cover] Located at the front, used for error recovery.
3 [media bypass] To manually feed cut-sheets up to 36" width.
4 [toner compartment] Compartment to refill toner.
5 [printer top cover] Only available in printer-only version.
6 [top delivery tray] Delivery tray that collects the printed sheets.
7 USB port USB connector to use a USB mass storage de-
vice to print from or to scan to.
8 Océ ClearConnect: multi-touch [user
panel]
The Océ ClearConnect user panel allows the user
to start copy, scan, or print jobs, and to monitor
the system and the job status.
9 [media drawer] Media drawer that contains the media roll 1
and/or 2.
10 [on / off button] Button to start or shut down the printer.
11 / B [lower right front cover] Located at the front, used to level the printer.
12 [wheel] Swivel wheel with brakes.
The Hardware
22
Chapter 2 - Get to Know the Printing System

Oce plotwave 345 Specifications

General

Resolution	600 x 1200 dpi
Memory	4 GB
Hard Drive	500 GB
Print Technology	Electrophotography LED
Print Speed	6 A1/D prints per minute
Media Handling	Rolls
Maximum Media Width	36 inches
Technology	Océ Radiant Fusing
Media Width	Up to 36 inches
Roll Capacity	Up to 2 rolls
Media Length	Up to 18.3 m (60 ft)
