Load a media roll (position 1)

Introduction

You can load your media in the front of the drawer on position 1, or in the back of the drawer on

position 2.

NOTE

• To spare your back, it is advised to load an A0 or E-size media roll on position 1 and an A2 or

C-size media roll on position 2.

• To improve productivity, it is advised to load the most used media in the upper drawer.

CAUTION

Watch your fingers when you handle the media roll.

Procedure

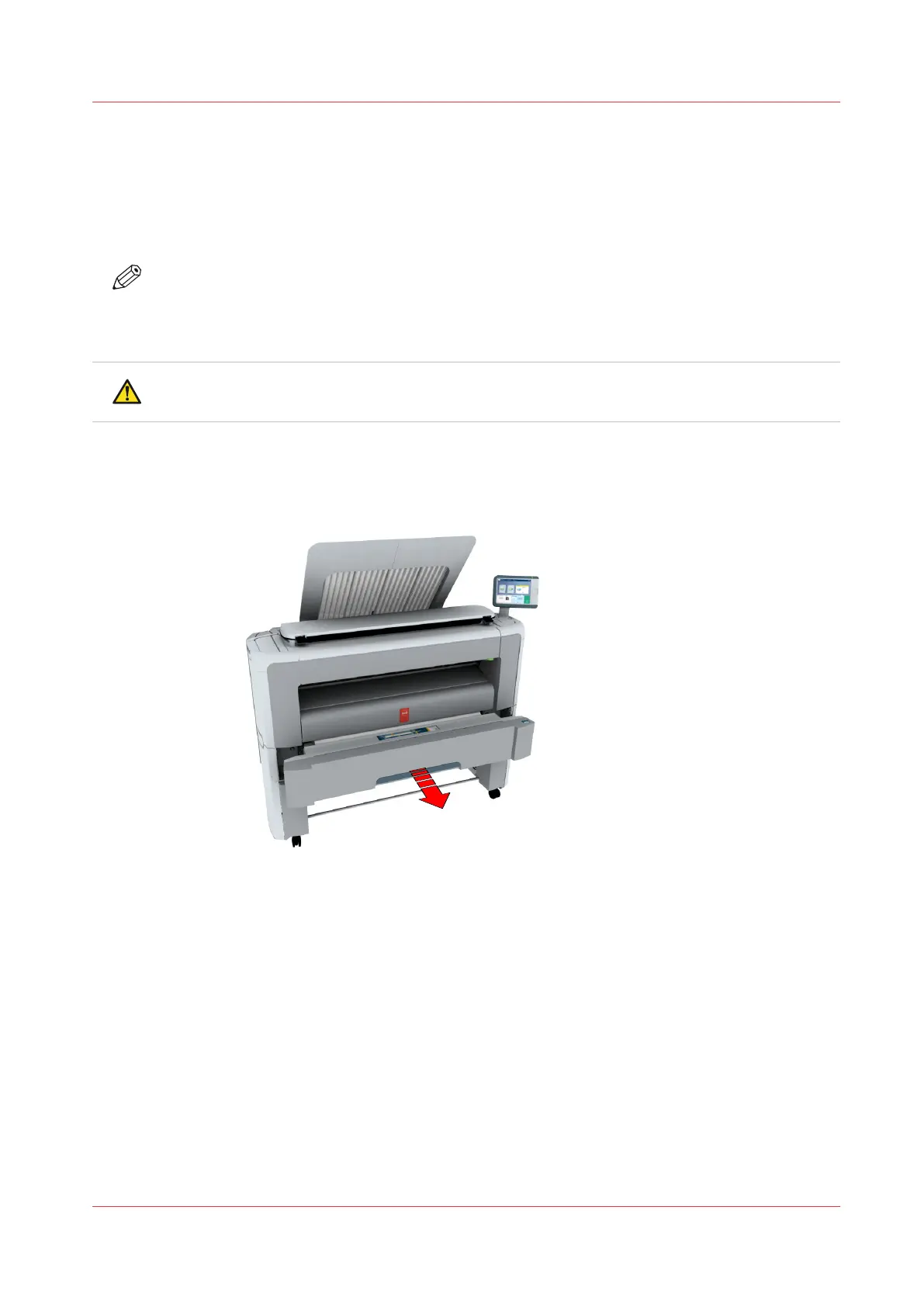

Pull firmly to open the media drawer.

Place the new media roll on the roll loading station.

Pull (1) the handle of the roll holder locking mechanism toward you.

Slide (2) the roll holder into the right side of the core of the new media roll.

Load a media roll (position 1)

Chapter 5 - Maintain the Printing System

229
