Oce plotwave 345 User Manual

3.

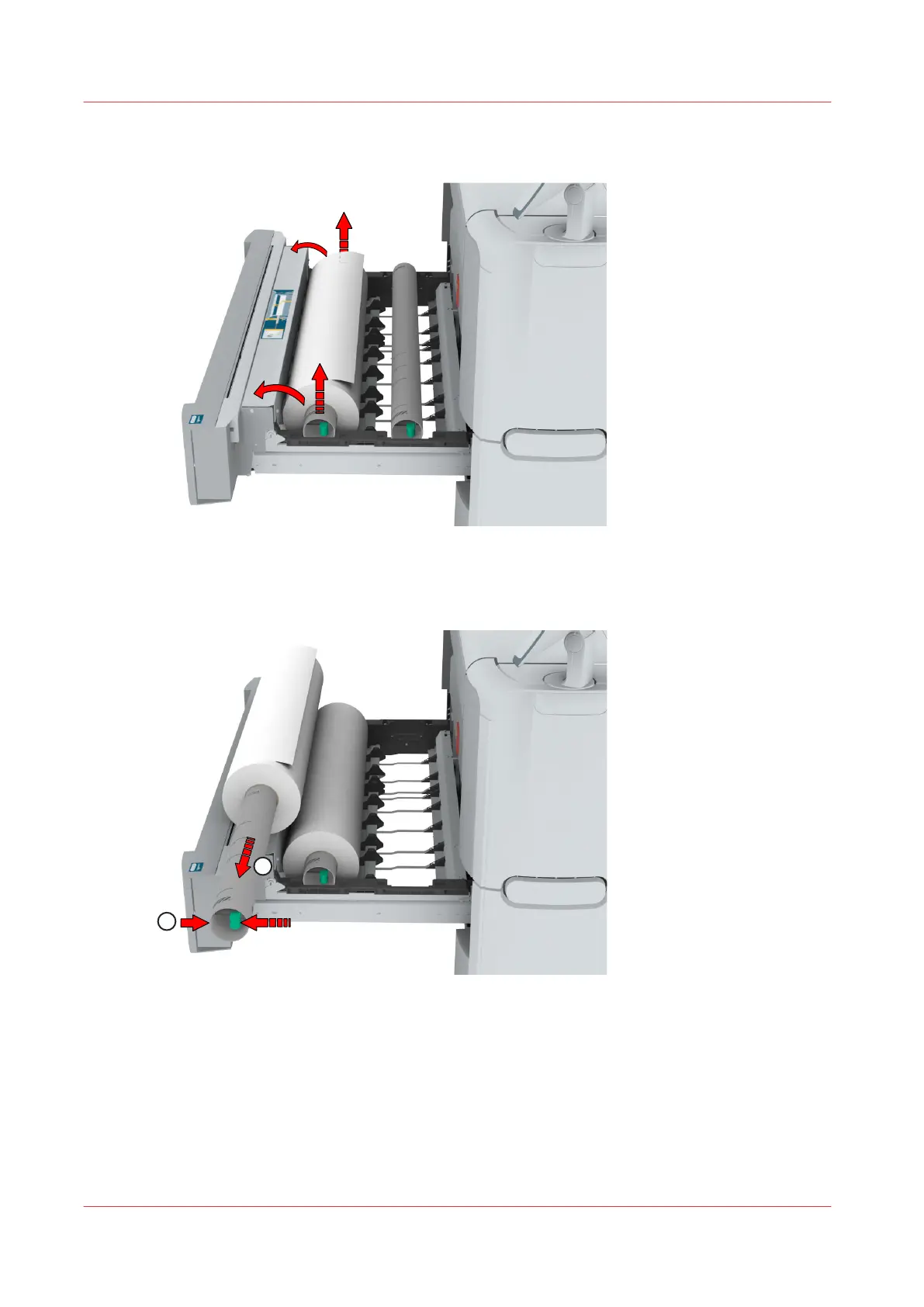

Use both hands (as indicated) to lift the roll holder with the media roll and put it on the roll
loading station.
4.
Pull the handle of the roll holder locking mechanism towards you and remove the roll holder
from the core of the media roll.
Put the empty roll holder back into the drawer (as shown in the illustrations)
1
2
5.
Remove the media roll from the roll loading station.
Store it in a safe place, so that it cannot fall over or roll away.
Remove a media roll
226
Chapter 5 - Maintain the Printing System

Oce plotwave 345 Specifications

General

Resolution	600 x 1200 dpi
Memory	4 GB
Hard Drive	500 GB
Print Technology	Electrophotography LED
Print Speed	6 A1/D prints per minute
Media Handling	Rolls
Maximum Media Width	36 inches
Technology	Océ Radiant Fusing
Media Width	Up to 36 inches
Roll Capacity	Up to 2 rolls
Media Length	Up to 18.3 m (60 ft)
