Setting the Output Conditions
228
ZW-7000/5000
User's Manual
Setting a Trigger Delay
Setting a Trigger Delay p.151
Operating procedure

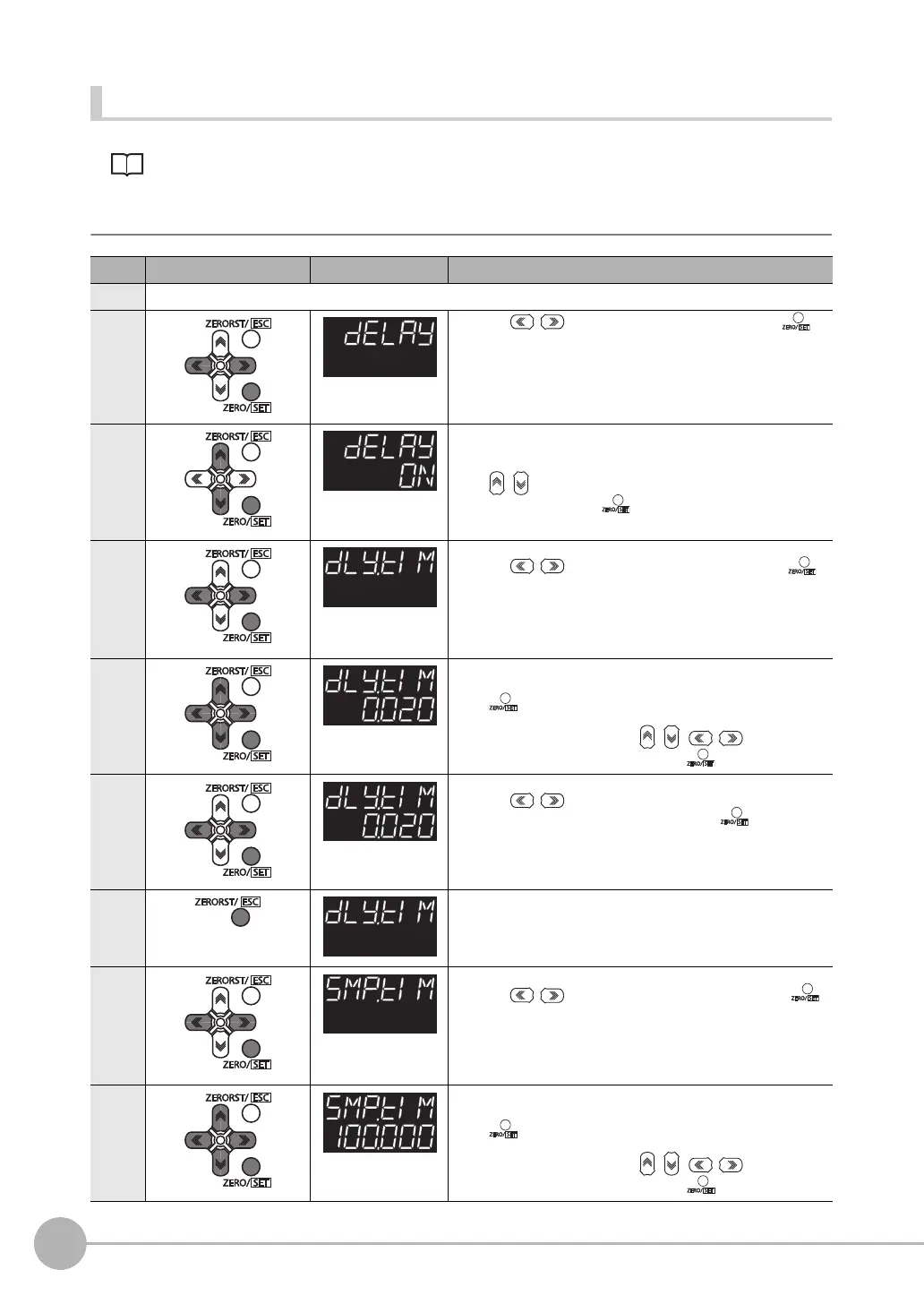

Steps Key operation Display Description
1 to 5 For moving to “HOLD”, see steps 1 to 5 in p.225.
6 Press the / keys to select “DELAY” and press the
key.
7 Enable the delay.
“DELAY” is displayed on the main display and the current setting
value is
displayed on the sub-display.
Press / key to enter editing mode and the sub-display blinks.
Select “ON” and press the
key.
8 Select the delay time.
Press the / keys to select “DLY.TIM” and press the
key.
9 Set the delay time.
The current setting value is displayed on the sub-display.
Press key to enter the editing mode, and the sub-display
blinks.
To edit numerical values, use the / / / keys.
In this example, input “10”, then press the
key.
10 The decimal point is displayed.
Press the / key to move the decimal point.
Determine the decimal point and then press the
key.
11 Press the key to return to the previous menu.
12 Select the sampling time.
Press the / keys to select “SMP.TIM” and press the
key.
13 Set the sampling time.
The current setting value is displayed on the sub-display.
Press key to enter the editing mode, and the sub-display
blinks.
To edit numerical values, use the / / / keys.
In this example, input “10”, then press the key.
