Names and Functions of Parts
Cha
p
ter 1

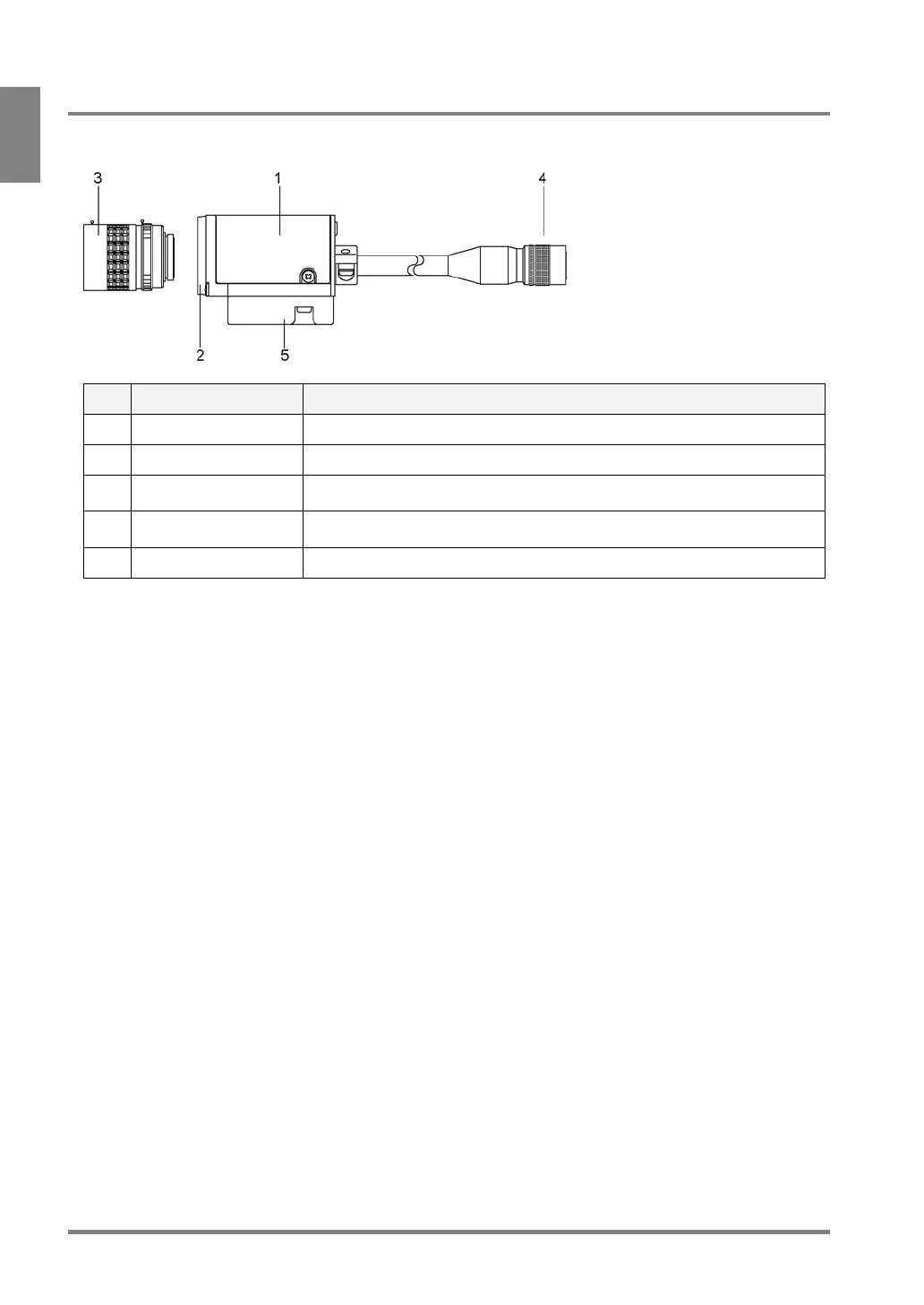

1.2.3 Standard Camera: ANM832
This camera is usable when the camera setting of PV310 is [Normal Frame] or [Normal Field].
No. Name Description
1 Camera Body of camera
2 Lens fixture CS-mount
3 Lens
Attach a C/CS-mount lens with adapter rings as necessary. Refer to page 22 for
selecting view range and lens.
4 Connector
Connects to PV310.
Use a designated camera extension cable if necessary.
5 Mounting plate A plate to mount a camera. The plate insulates with the mounting surface.
