8.6.4 “Automatic Switch” Execution Mode
Blocks of inspection execution
The data of the checkers, Numeric Calculation formulas and Judgment formulas stored in each product type are
divided into three blocks in numeric order. Each block is called a “block 1”, “block 2, or “block 3”.
Block Checker
Numeric
Calculation
Judgment
1 No.1 – 32 CA01 – CA32 JD01 – JD32
2 No.33 – 64 CA33 – CA64 JD33 – JD64
3 No.65 – 99 CA65 – CA96 JD65 – JD96
After the block 1 was executed, if the result of JD32 of block 1 is judged as OK, then block 2 is executed. If the
result of block 1 is judged as NG, then block 3 is executed.

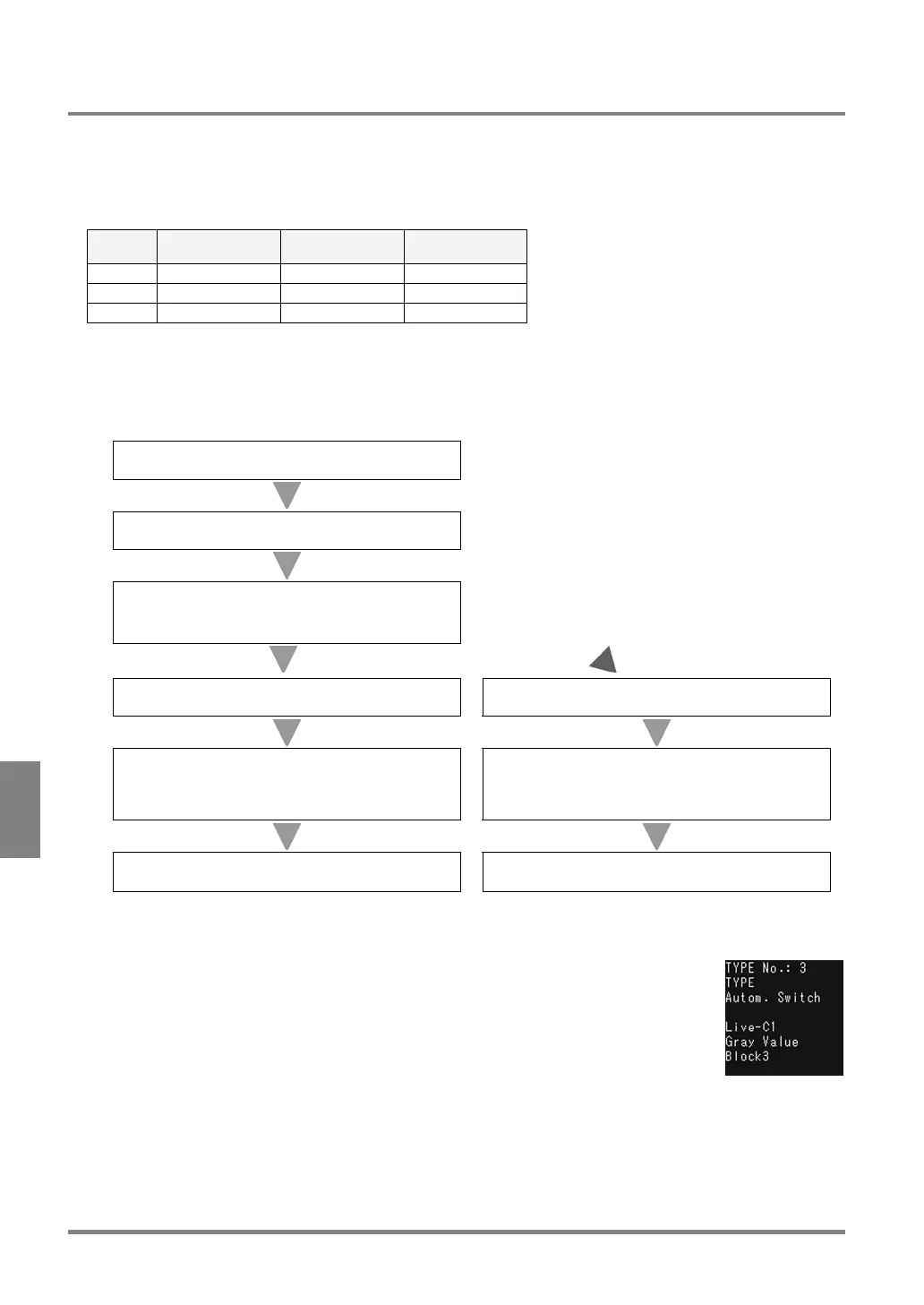

Execution order
Inspection start
Execution of block 1
Output of the result of Judgment formula JD32
Judged as OK
Judged as NG
Execution of block 2 Execution of block 3
Execution of statistics
(Only the checkers, Numeric Calculation formulas or
Judgment formulas of blocks 1 and 2 that are set as
“objects” are executed.)
Execution of statistics
(Only the checkers, Numeric Calculation formulas or
Judgment formulas of blocks 1 and 3 that are set as
“objects” are executed.)
Output of the result
(Block 2 and Statistics data)
Output of the result
(Block 3 and Statistics data)
To check the number of the last executed block:
The number of the block that was executed last is displayed in the status display area.
