• Turn the PV310 off before attaching the wires, mounting or removing the terminal block.
• Do not use a soldered wire, because vibrations caused by the PV310 may damage to the wire.

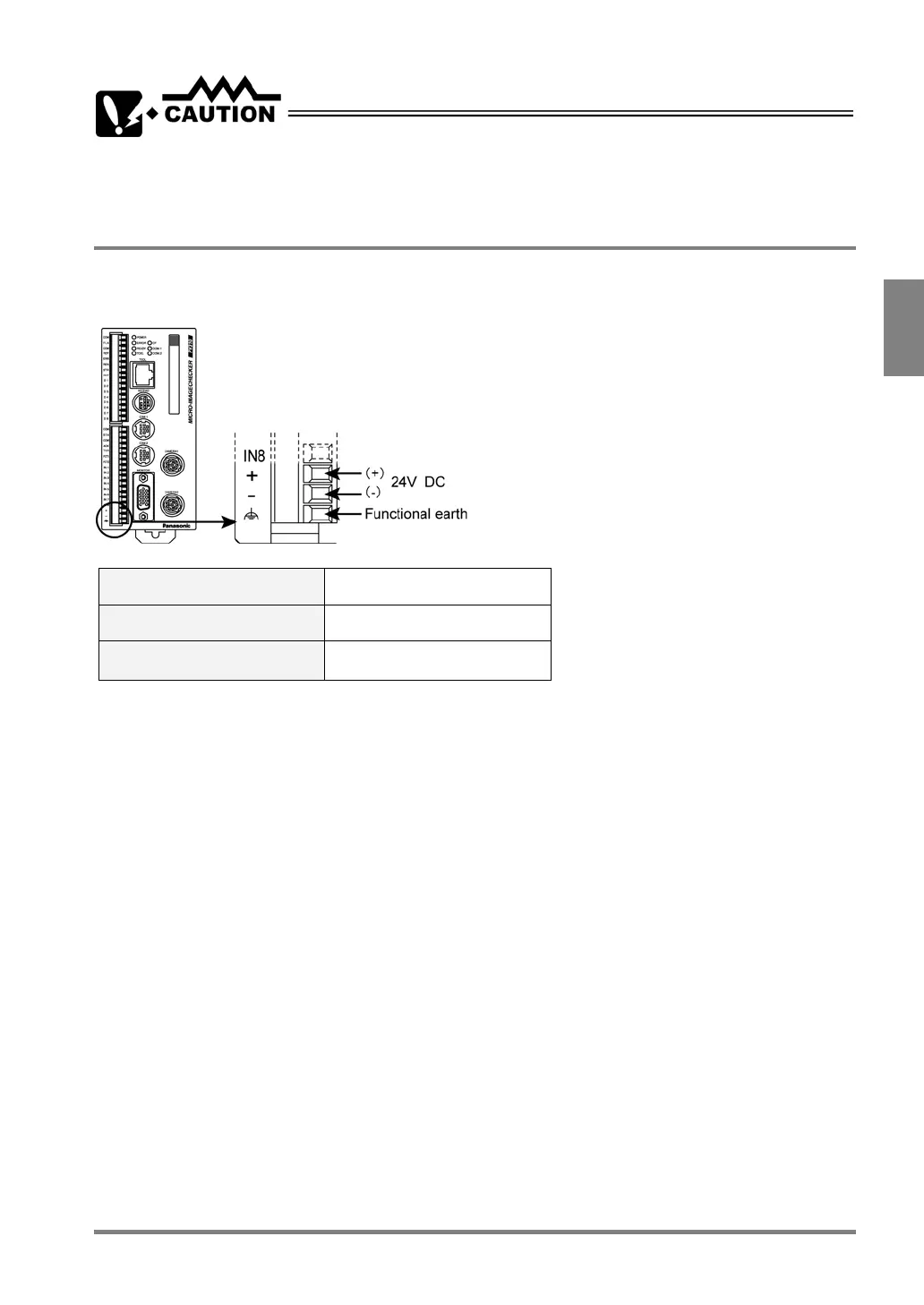

3.1.2 Pin Assignments
24V DC electric power is supplied through the +/- terminals on the input terminal block. Twist the electric wires for
noise reduction.
Rated Voltage 24V DC
Tolerance Voltage Range 21.6 to 26.4V DC
Rated Consumption Current 1 camera: 0.9A or less
2 cameras: 1.1A or less
