6.23.2 Saving a Base Position
The procedure for saving the current object position as a base position is described below. Before saving a base
position, set inspection conditions first and check to make sure that the object was detected after testing. When a
live image is displayed, a base position is saved after capturing a new image. When a memory image is
displayed, the current memory image is saved as a base position without capturing any image.
Registration Procedure:
1. Select the "Base Position" tab.
The cursor moves to "Base Position".
2. Press the ENTER key.

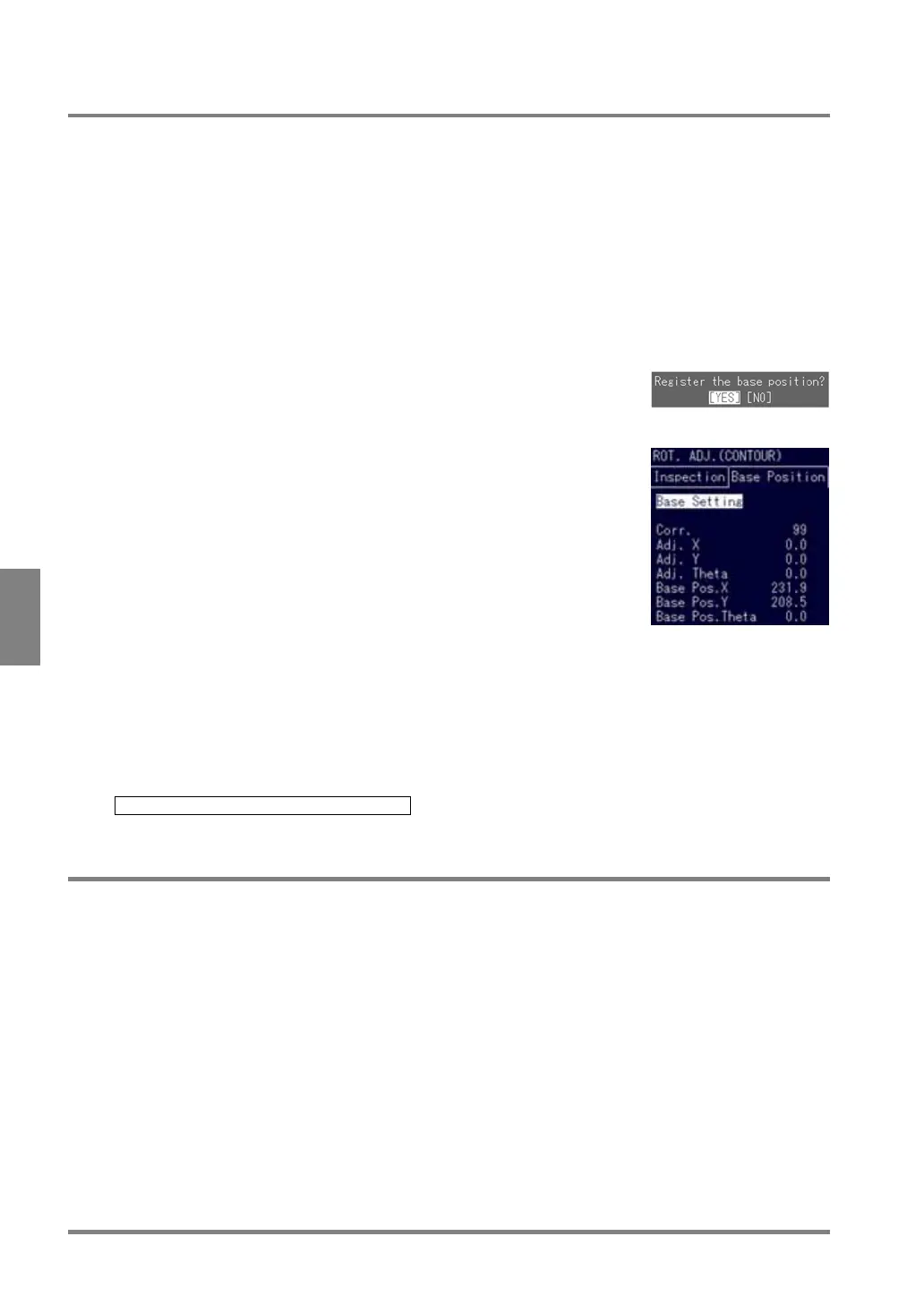

When the dialog message shown below appears, choose "YES" to
continue.
If the object was detected and the base position was saved, the following data will appear.
Under the Base Position tab:
- Corr.: Similarity degree of the currently detected image and the
template
- Adj. X: 0.0
- Adj. Y: 0.0
- Adj. Theta: 0.0
- Base Position X:
Coordinate X of output point of the currently detected image
- Base Position Y:
Coordinate Y of output point of the currently detected image
- Base Pos. Theta: Theta angle of the currently detected image
In the Message area:
Judgment: OK
Corr.: Similarity degree of the currently detected image and the template
Adj. XX: 0.0
Adj. Y: 0.0
Adj. Theta: 0.0
If the PV310 failed to detect object, the following message appears. Check the template image, size of
search area, etc.
E0042 Base position cannot be detected.
6.23.3 What To Do If You Faced a Trouble
Judgment result is always NG.
This is attributed to the following causes.
An object could not be detected.
Recheck and reconsider the area size and the sequence setting values.
No base position is saved.
The error code "E0049" may be displayed. Since any base position is not saved, the PV310 cannot work
properly. Note that if you do the followings after saving it, you need to save the base position again.
Position Adjustment checker that refers to adjustment amount cannot detect the object.
If Position Adjustment is saved as any number except "0", the adjustment amount of Position Adjustment
or Rotation Adjustment that is saved as the number is referred. If the Position Adjustment or Rotation
Adjustment checker failed to refer to the adjustment amount, it cannot detect the object. The PV310 does
not function properly and outputs "NG" result.
