Panasonic Micro-Imagechecker PV310

To Next Page

To Previous Page

340

Dimensions

Cha

ter 19

PV310

Unit: mm

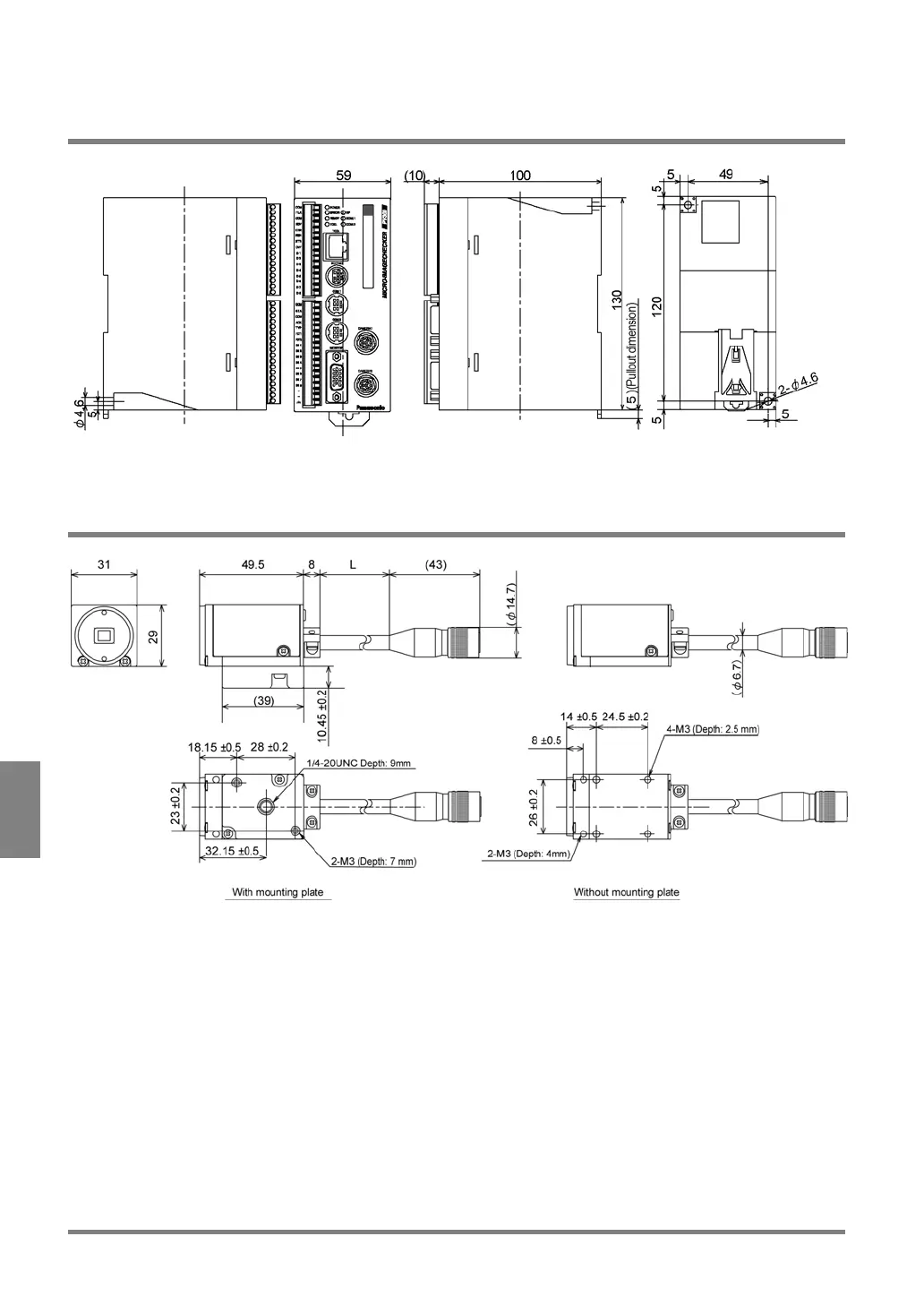

Standard Camera (CS-Mount): ANM832XX

Unit: mm

• L: Cable length - varies depending on product numbers.

• ANM832: L=3000 (+80 -10) mm

• ANM832CE: L=2780 (+80 -10) mm

• ANM83203: L=300 mm
