VessRAID 1000i Series Product Manual
100

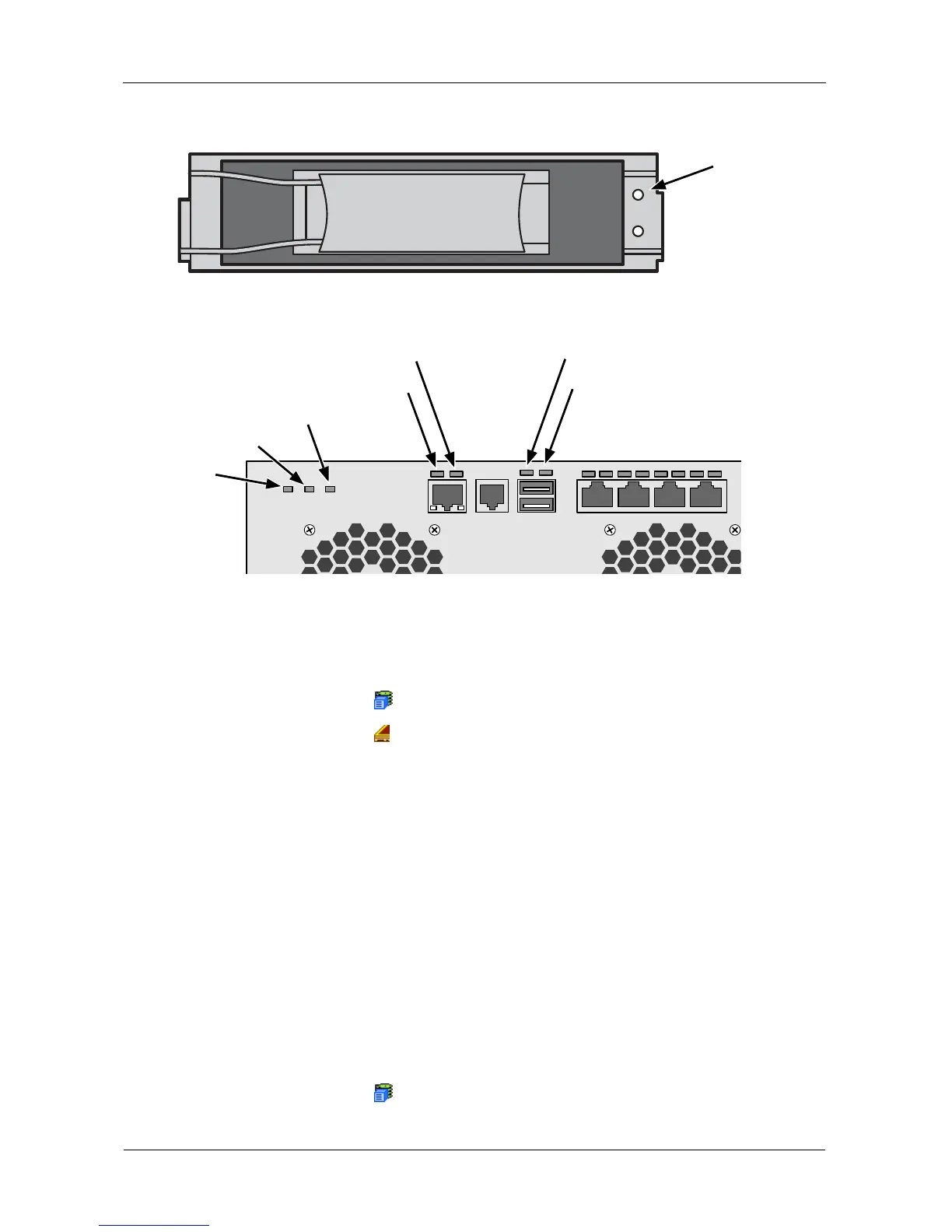

Figure 6. Disk Status LED
Figure 7. VessRAID enclosure LEDs
Viewing Enclosure Topology
To view Enclosure Topology:
1. Click the Subsystem icon in Tree View.
2. Click the Enclosures icon.
3. Click the Topology tab in Management View.
Enclosure topology refers to the manner in which the data paths among the
enclosures are connected:
• Individual Subsystem – One VessRAID subsystem
• JBOD Expansion – One VessRAID subsystem plus one or more VessJBOD
expansion subsystems, managed through the VessRAID or head unit
The logical connections for these arrangements are shown the Enclosure
Topology tab. The physical connections for these arrangements are discussed in
“Chapter 2: VessRAID Installation” on page 9.
Viewing Enclosure Information
To view enclosure information:
1. Click the Subsystem icon in Tree View.
Disk Status
Controller Status
Fan 2
Fan 1
Battery
USB 2
USB 1
Dirty Cache
