Setting up with the LCD
The LCD Panel displays the current IP address during normal operation. If you
did not install the LCD Panel, see “Installing the LCD Panel (Optional)” on
page 11. The LCD does not have a date and time function.

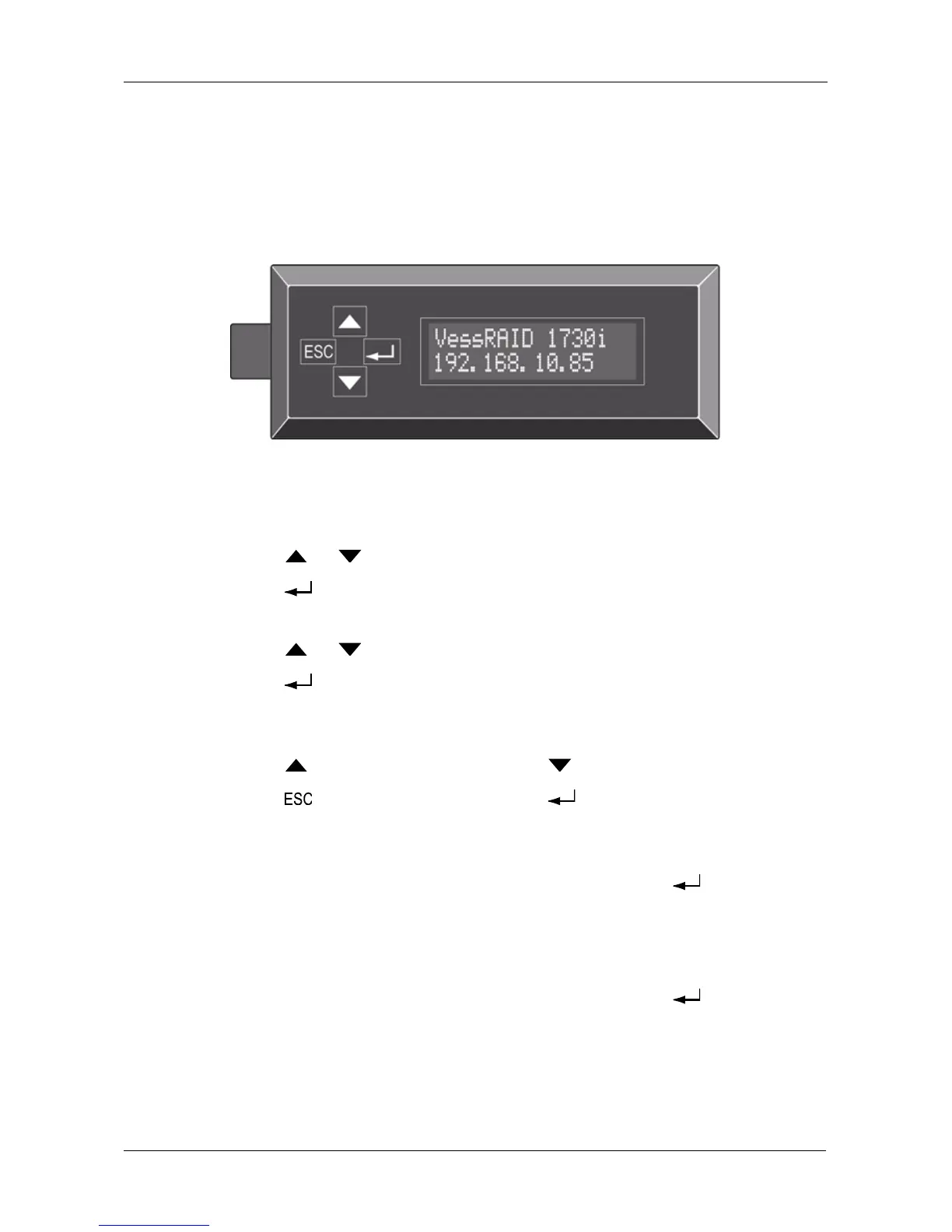

Figure 3. LCD Panel default view
Making Manual IP Settings
To make Management Port settings manually:
1. Press the or button until the display says Management Port.
2. Press the button and the display says Link Status Up.
If it says Link Status Down, reconnect to the network before preceding.
3. Press the or button and the display says IP Address.
4. Press the button to make a change.
The current IP Address displays with the cursor under the first (extreme left)
digit.
5. Press the button to increment and the button decrement.
Press the button to move left and the button move right.
To set an IP address with double- or single-digit octets, for example,
192.168.1.50, type zeros as placeholders, 192.168.001.050.
After you have set the last (extreme right) digit, press the button.
The current Subnet Mask displays with the cursor under the first (extreme
left) digit.
6. Make the needed changes the same as in step 5.
After you have set the last (extreme right) digit, press the button.
The current Gateway displays with the cursor under the first (extreme left)
digit.
To Next Page
