Chapter 9: Troubleshooting
279
When the Global Enclosure LED on VessRAID’s front panel shows Amber or
Red, check the LEDs on the back of VessRAID. These LEDs give the status of
individual components. See page 281, Figure 5.
Disk Drive LEDs
There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive’s current condition.

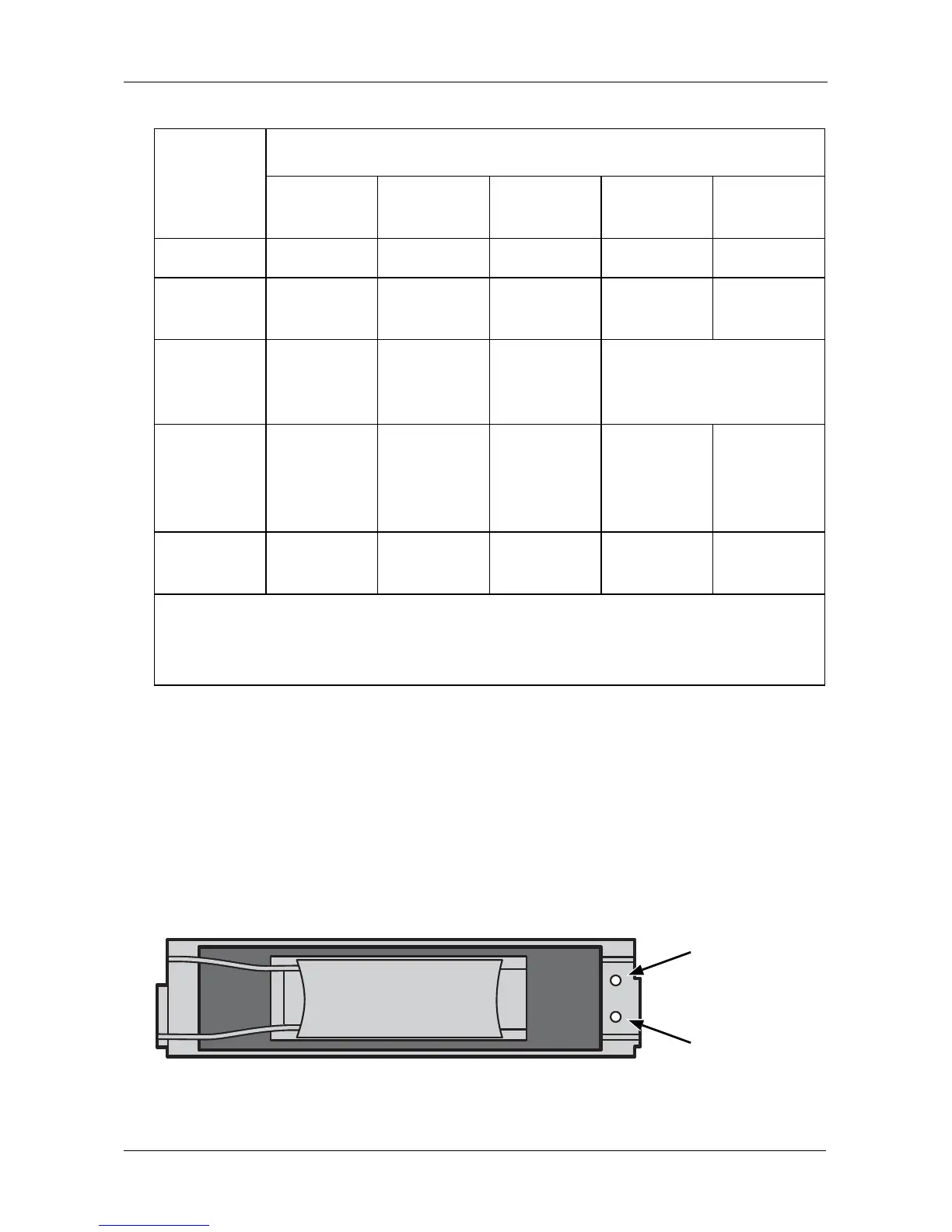

Figure 3. VessRAID disk drive carrier LEDs
LEDs
State
Dark
Steady
Green
Flashing
Green
Amber Red
Power System Off Normal — — —
Global RAID
Status
System Off Normal —
Logical
Drive Critical
Logical
Drive Offline
Global
Enclosure
Status
System Off Normal
Locating the
Enclosure
Fan, battery, power
supply, temperature, or
voltage problem*
Controller
Activity
System Off
or no iSCSI
ports
connected
One or more
iSCSI ports
connected
Activity — —
Controller
Heartbeat
System Off — Normal* — —
* Check the LEDs on the back of the enclosure for more information.
** Blinks blinks green seven times in three seconds, goes dark for six seconds,
then repeats the pattern.
Disk Status
Power/Activity
