Promise Technology VessRAID 1720i User Manual

Chapter 2: VessRAID Installation
15
Installing Disk Drives
You can populate the VessRAID with SAS or SATA hard disk drives. For optimal
performance, install physical drives of the same model and capacity. The drives’
matched performance allows the logical drive to function better as a single drive.
The table below shows the number of drives required for each RAID level.
Drive Slot Numbering
You can install any suitable disk drive into any slot in the enclosure. The
diagrams below show how VessRAID’s drive slots are numbered. Slot numbering
is reflected in the WebPAM PROe and CLU user interfaces.

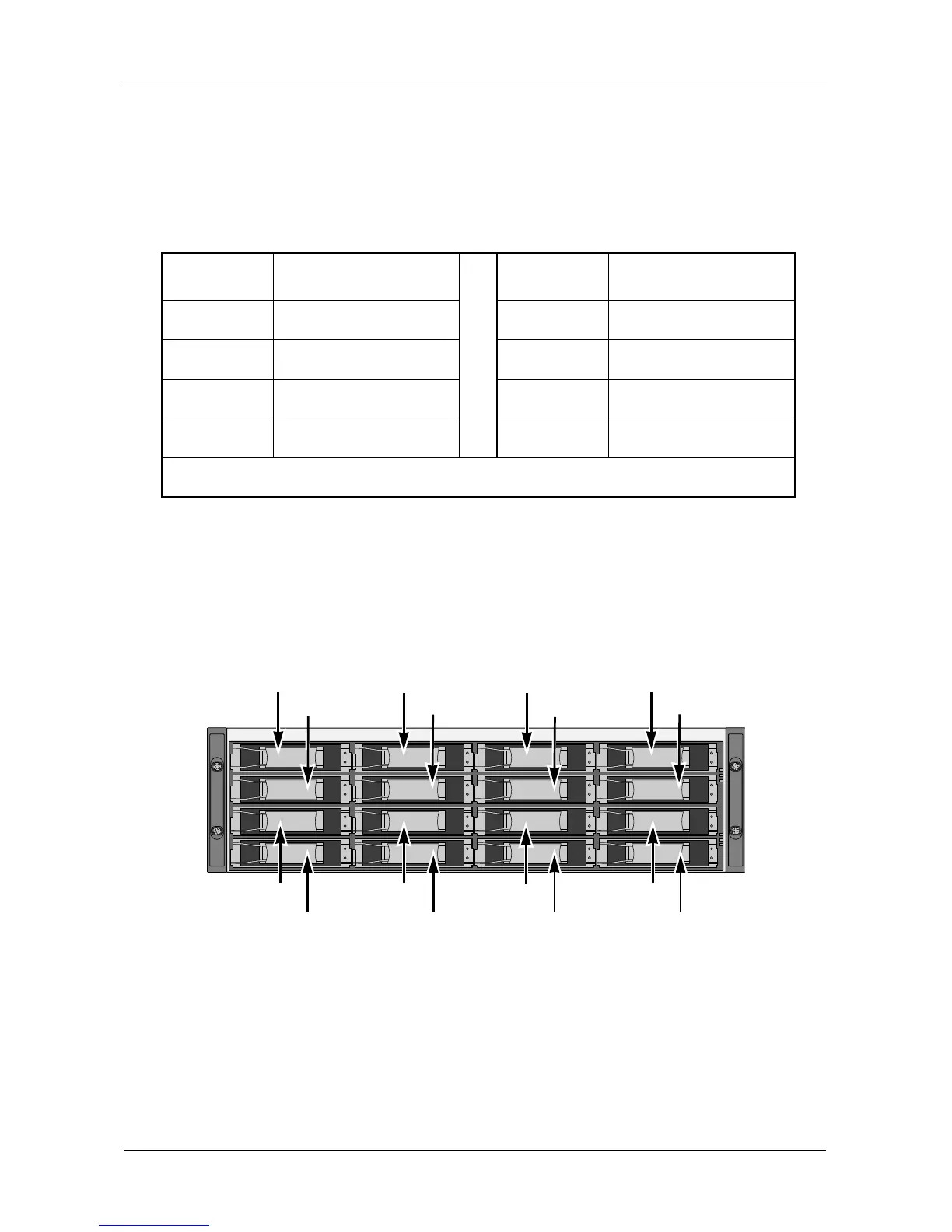

Figure 8. VessRAID 1740i and 1840i drive slot numbering
Level Number of Drives Level Number of Drives
RAID 0 1 or more RAID 6 4 to 32
RAID 1 2 only RAID 10 4 or more*
RAID 1E 2 or more RAID 50 6 or more
RAID 5 3 to 32 RAID 60 8 or more
* Must be an even number of drives.
8
6
5
1
23
4
7
13
14
15
16
910
11
12
