VessRAID 1000i Series Product Manual
140
Initial Connection
Making an initial connection includes the following functions:
• Making a Serial Connection (below)
• Making a Telnet Connection (page 141)
• Logging In (page 141)
• Accessing Online Help (page 143)
• Exiting the CLU (page 143)
• Logging Out of the CLI (page 143)
• Logging Back Into the CLI and CLU (page 143)
Making a Serial Connection
Before you begin, be sure the RJ11-to-DB9 serial data cable is connected
between the Host PC and VessRAID, and that both machines are booted and
running.

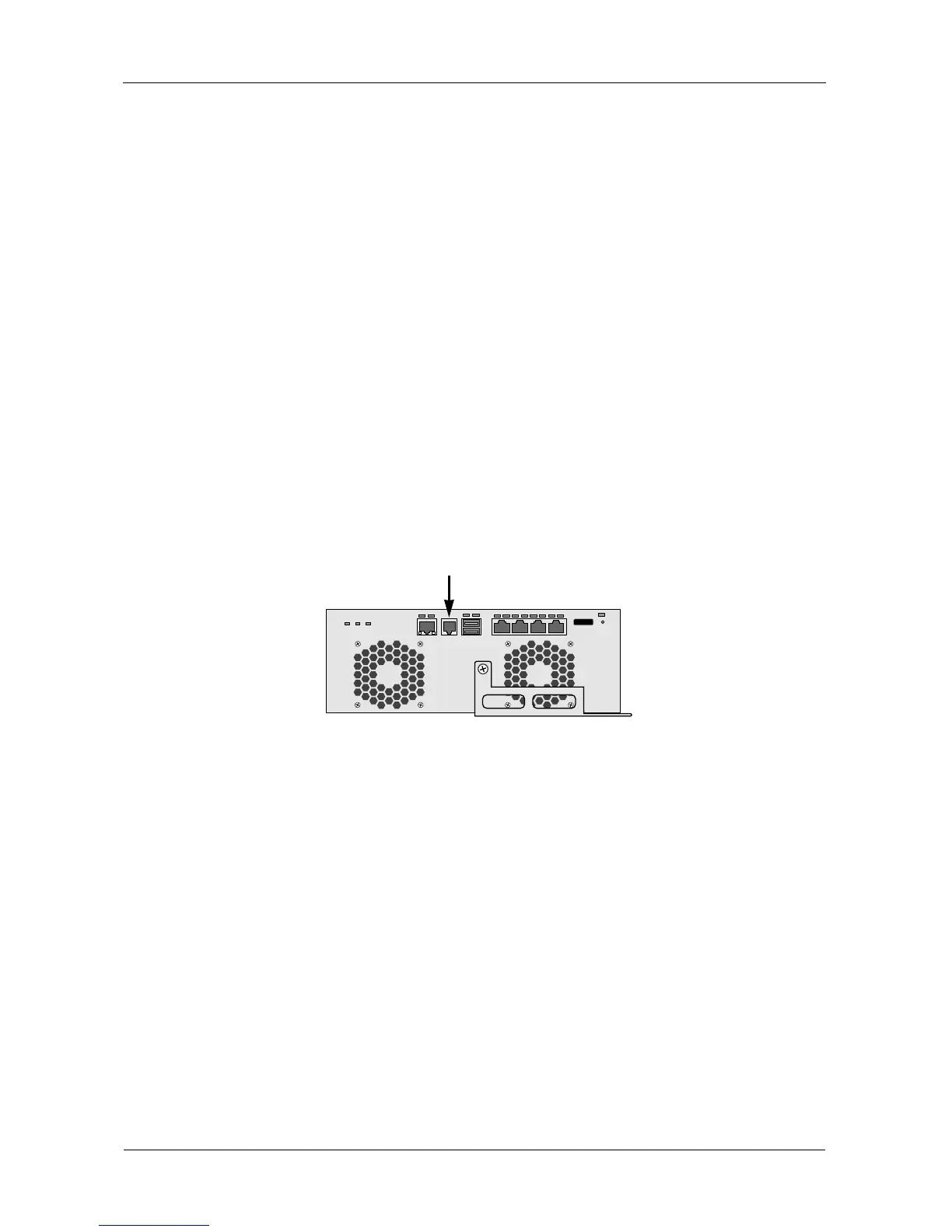

Figure 1. Serial port on the controller
Then do the following actions:
1. Change your terminal emulation program settings to match the following
specifications:
• Bits per second: 115200
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: none
2. Start your PC’s terminal VT100 or ANSI emulation program.
3. Press Enter once to launch the CLI.
Serial port
