Chapter 2: VessRAID Installation
25
Controller LEDs
When boot-up is finished and the VessRAID subsystem is functioning normally:
• Battery and Controller status LEDs display green continuously.
• Ethernet LEDs display green or flash depending on your network
connection.
• iSCSI LEDs display green or flash depending on your data network activity.

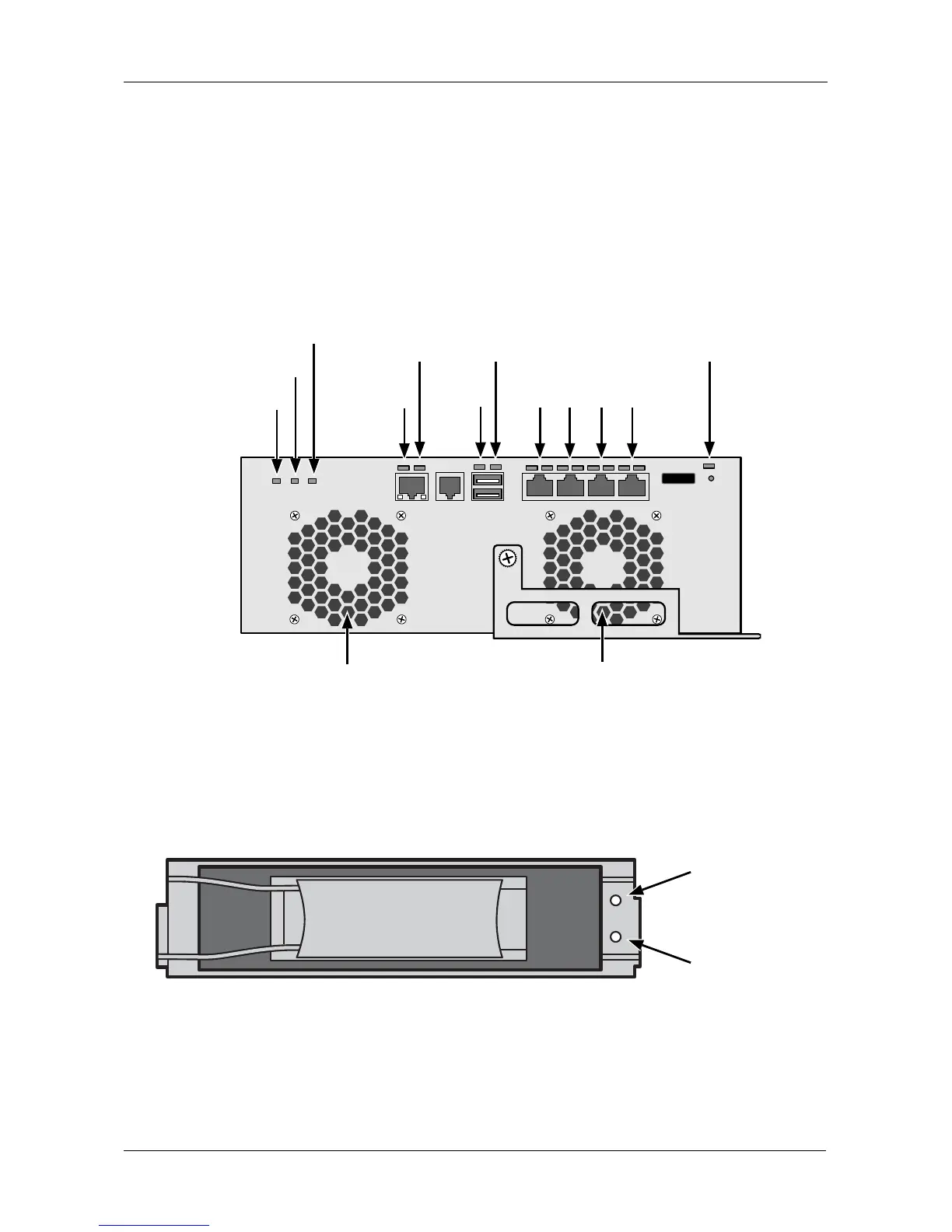

Figure 17.VessRAID Controller LEDs
Disk Drive LEDs
There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive’s current condition.
Figure 18.VessRAID disk drive carrier LEDs
If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark. The Power/Activity LED flashes during
drive activity.
The Disk Status LED displays Green when a drive is configured.
Controller
Status
Fan 2
Fan 1
Battery
USB 2
USB 1
Dirty
Cache
JBOD Expansion Port
16- and 12-bay models
iSCSI Ports
1234
Fan 1
Fan 2
Disk Status
Power/Activity
