VessRAID 1000i Series Product Manual
24
Connecting the Power
Plug-in the power cord on the power supply on the back of the VessRAID
enclosure and switch on the power supply. If you have a redundant power supply,
plug-in both power supplies and turn on both power supplies.
When the power is switched on, the LEDs and LCD screen light up.
Front Panel LEDs
When boot-up is finished and the VessRAID subsystem is functioning normally:
• Power, Global Enclosure Status, and Global RAID Status LEDs display
green continuously.
• Controller Activity LED flashes green when there is controller activity.
• System Heartbeat LED blinks green seven times in three seconds, goes
dark for six seconds, then repeats the pattern.

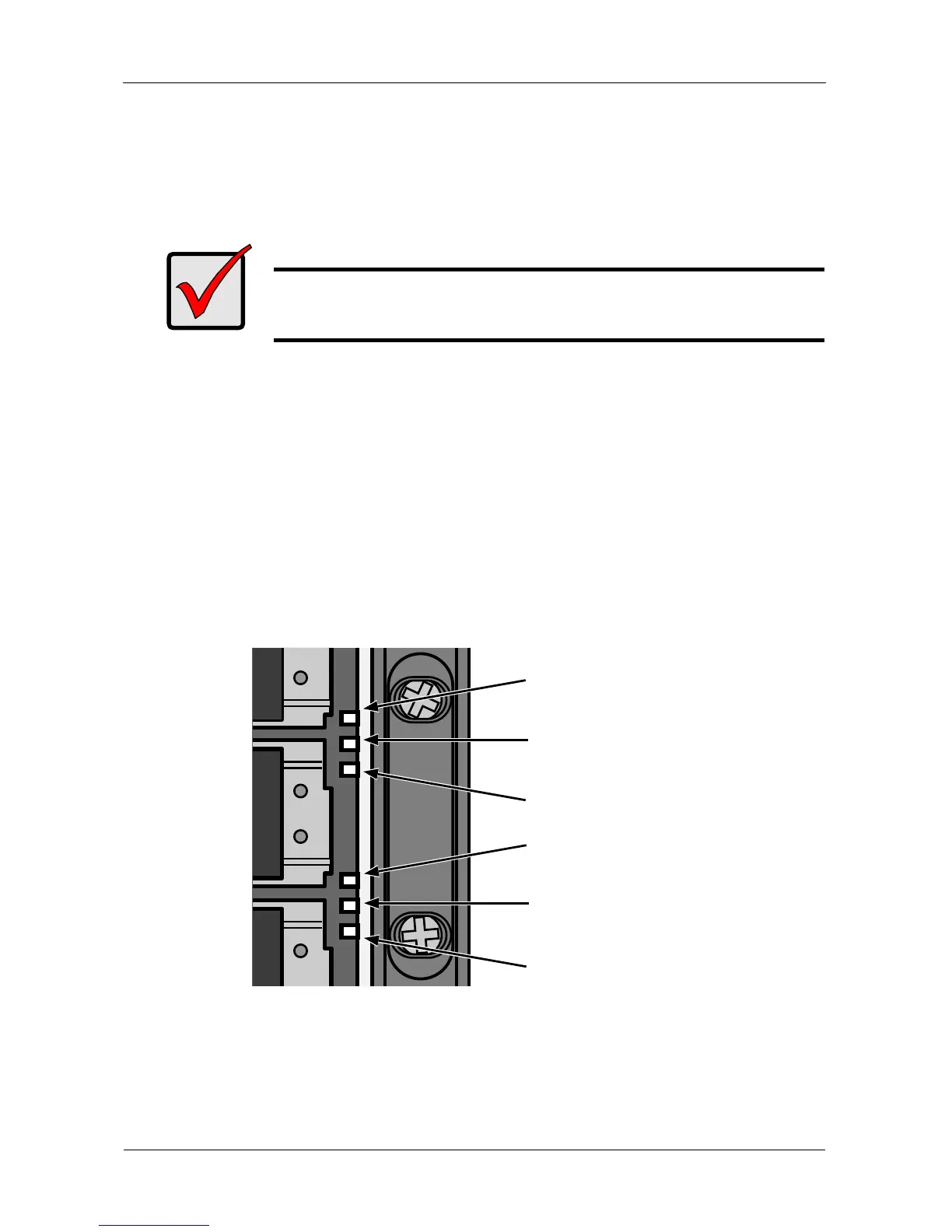

Figure 16.VessRAID front panel LED display
Important
If you have a JBOD Expansion, always power on the JBOD
subsystems first.
Power
Controller Activity
Global Enclosure Status
Global RAID Status
Reserved
System Heartbeat
