6. Place the VessRAID subsystem onto the rails.
7. Secure the VessRAID subsystem to the rack through each handle, using the
attaching screws from your rack system.

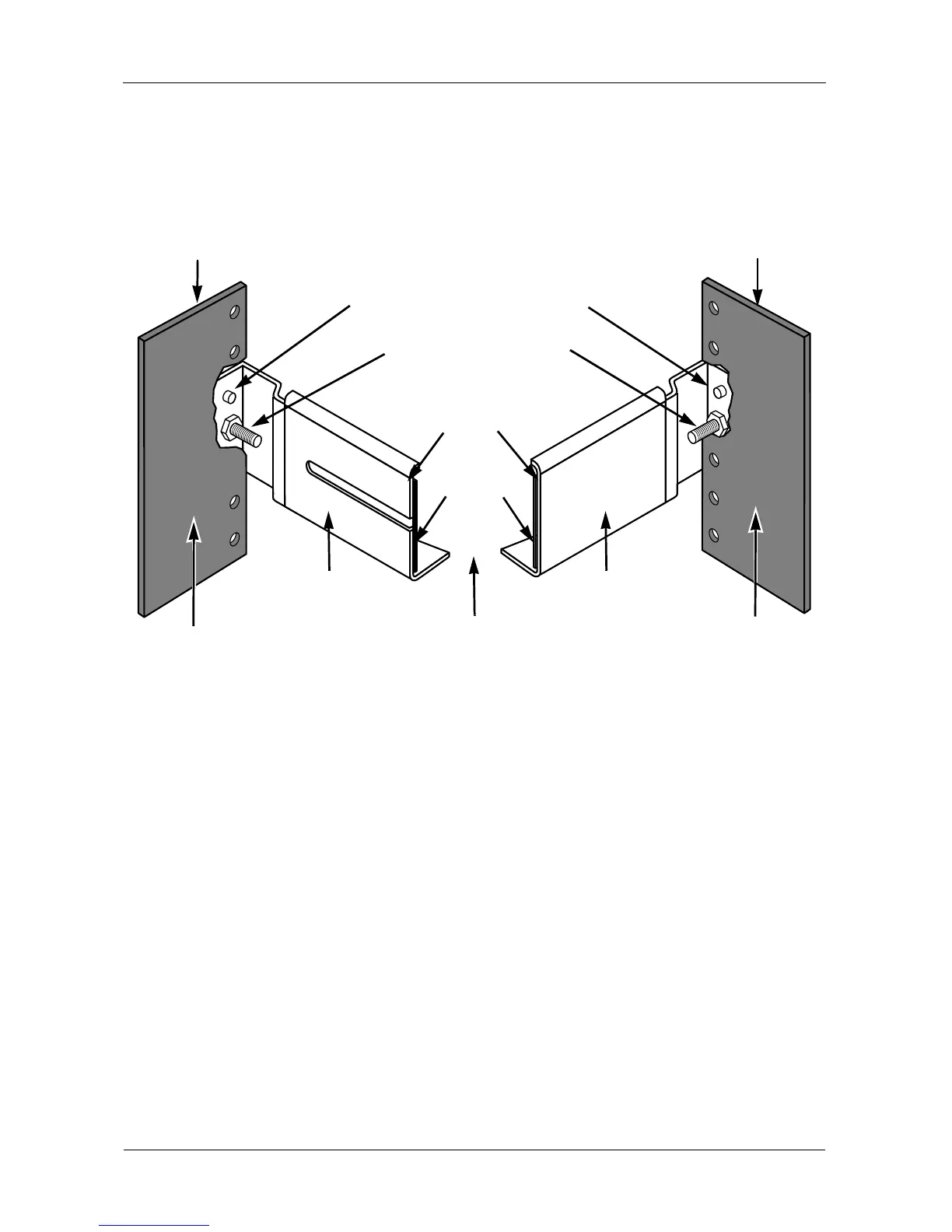

Figure 7. Rack mount assembly diagram
This completes rack mounting.
Inside of post
Rack front post
Rail attaching screws
(not included)
Rail adjustment screw
(center, outside of rail)
Flange
Inside of post
Rack back post
Front rail
Rear rail
Support
Locating pins (2 on each end)
