R&S ZVB - Page 404

R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
Channel Menu
Operating Manual 1145.1084.12 – 30 389
Port Numbers of s2p File.
 Set to Ideal Through is enabled as long as one of the networks involving two-port or four-port S-
parameter data is active. An imported S-parameter set is replaced by the S-parameters of an ideal
through connection, which eliminates the transformation network.
The circuit models for port pair (de-)embedding are the same as the ones for balanced port (de-
)embedding.
Remote
control:
CALCulate<Ch>:TRANsform:VNETworks:PPAirp...
MMEMory:LOAD:VNETworks<Ch>:PPAir:DEEMbedding<List_idx>
'<file_name>'
MMEMory:LOAD:VNETworks<Ch>:PPAir:EMBedding<List_idx>
'<file_name>'

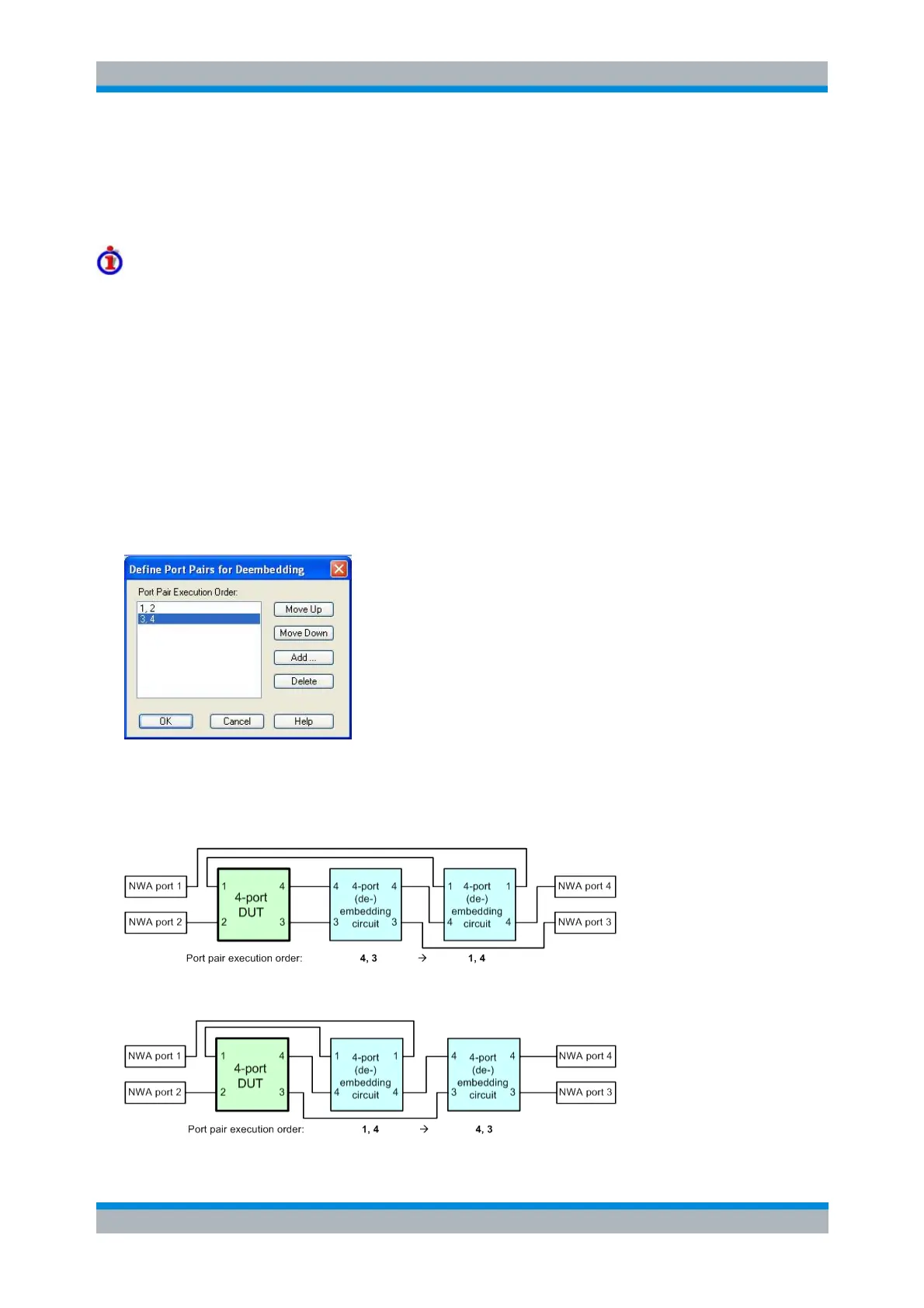

Define Port Pairs for (De-)embedding
Defines a list of port pairs to be numerically added or removed. Port pairs comprise two different single
ended analyzer ports. If port groups are defined, the two ports must be within the same port group. Add
opens an additional dialog to select and add a new port pair.
The same physical port(s) may be used repeatedly in different port pairs; it is also possible to repeat the
same port pairs. The first pair in the Embedding list and the last pair in the Deembedding list correspond
to the position closest to the DUT. The effect of port pair (de-)embedding depends on the order of the port
pairs as shown in the following examples.
