RL78/G1H CHAPTER 7 TIMER ARRAY UNIT

R01UH0575EJ0120 Rev. 1.20 Page 200 of 920

Dec 22, 2016

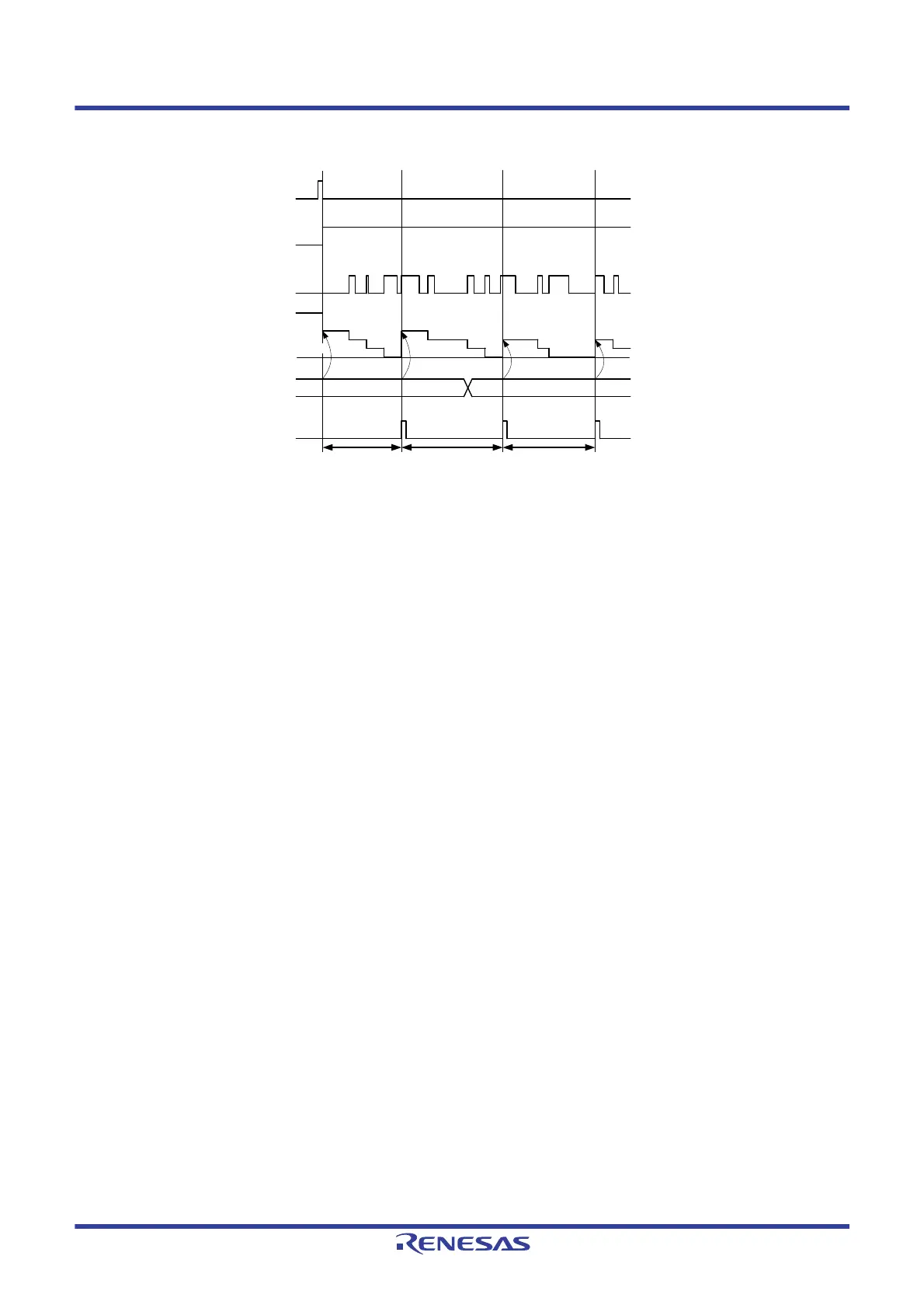

Figure 7 - 48 Example of Basic Timing of Operation as External Event Counter

Remark 1. m: Unit number (m = 0), n: Channel number (n = 3)

Remark 2. TSmn: Bit n of timer channel start register m (TSm)

TEmn: Bit n of timer channel enable status register m (TEm)

TImn: TImn pin input signal

TCRmn: Timer count register mn (TCRmn)

TDRmn: Timer data register mn (TDRmn)

TSmn

TEmn

TImn

TDRmn

TCRmn

INTTMmn

0003H 0002H

0000H

4 events 4 events 3 events
