RL78/G1H CHAPTER 7 TIMER ARRAY UNIT

R01UH0575EJ0120 Rev. 1.20 Page 216 of 920

Dec 22, 2016

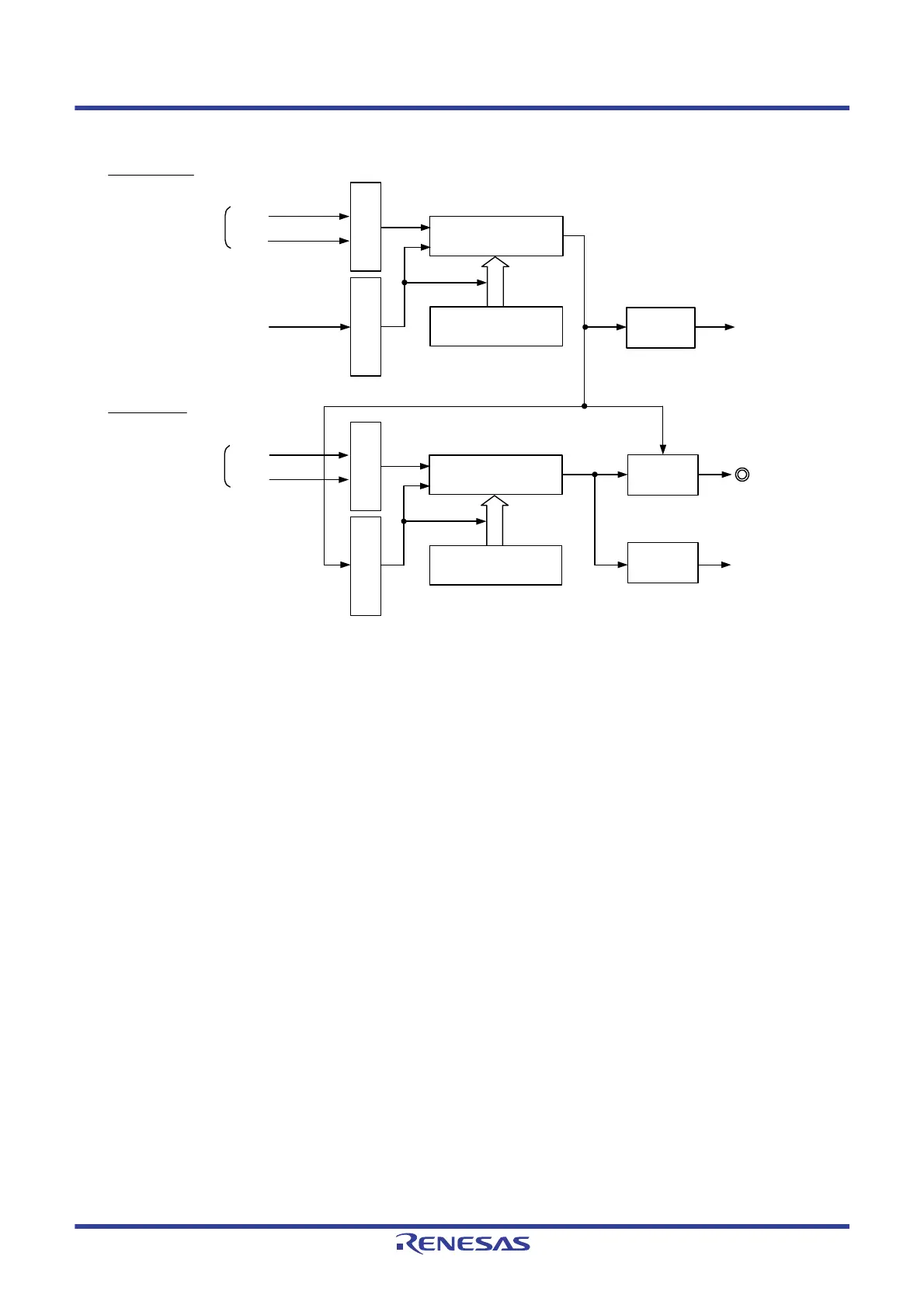

Figure 7 - 63 Block Diagram of Operation as PWM Function

Remark m: Unit number (m = 0), n: Master channel number (n = 0, 2)

p: Slave channel number (p = 3)

Interrupt

controller

Interrupt signal

(INTTMmn)

Timer data

Operation clock

CKm0

CKm1

Timer counter

TSmn

Interrupt

controller

Interrupt signal

(INTTMmp)

Timer data

Operation clock

CKm0

CKm1

Timer counter

Master channel

(interval timer mode)

Slave channel

(one-count mode)

Output

controller

TOmp pin

Clock selectionTrigger selectionClock selectionTrigger selection
