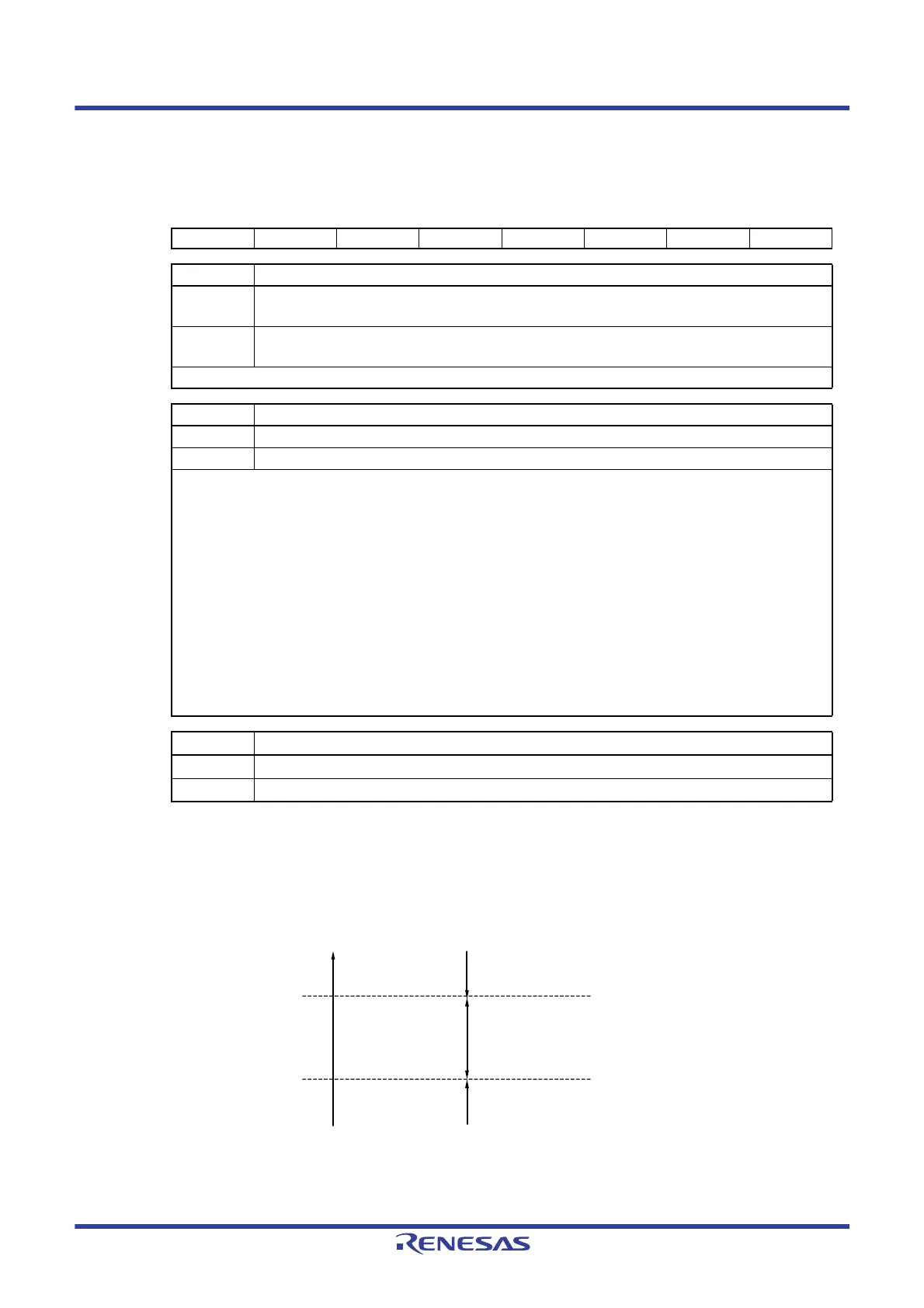

Figure 13 - 8 Format of A/D converter mode register 2 (ADM2) (2/2)
Note Refer to “Transition time from STOP mode to SNOOZE mode” in 20.3.3 SNOOZE mode.
Caution Rewrite the value of the ADM2 register while conversion is stopped (ADCS = 0, ADCE = 0).
Figure 13 - 9 ADRCK Bit Interrupt Signal Generation Range
Remark If INTAD does not occur, the A/D conversion result is not stored in the ADCR or ADCRH register.
Address: F0010H After reset: 00H R/W
Symbol 7 6 5 4 <3> <2> 1 <0>
ADM2 0 ADREFP0 ADREFM 0 ADRCK AWC 0 ADTYP
ADRCK Checking the upper limit and lower limit conversion result values
0 The interrupt signal (INTAD) is output when the ADLL register
≤ the ADCR register ≤ the ADUL register
(AREA1).
1 The interrupt signal (INTAD) is output when the ADCR register < the ADLL register (AREA2) or the
ADUL register < the ADCR register (AREA3).
Figure 13 - 9 shows the generation range of the interrupt signal (INTAD) for AREA1 to AREA3.
AWC Specification of the SNOOZE mode
0 Do not use the SNOOZE mode function.
1 Use the SNOOZE mode function.
When there is a hardware trigger signal in the STOP mode, the STOP mode is exited, and A/D conversion is performed
without operating the CPU (the SNOOZE mode).
• The SNOOZE mode function can only be specified when the high-speed on-chip oscillator clock is selected for the
CPU/peripheral hardware clock (f
CLK). If any other clock is selected, specifying this mode is prohibited.
• Using the SNOOZE mode function in the software trigger mode or hardware trigger no-wait mode is prohibited.
• Using the SNOOZE mode function in the sequential conversion mode is prohibited.
• When using the SNOOZE mode function, specify a hardware trigger interval of at least “shift time to SNOOZE mode
Note
+ conversion start time + A/D power supply stabilization wait time + A/D conversion time + 2 fCLK clock”
• Even when using SNOOZE mode, be sure to set the AWC bit to 0 in normal operation and change it to 1 just before
shifting to STOP mode.
Also, be sure to change the AWC bit to 0 after returning from STOP mode to normal operation.
If the AWC bit is left set to 1, A/D conversion will not start normally in spite of the subsequent SNOOZE or normal
operation mode.
ADTYP Selection of the A/D conversion resolution
0 10-bit resolution
1 8-bit resolution
1111111111
0000000000
ADCR register value
(A/D conversion result)
ADUL register setting
ADLL register setting
AREA 3
(ADUL < ADCR)
AREA 1
(ADLL ≤ ADCR ≤ ADUL)
AREA 2
(ADCR < ADLL)
INTAD is generated
when ADRCK = 1.
INTAD is generated
when ADRCK = 0.
INTAD is generated
when ADRCK = 1.
