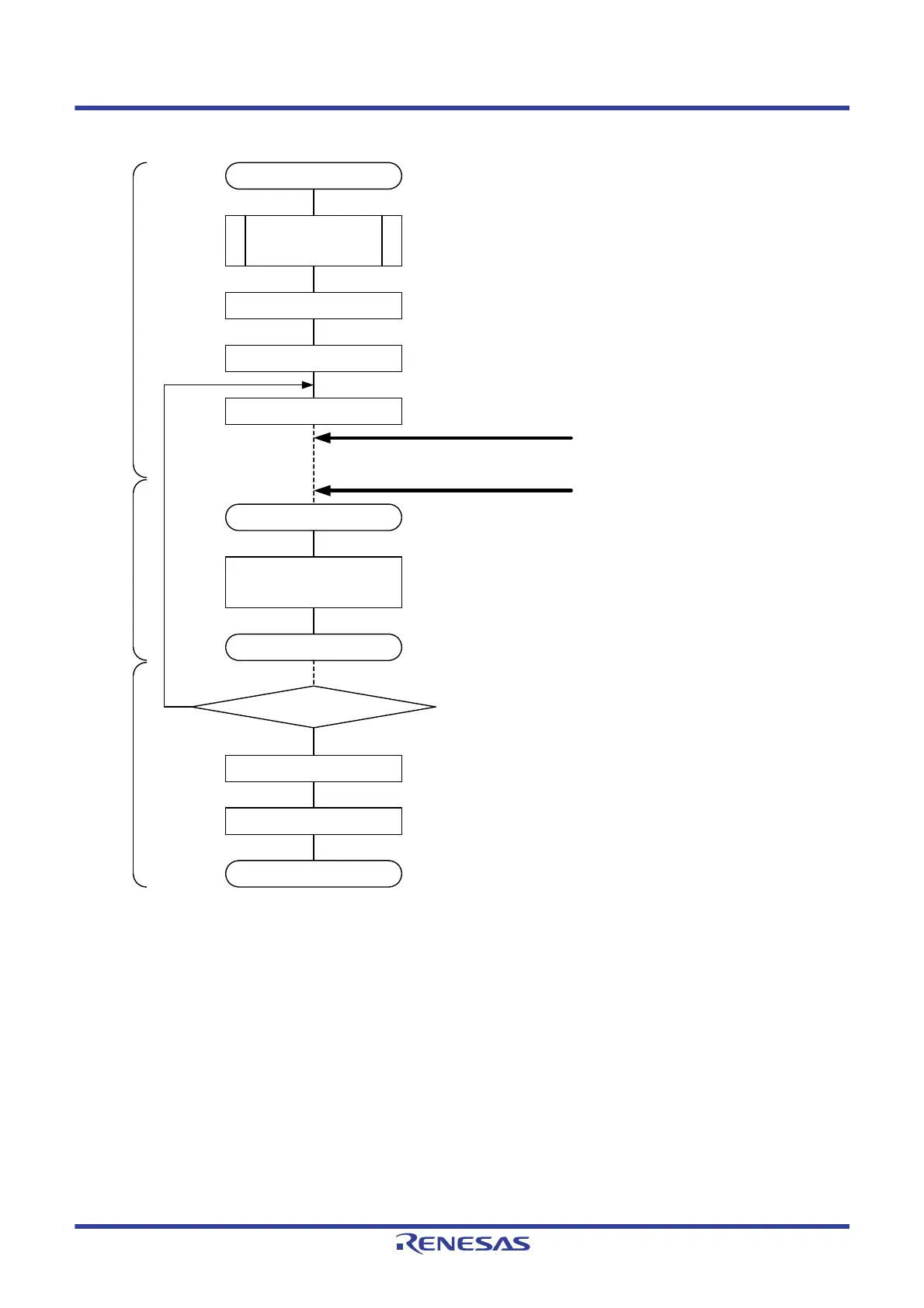

Figure 14 - 61 Flowchart of Slave Reception (in Single-Reception Mode)
Note For the initial setting, refer to Figure 14 - 57.(Select transfer end interrupt)
SAU default setting
Starting CSI communication
Wait for receive completes
End of communication
Clear interrupt request flag (XXIF), reset interrupt mask (XXMK)
and set interrupt enable (EI).
Reading receive data to
SIOp (= SDRmn [7:0])
Yes
No
Ready for reception
Clear storage area setting and the number of receive data
(Storage area, Reception data pointer, Number of communication
data and Communication end flag are optionally set on the internal
RAM by the software)
Enables interrupt
Transfer end interrupt
When transmit end, interrupt is generated
Read receive data then writes to storage area , and counts
up the number of receive data.
Update receive data pointer.
RETI
Reception completed?
Disable interrupt (MASK)
Write STmn bit to 1
Check completion of number of receive data
Main routineInterrupt processing routineMain routine
Start communication when master start
providing the clock
Note
