RL78/G1H CHAPTER 19 INTERRUPT FUNCTIONS

R01UH0575EJ0120 Rev. 1.20 Page 708 of 920

Dec 22, 2016

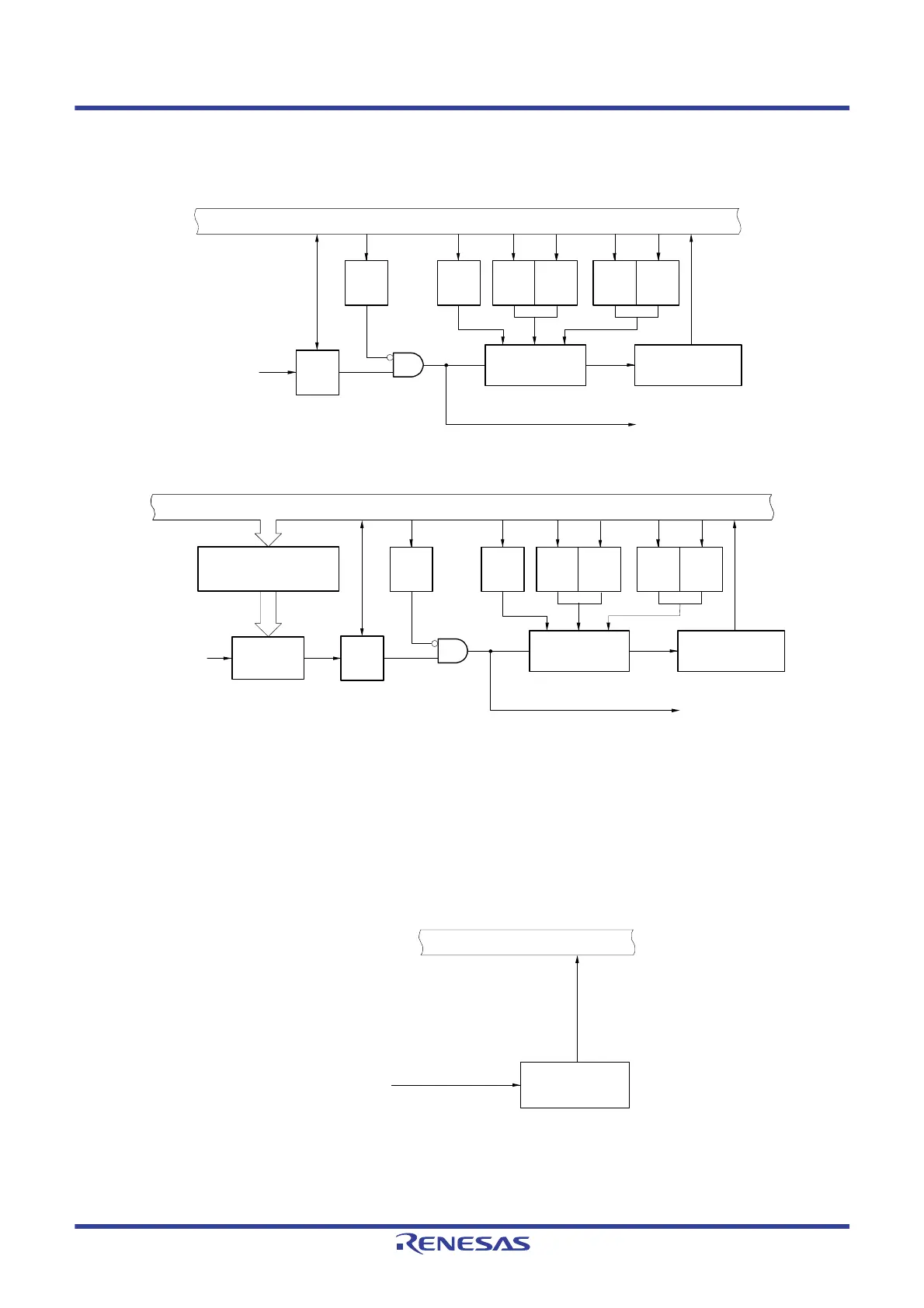

Figure 19 - 1 Basic Configuration of Interrupt Function

(A) Internal maskable interrupt

(B) External maskable interrupt (INTPn)

IF: Interrupt request flag

IE: Interrupt enable flag

ISP0: In-service priority flag 0

ISP1: In-service priority flag 1

MK: Interrupt mask flag

PR0: Priority specification flag 0

PR1: Priority specification flag 1

Internal bus

Priority controller

Vector table

address generator

Interrupt request

Standby release signal

MK IE ISP1PR1 PR0 ISP0

Internal bus

INTPn pin input

External interrupt edge

enable register

(EGP, EGN)

Priority controller

Vector table

address generator

Edge

detector

Standby release signal

MK IE ISP1PR1 PR0 ISP0
