Paper Feed Unit (D573)
SM 6 D573
2. Remove all clips on the shaft and move the roller [A] to the right side [1] (
x 6, bearing x 1).
3. Move the shaft to the right, and pull out the shaft from the bushing at the left side.
4. Lift up the shaft [2] and remove the shaft from the bushing at the right side.
5. Remove the roller [B].

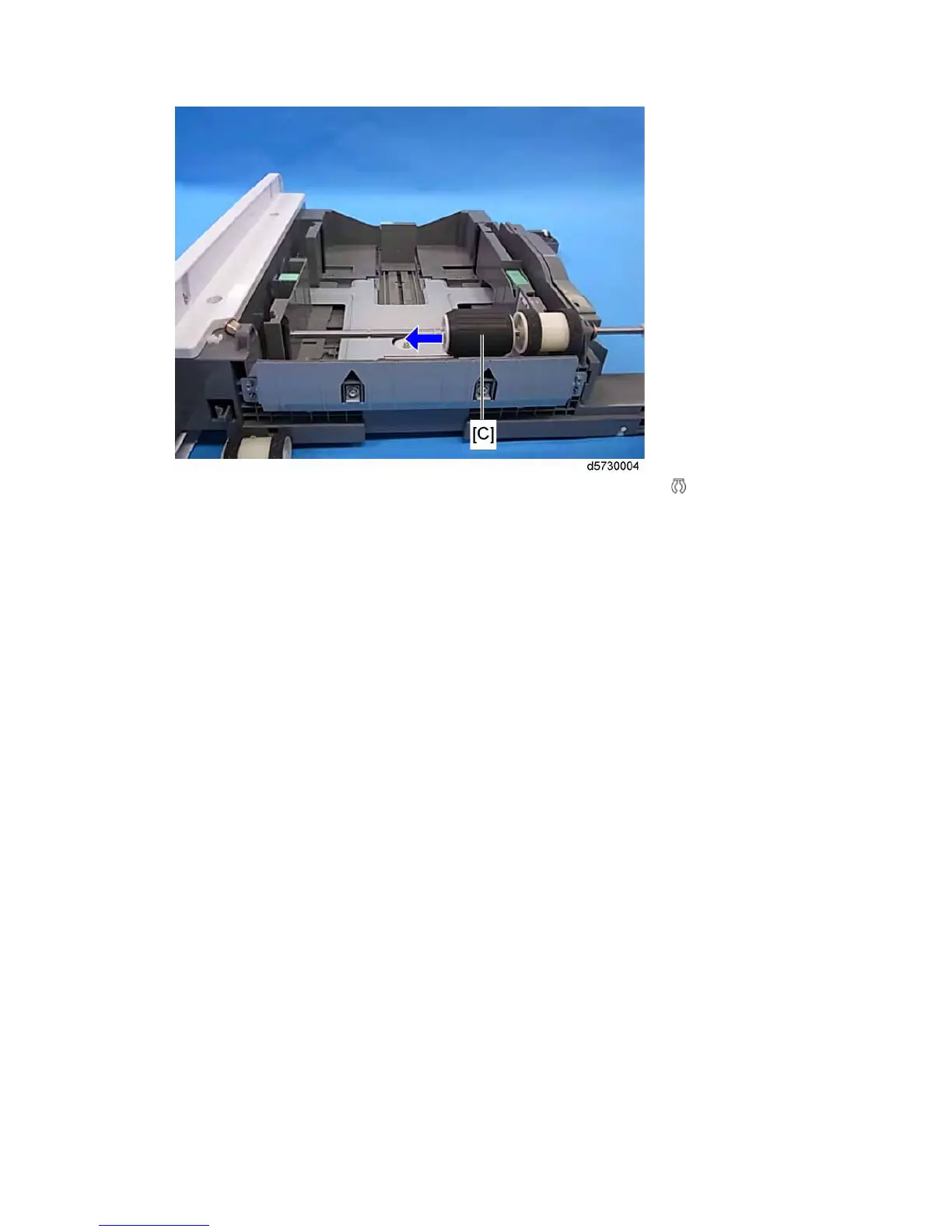

6. Pick-up roller [C]
