Image Transfer
SM 4-57 D117/D118
Replacement
and
Adjustment
6. Execute “MUSIC” manually (to do this, execute “SP2-111-001”).
7. SP values from SP1-001-033 to 040 are updated by the above steps.
8. Reset SP1-001-031 to “0”.
4.8.2 ITB CONTACT MOTOR / PAPER TRANSFER CONTACT
MOTOR
1. Drive unit ( p.4-65)
2. Paper transport motor (
p.4-65)

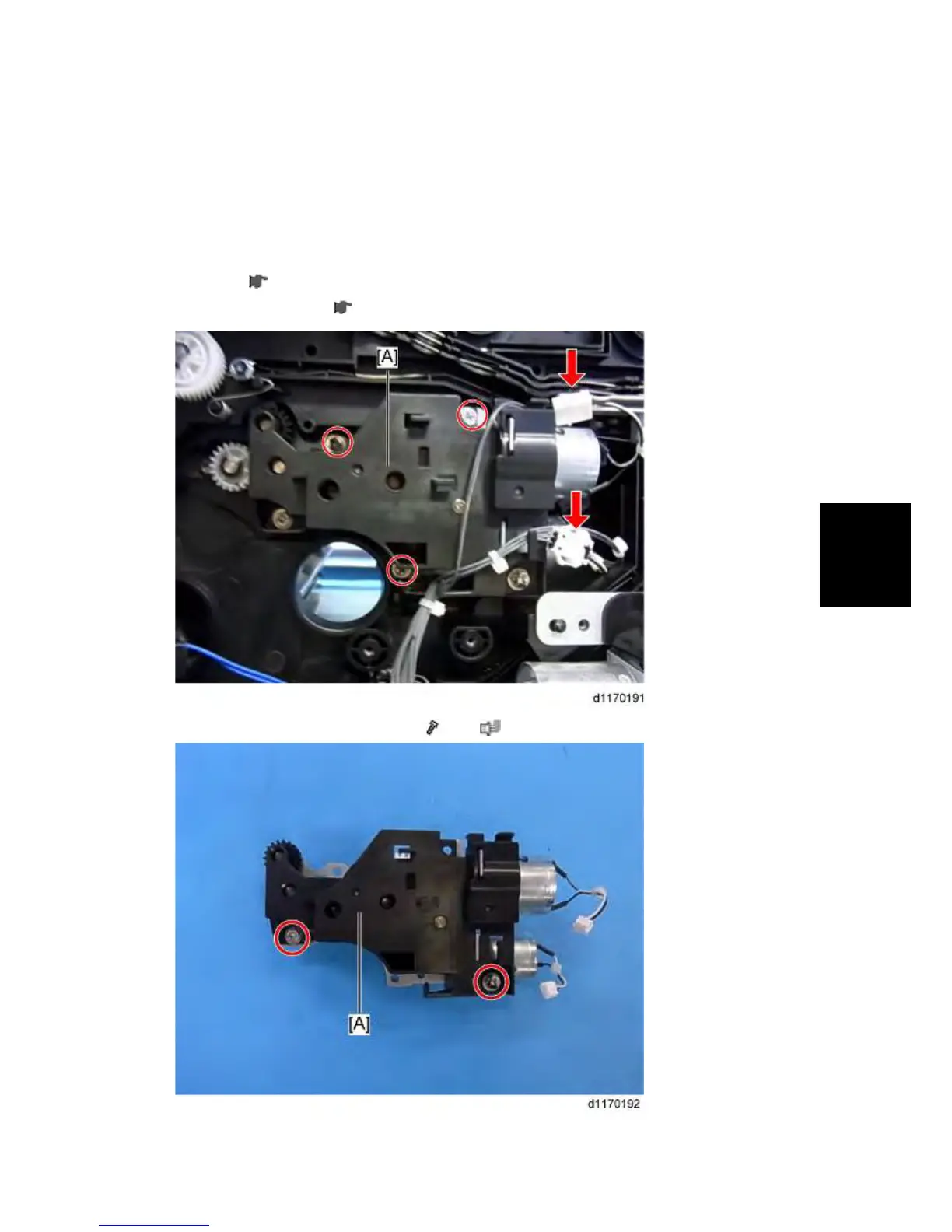

3. Transfer roller contact drive unit [A] (
x 3, x 2)
