Electrical Components
D574 4 SM

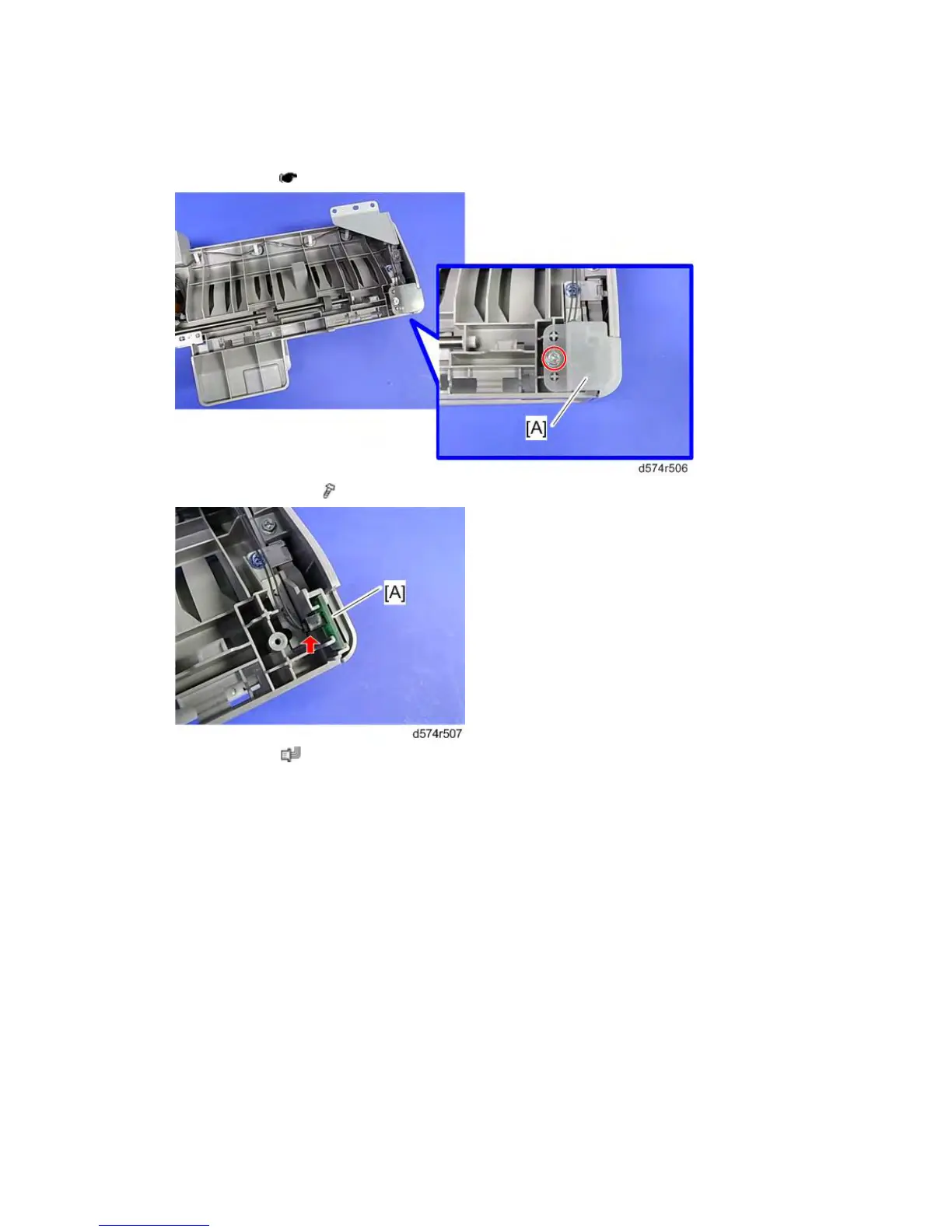

1.2.3 LED BOARD
1. 1-Bin tray unit ( 1-bin Tray Unit B1010 in the mainframe service manual)
2. LED board cover [A] (
x 1)
3. LED board [A] (
x 1)
4.
