Paper Feed
SM 4-109 D117/D118
Replacement
and
Adjustment

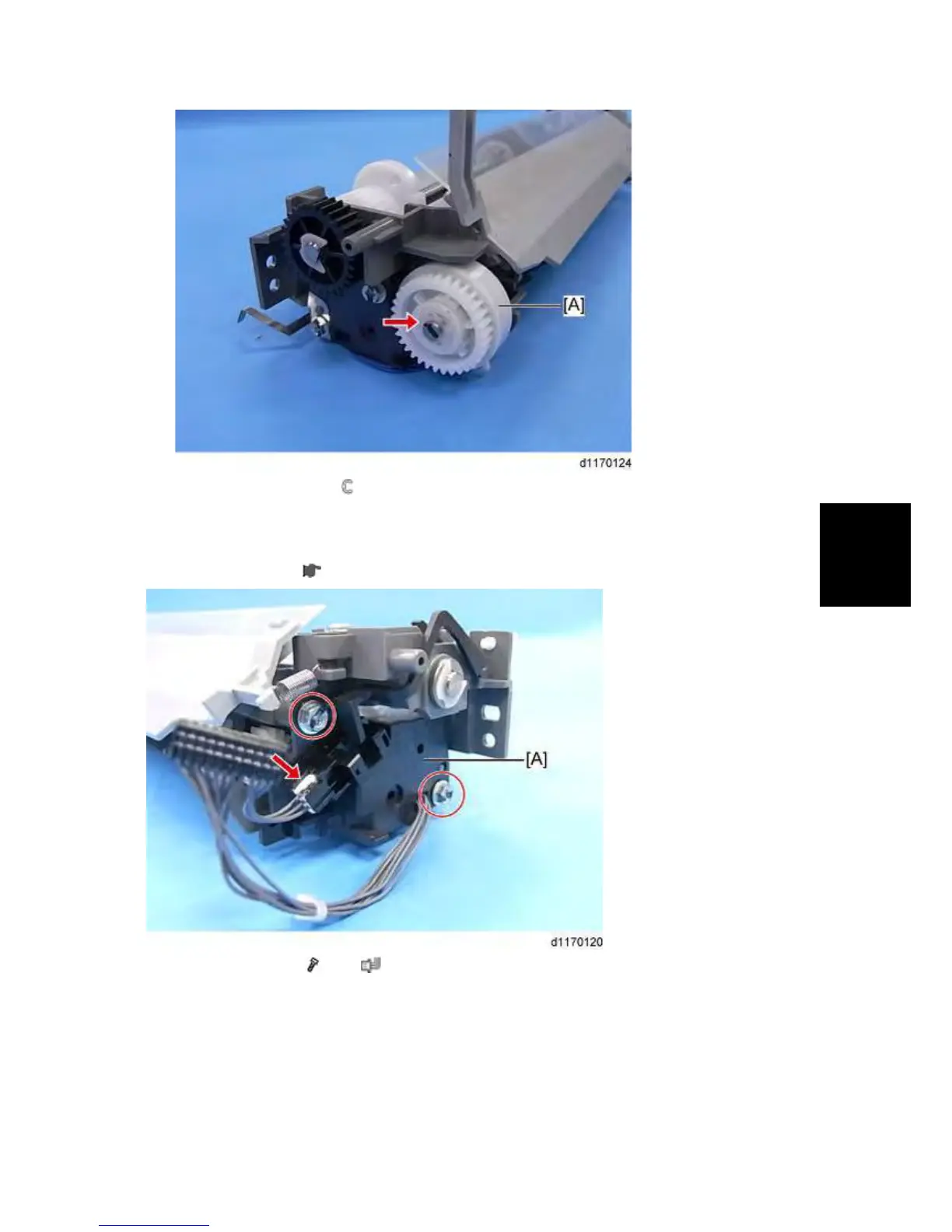

4. By-pass feed clutch [A] (
x 1)
4.12.12 BY-PASS FEED BOTTOM PLATE HP SENSOR
1. By-pass feed unit ( p.4-100)
1. Sensor holder [A] (
x 2, x 1)
