6.4 JAM DETECTION
6.4.1 PAPER JAM DISPLAY

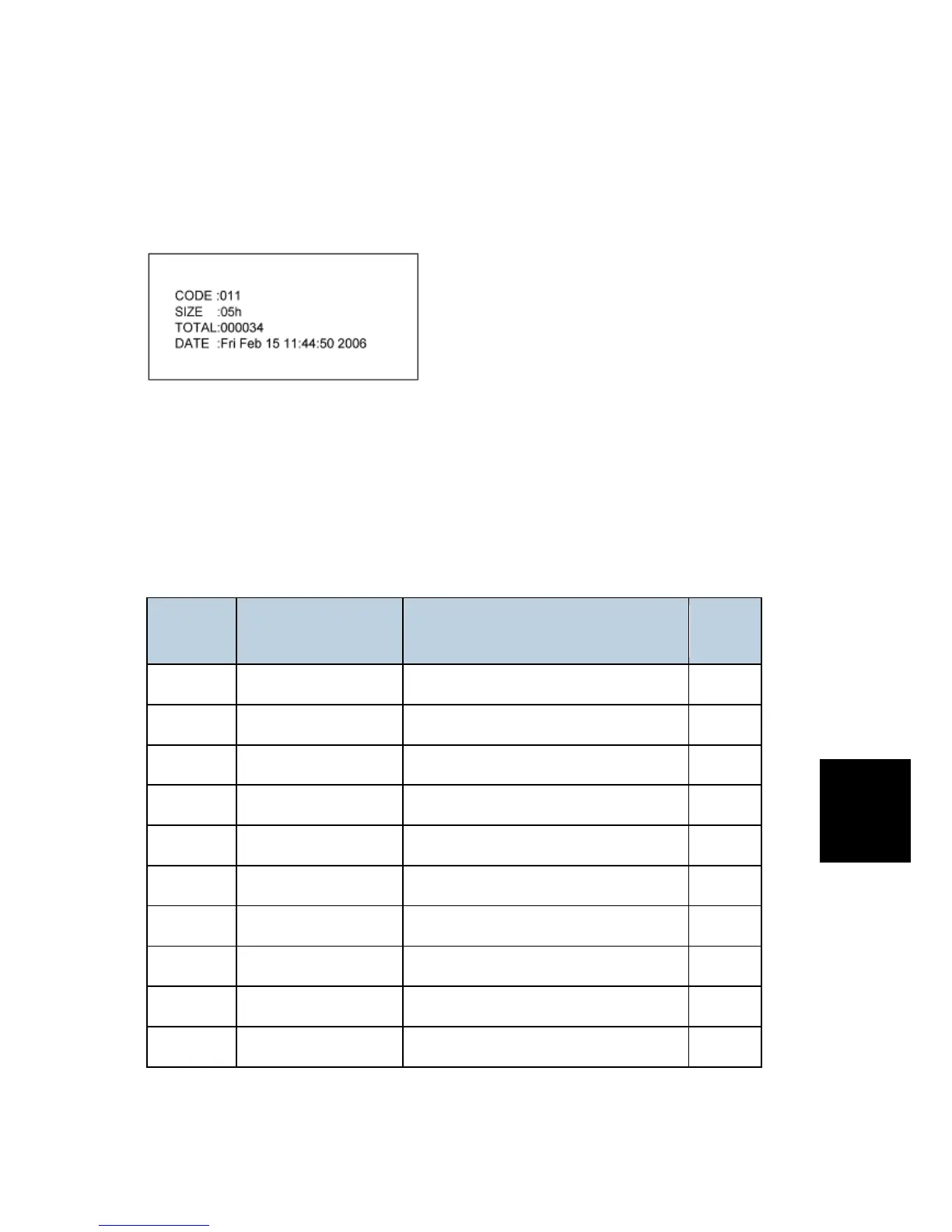

SP7-507 shows the paper jam history.
 CODE: Indicates the jam code.
 SIZE: Indicates the paper Size Code.
 TOTAL: Indicates the total counter (SP7-502-001).
 DATE: indicates the date when the jam occurred.
6.4.2 JAM CODES AND DISPLAY CODES
SP7-504 shows how many jams occurred at each location.
Jam Code
SP
Display Description
LCD
Display
7504 1 Fusing Entrance: ON Fusing entrance sensor does not turn off A
7504 1 Exit Sensor Paper exit sensor does not turn off C
7504 1 Duplex Exit: ON Paper exit sensor does not turn off Z
7504 1 Bank Transport 2: ON Paper exit sensor does not turn off Y2
7504 1 Relay Exit Sensor Relay exit sensor does not turn off C
7504 3 Tray 1: ON Paper is not fed from tray 1. A
7504 4 Tray 2: ON Paper is not fed from tray 2. Y
7504 5 Tray 3: ON Paper is not fed from tray 3. Y
7504 8 Bypass: ON Paper is not fed from the by-pass tray. A
7504 9 Duplex: ON Paper is jammed at the duplex unit. Z
