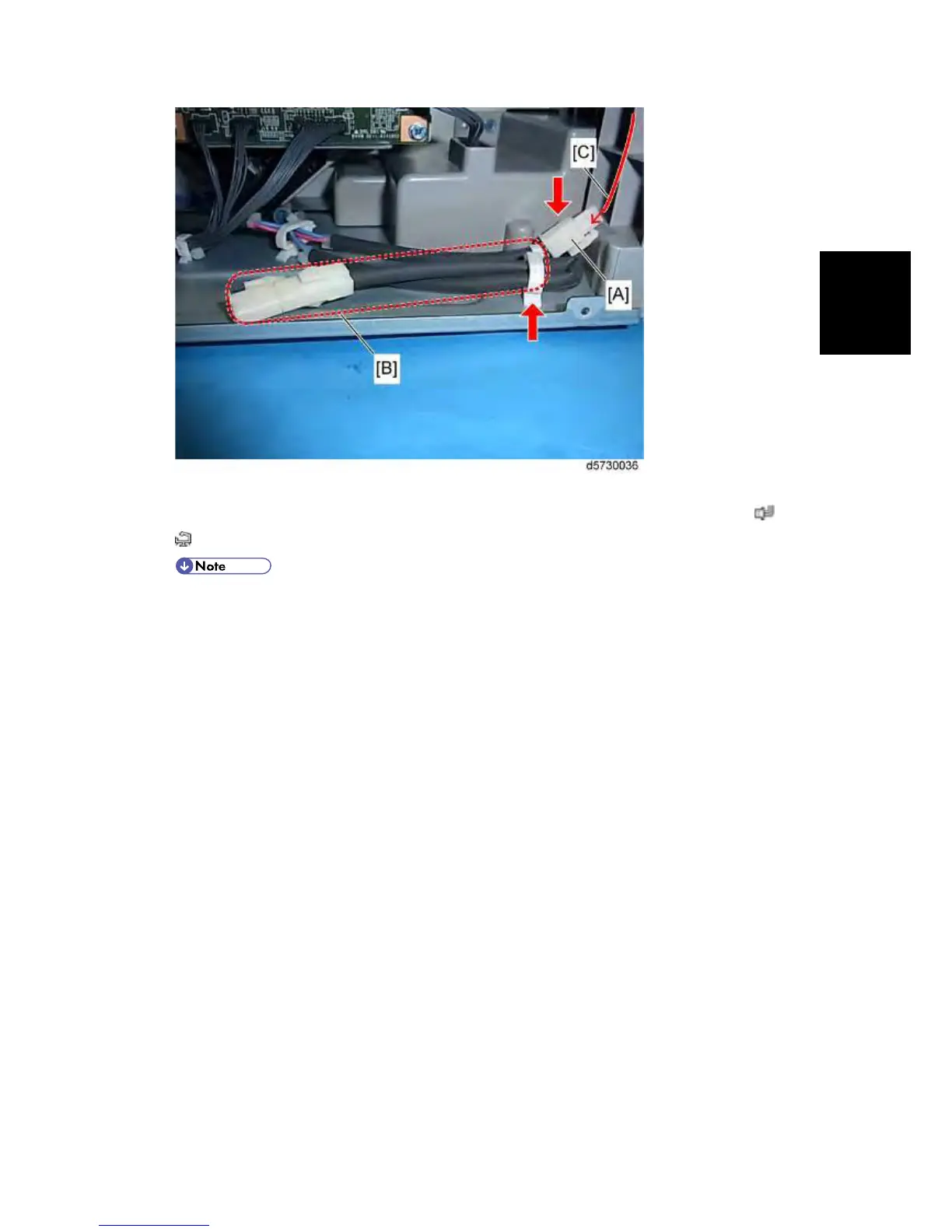

7. Connect the connector [A] to the connector from the mainframe [C], and bend the part [B] of
the harness and clamp it as shown above unless another paper feed unit is installed (
x 1,
x 1).
 Regarding the connector from the mainframe, see the installation procedure for the
mainframe paper tray heater (See p.2-62).
For Joining the Mainframe with the Optional Paper Feed Unit
The mainframe and the optional paper feed unit should be joined with joint brackets after the
anti-condensation heater installation, because the heater harness may be damaged when the
mainframe is removed accidentally.
