Anti-condensation Heater (Optional Unit)
D117/D118 2-72 SM
A: For this tray heater
B: For the mainframe
C: For another optional tray heater

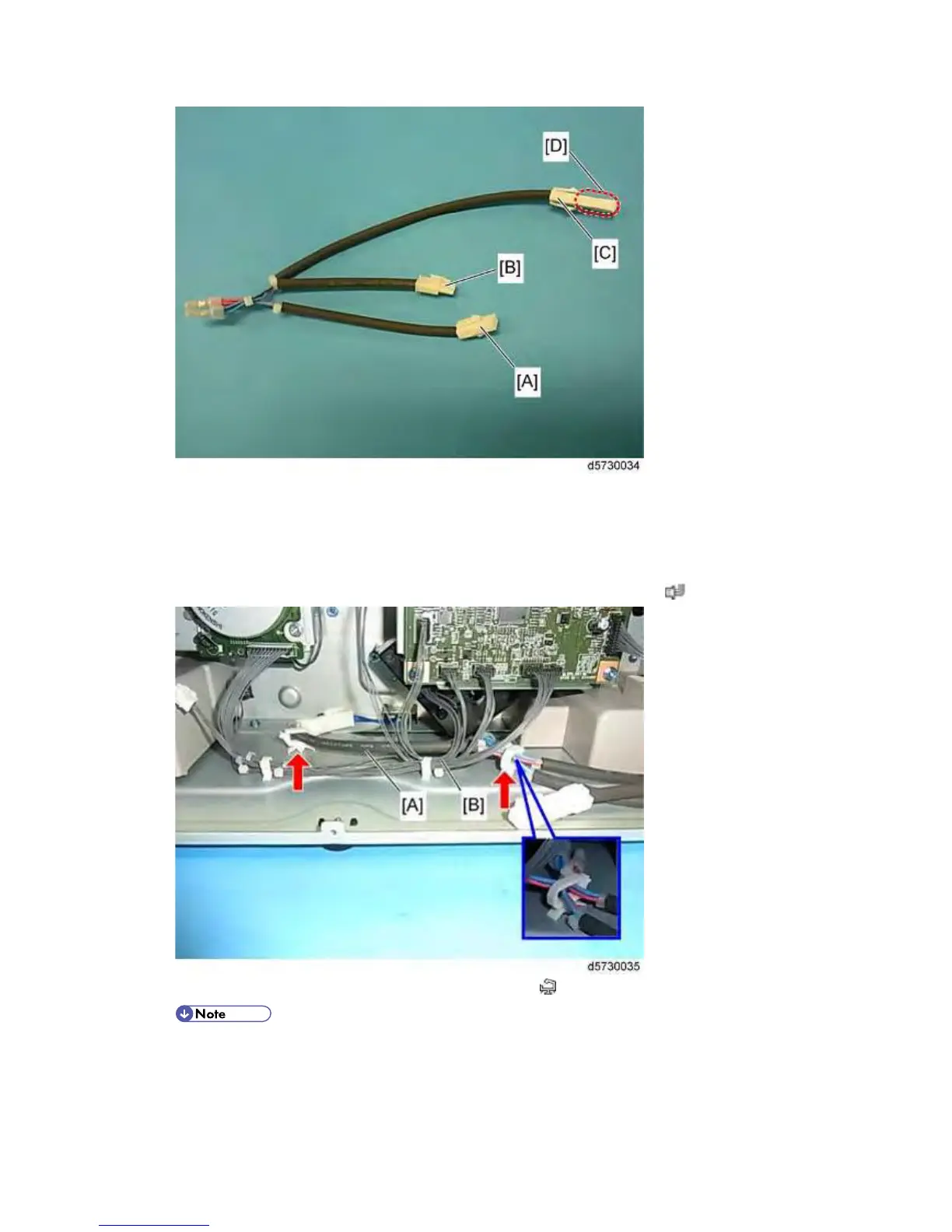

5. Connect the connector [A] to the tray heater connector, and cap the connector [C] with the
isolation cap [D] unless there are two optional paper tray units installed (
x 1).
6. Route the harness [A], and clamp it as shown above (
x 2).
 Pass the harness [A] behind the controller board harness [B] as shown above.
