Image Creation
SM 4-51 D117/D118
Replacement
and
Adjustment
SP Setting after Replacing the Toner Transport Section
The following SP settings are required after a toner transport section (the toner sub-hopper) is
replaced.
1. Plug in and turn the main power on.
2. Enter the SP mode.
3. Set the following SPs (New unit flag) to “1” depending upon the color of the replaced unit.
 SP3-701-027 (Black)
 SP3-701-028 (Cyan)
 SP3-701-029 (Magenta)
 SP3-701-030 (Yellow)
4. Set the following SPs (Toner supply flag) to “1” depending upon the color of the replaced unit.
 SP3-510-031 (Black)
 SP3-510-032 (Cyan)
 SP3-510-033 (Magenta)
 SP3-510-034 (Yellow)
5. Exit from the SP mode.
6. Turn the main power off and on.
4.7.4 WASTE TONER BOTTLE

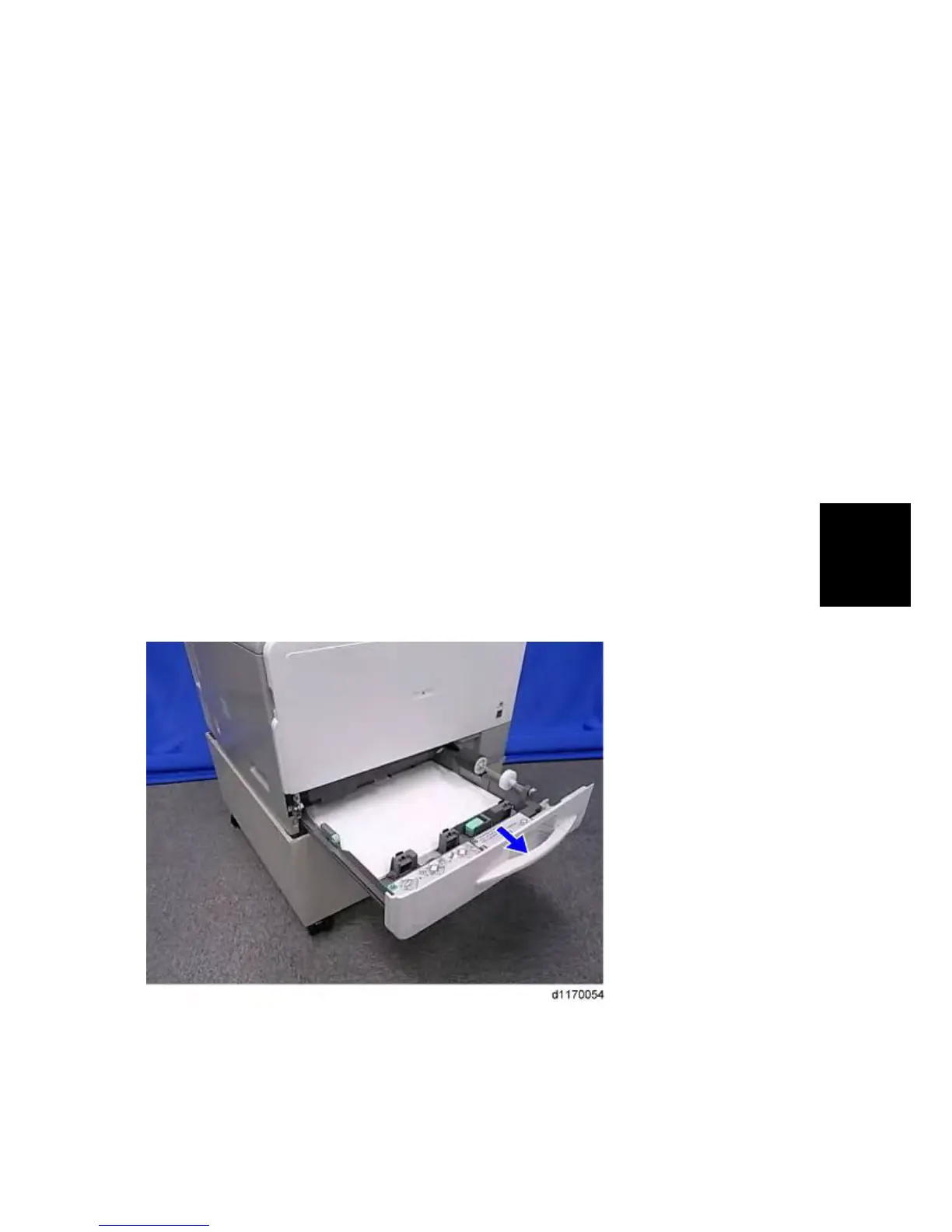

1. Remove the paper tray.
