ARDF
D117/D118 4-144 SM
4.16 ARDF
4.16.1 ARDF UNIT

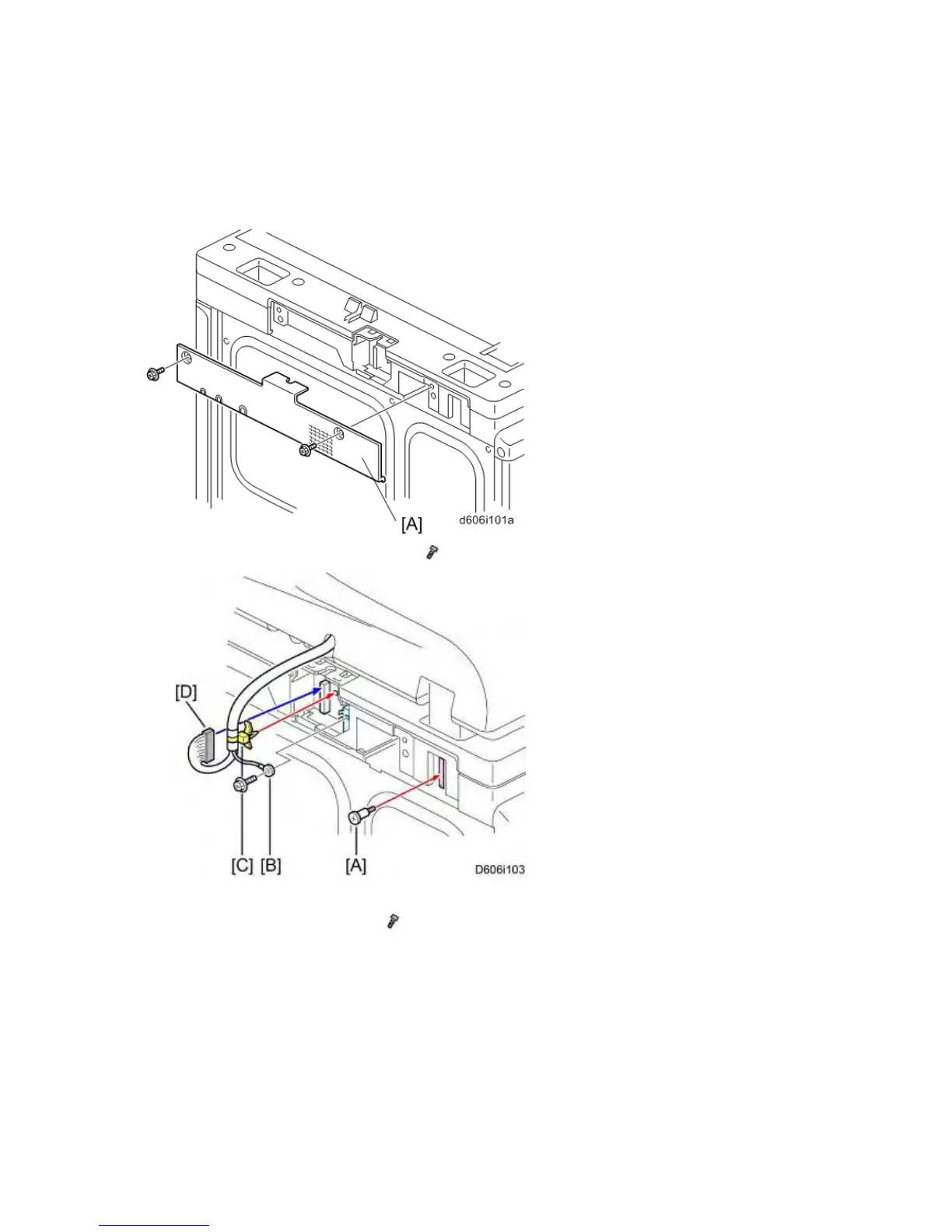

1. Remove the scanner rear cover [A] (
x 2).
2. Remove the stud screw [A].
3. Remove the ground cable [B] (
x 1).
4. Remove the clamp [C].
5. Disconnect the I/F cable [D].
