Electrical Components
D117/D118 4-132 SM

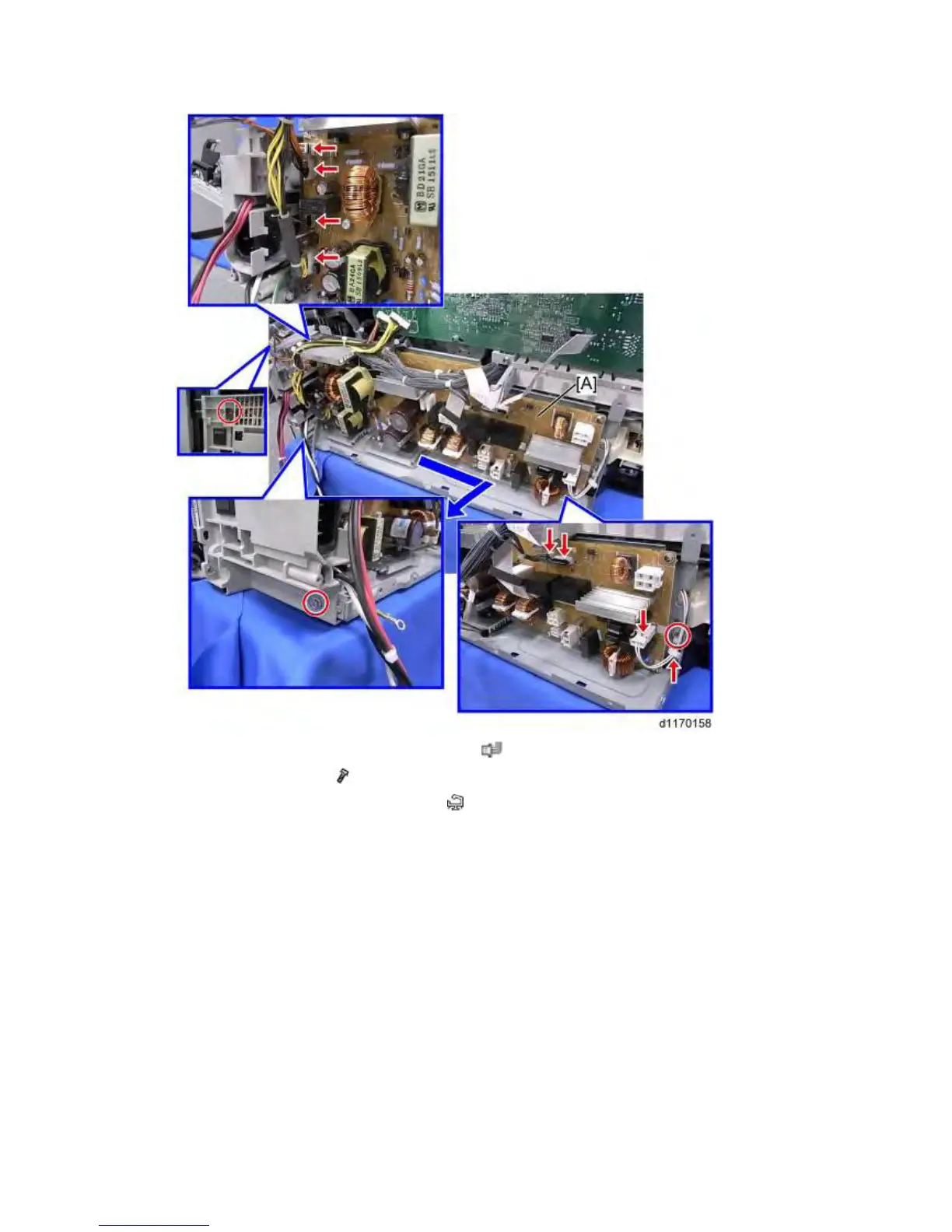

4. Disconnect seven connectors from the PSU (
x 7).
5. Remove three screws (
x 3).
6. Release the harnesses from the clamp (
x 1).
7. PSU [A]
