4.1.5.3 Process-Technical Settings
4.1.5.3.1 Levels

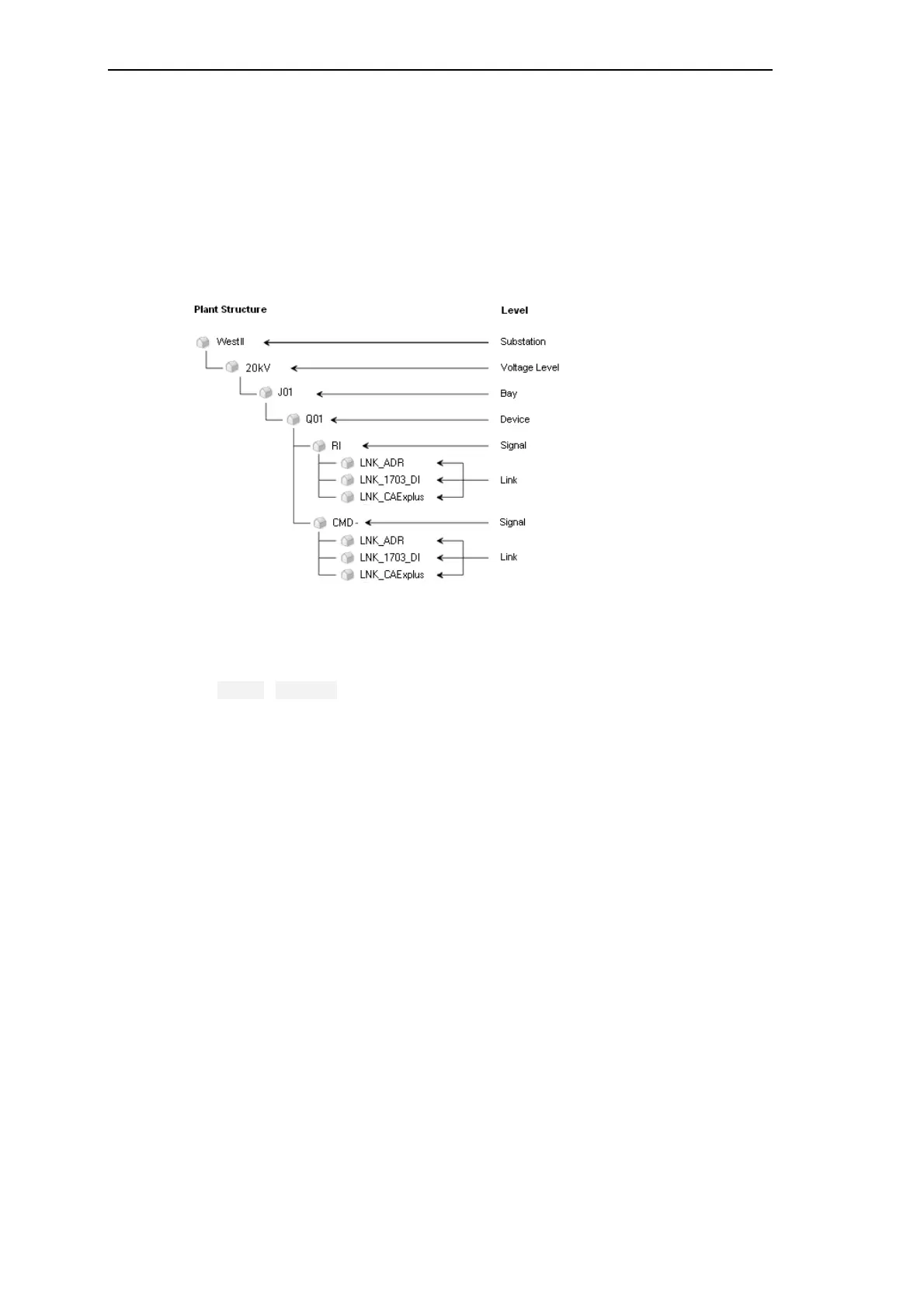

The process-technical plant can be structured in freely-definable hierarchy levels. The follow-
ing graphic shows an example:
You find the instruction to create levels in the SICAM TOOLBOX II Online Help, chapter
“OPM II”, section “Levels”.
The process-technical settings of the system elements can be opened centrally via the menu
item Tools | Images .
4.1.5.3.2 Types
Types form the template for the structure of a process-technical plant. They serve for the sim-
plification with engineering of large quantities of objects, parameters and values.
Types of the following type categories can be defined below the levels:
• User names
• Link types
• Info types
• Parameter types
A type is defined respectively for objects, that have the same features (examples: feeder, cir-
cuit breaker, disconnector).
You find the instruction to define the different types in the SICAM TOOLBOX II Online Help,
chapter “OPM II”, section “Types”.
