Installation
22 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016

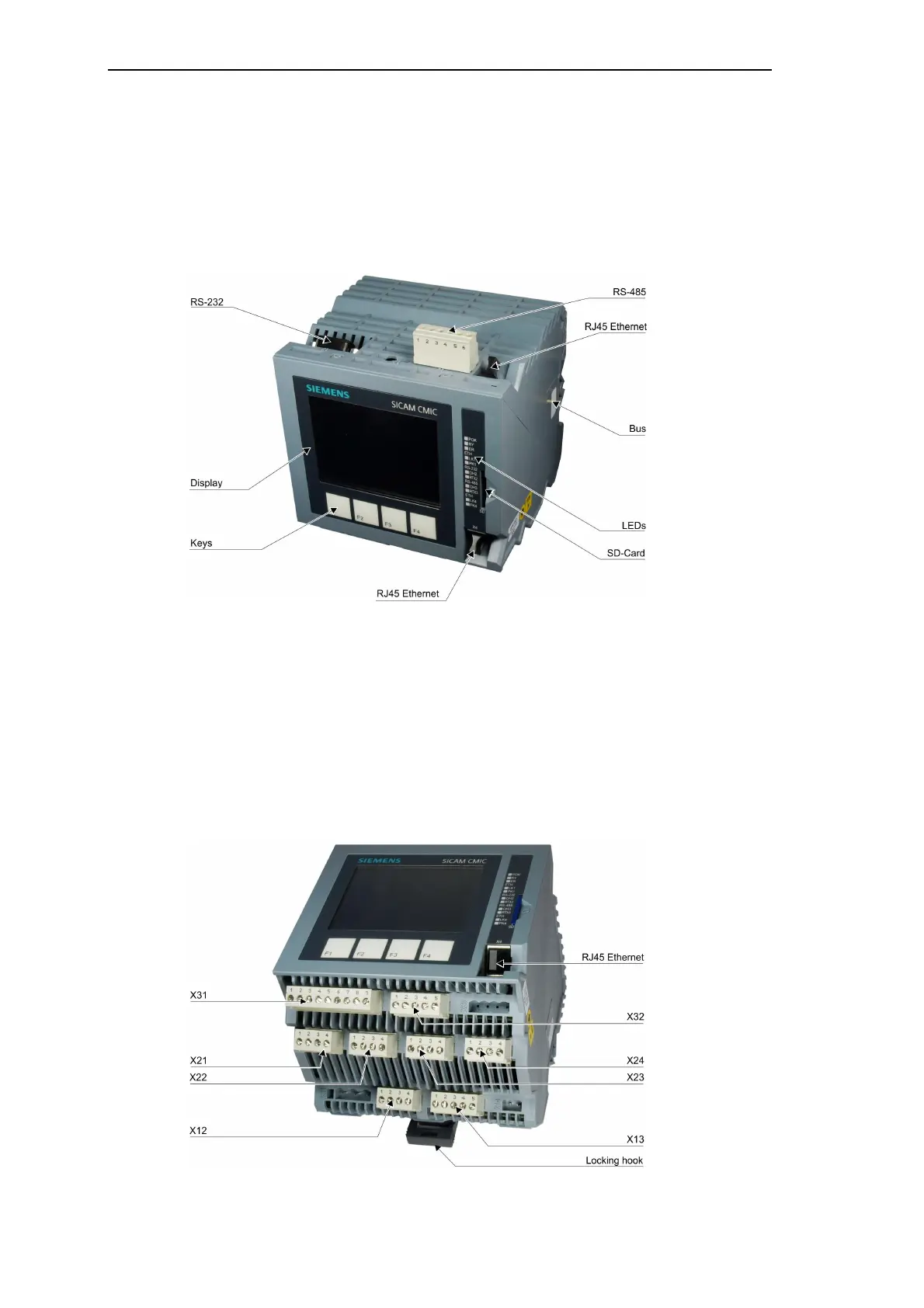

1.1 Mechanical Design
The electrical components of the device are housed in a plastic casing with the dimensions
128 mm x 124 mm x 116 mm (W x H x D). The casing is designed for assembly on a DIN rail.
At the front are the operation and display elements, an interface for the communication via
Ethernet, and a slot for the SD card.
At the top of the device are the connections for the communication via RS-485 and RS-232,
as well as a further Ethernet interface.
On the right side of the housing is the BUS-connector for the SICAM TM I/O coupling module.
It is covered with a label.
On the bottom side of the device are the connections for the process signals as well as for the
supply voltage.
