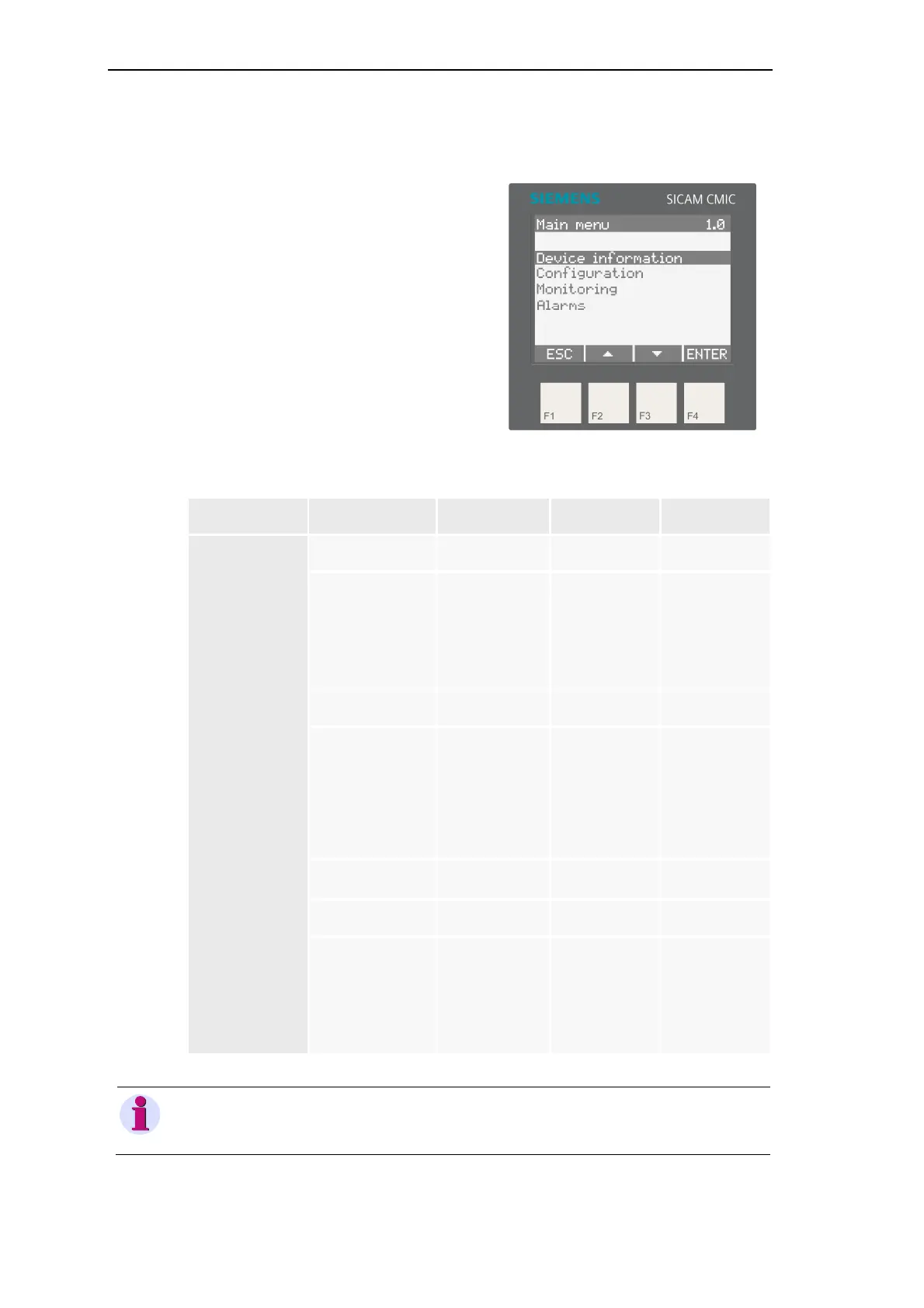

6.1.2 LCD Display
The LCD display comprises
• Device Information
• Configuration
• Monitoring
• Alarms
Overview of the menu structure:
Main menu 1.0
Device information
2.0
Configuration
3.0
Monitoring
4.0
Alarms
Submenu 1.1
Device
2.1
I/O Modules
3.1
Ereignisse
(Alarm list)
2.1.1
IOM0
2.1.2
IOM1
…
2.1.8
IOM7
3.1.1
All Events
3.1.2
DEF Events
3.1.3
DIA Events
1.2
Language
2.2
Protocols
3.2
Alarms
2.2.1
PRE0
2.2.2
PRE1
2.2.3
PRE2
2.2.4
PRE3
1.3
Display
2.3
Version
3.3
Cockpit
3.4
I/O Modules
3.4.1
IOM0
3.4.2
IOM1
…
3.4.8
IOM7
Note
At low temperatures the display becomes sluggish and the legibility may be restricted.
At -25°C the response time is 5 s.
