Preparing the Engineering
84 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016
3.7.2.2.3 LAN/WAN Connection via Ethernet Interface
The following steps are necessary:
• Writing IP address with WEBcmic
• Connection setup via SICAM WEB
Configure IP Address with WEBcmic
With operation in a network an unambiguous IP address must be assigned to SICAM CMIC.
The assignment of the IP address is dependent on the subnet mask used in the network.
The identification for the assignment of the IP address happens solely via the MAC address of
the target device. This is printed on the type plate at the left side of the housing, or it can be
read also on the display under the menu Device information.
Note
The IP address can be assigned with the tool WEBcmic within a network segment (subnet). This can hap-
pen also if the IP address of the engineering PC is located out of this subnet. On the other side, the as-
signment of the IP address via a routed network (PC and target device separated via a router) is not pos-
sible.

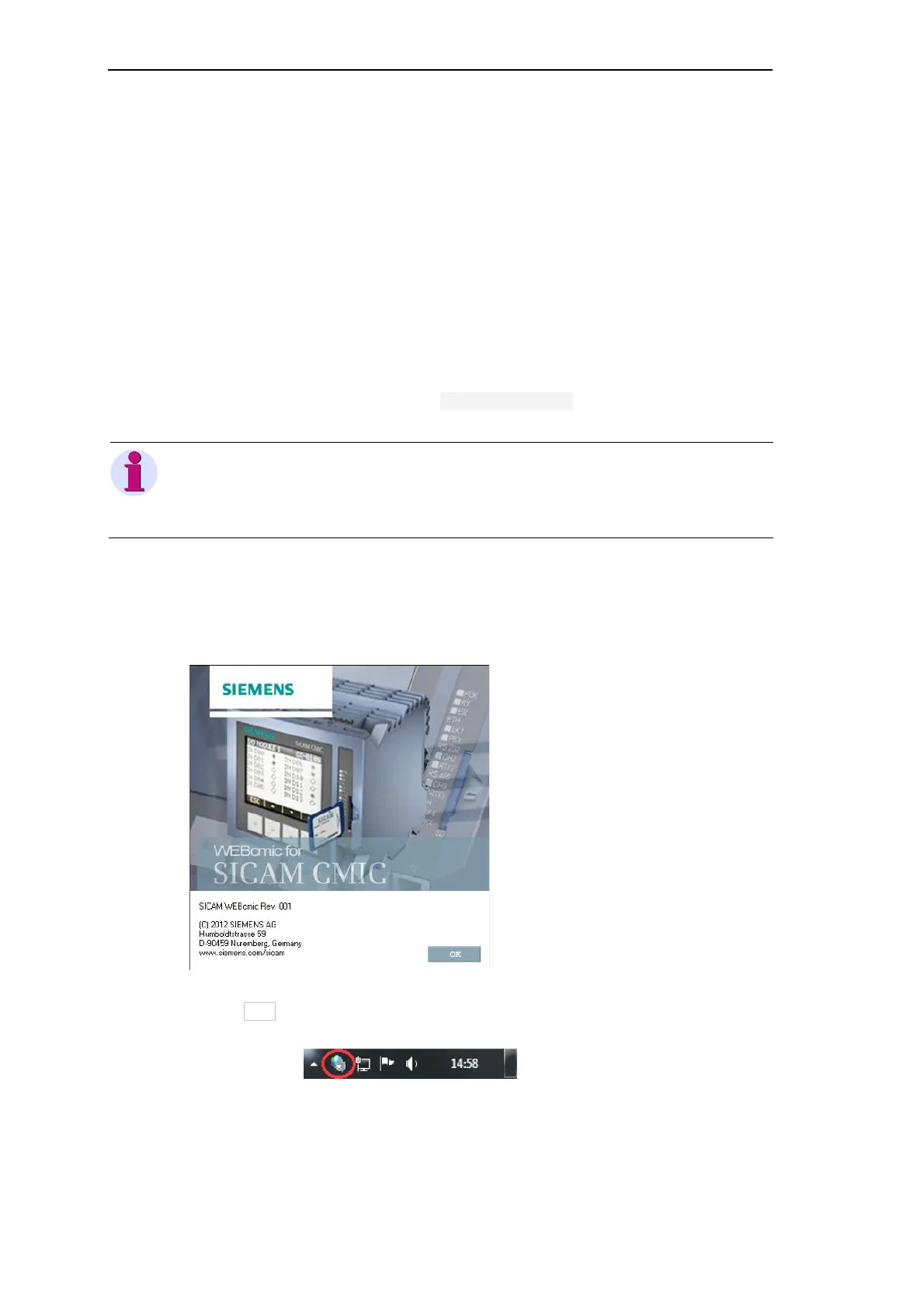

For the address assignment start the program WEBcmic.exe with double click.
The WEBcmic splash screen is opened, and the WEBcmic symbol appears in the notification
area of the taskbar:
• Click OK to close the splash screen
• Click then with the right mouse button on the WEBcmic symbol in the notification area of
the taskbar
