Preparing the Engineering
SICAM RTUs, User Manual SICAM CMIC 75
DC8-001-2.09, Edition 08.2016
3.7 Connecting Engineering PC with the Target Device
3.7.1 SICAM TOOLBOX II
Before parameters can be loaded via the SICAM TOOLBOX II into SICAM CMIC, the follow-
ing steps must be performed:
Insert a suitable SD card into the target device (if not present)
store required TBII updates in the SICAM TOOLBOX II
Switch on the target device
Set up physical connection with the target device
3.7.1.1 Physical Connection
The following connection options are available:
Serial point-to-point connection
Serial connection via telecommunication facilities
LAN/WAN connection via Ethernet interface
LAN/WAN connection via serial interface and Terminalserver
Connection via further SICAM RTUs automation unit(s)

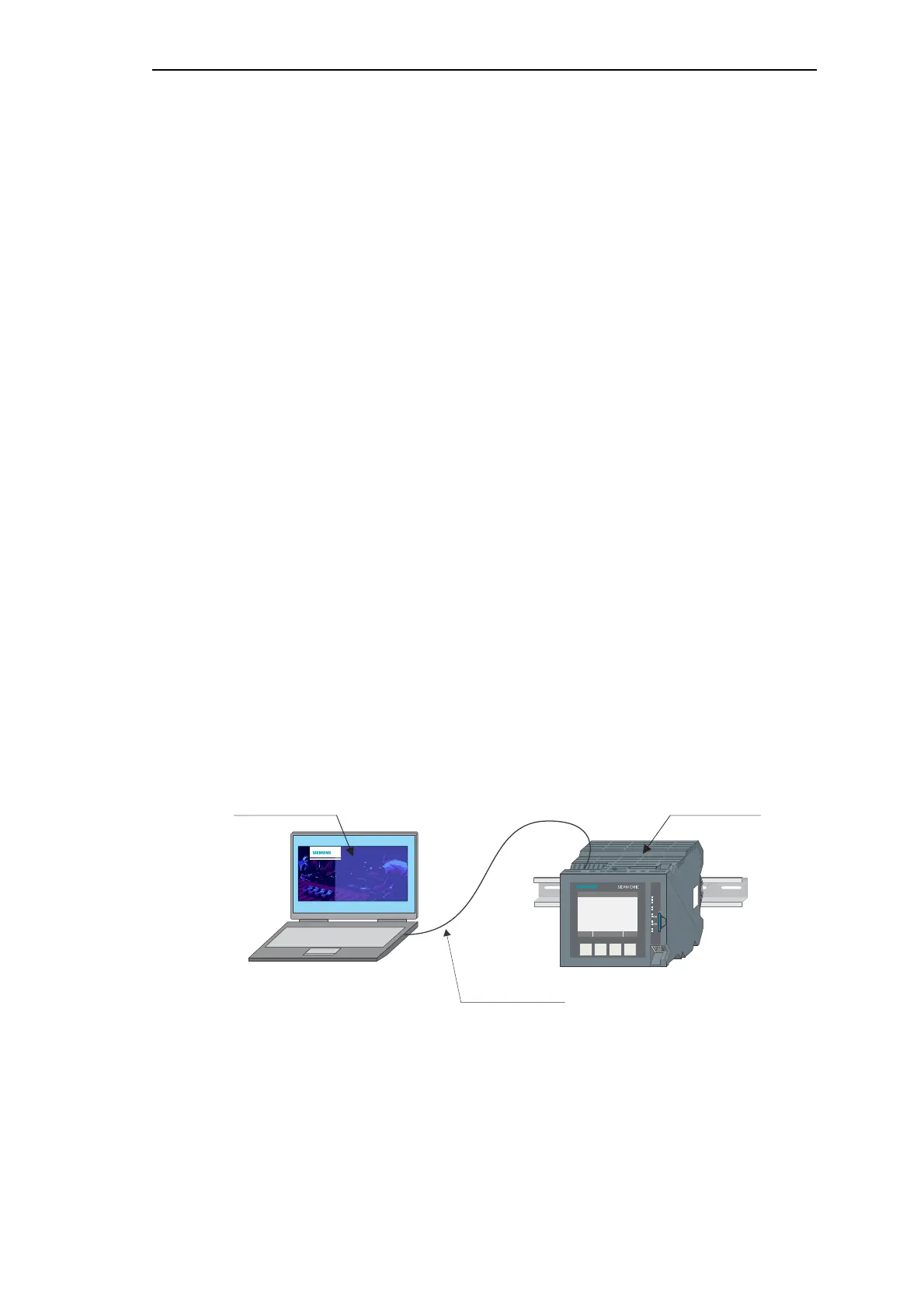

3.7.1.1.1 Serial Point-to-Point Connection
PC and target device are connected with a direct cable via the serial interface (DSUB9 con-
nector).
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
TOOLBOX II
Revision:
License Pak:
Version 5 | Sie mens AG
SICAM TOOLBOX II
SICAM CMIC
Direct cable connection
2xDB9F (TF5-204--)
