Engineering via SICAM WEB
254 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016

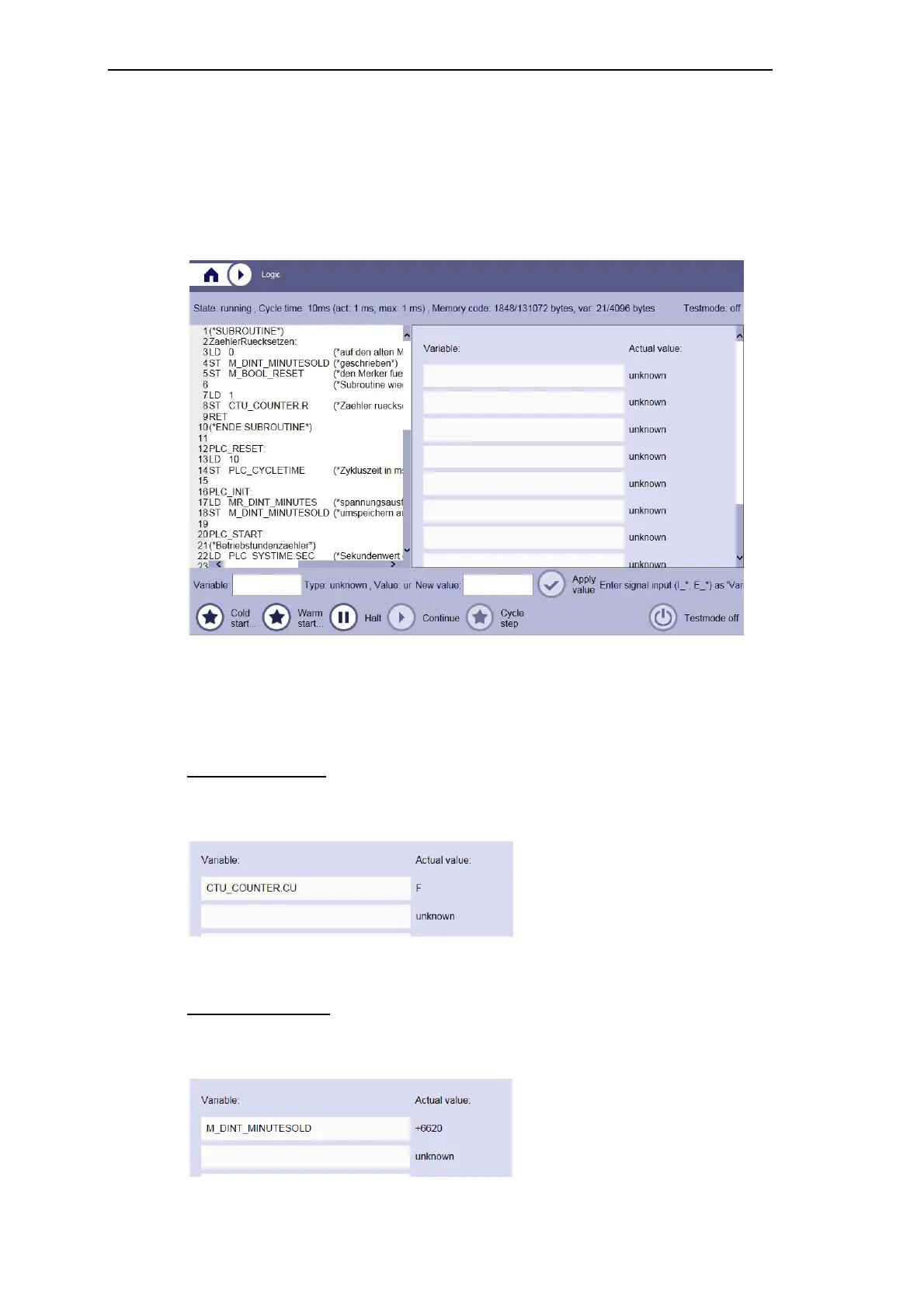

5.2.2.2.2 Display Current Value of Selected Variables
At the right side of the logic test page you can enter up to 10 variable names from the IL dis-
played at the left side of the page. You can also copy a variable name from the IL and paste it
into an input field.
After entering a valid variable name into the input field, the current value of this variable is dis-
played right beside the input field.
The update is performed in a grid of 1 s.
Example: Binary value
If you select a binary variable, T is displayed for TRUE and F for FALSE:
Example: Analog value
If you select a numeric variable, the number is displayed as follows:
