Installation
SICAM RTUs, User Manual SICAM CMIC 39
DC8-001-2.09, Edition 08.2016
You can find a diagram for the modem cable in section 2.4, Cables for External Communica-
tion Connections.

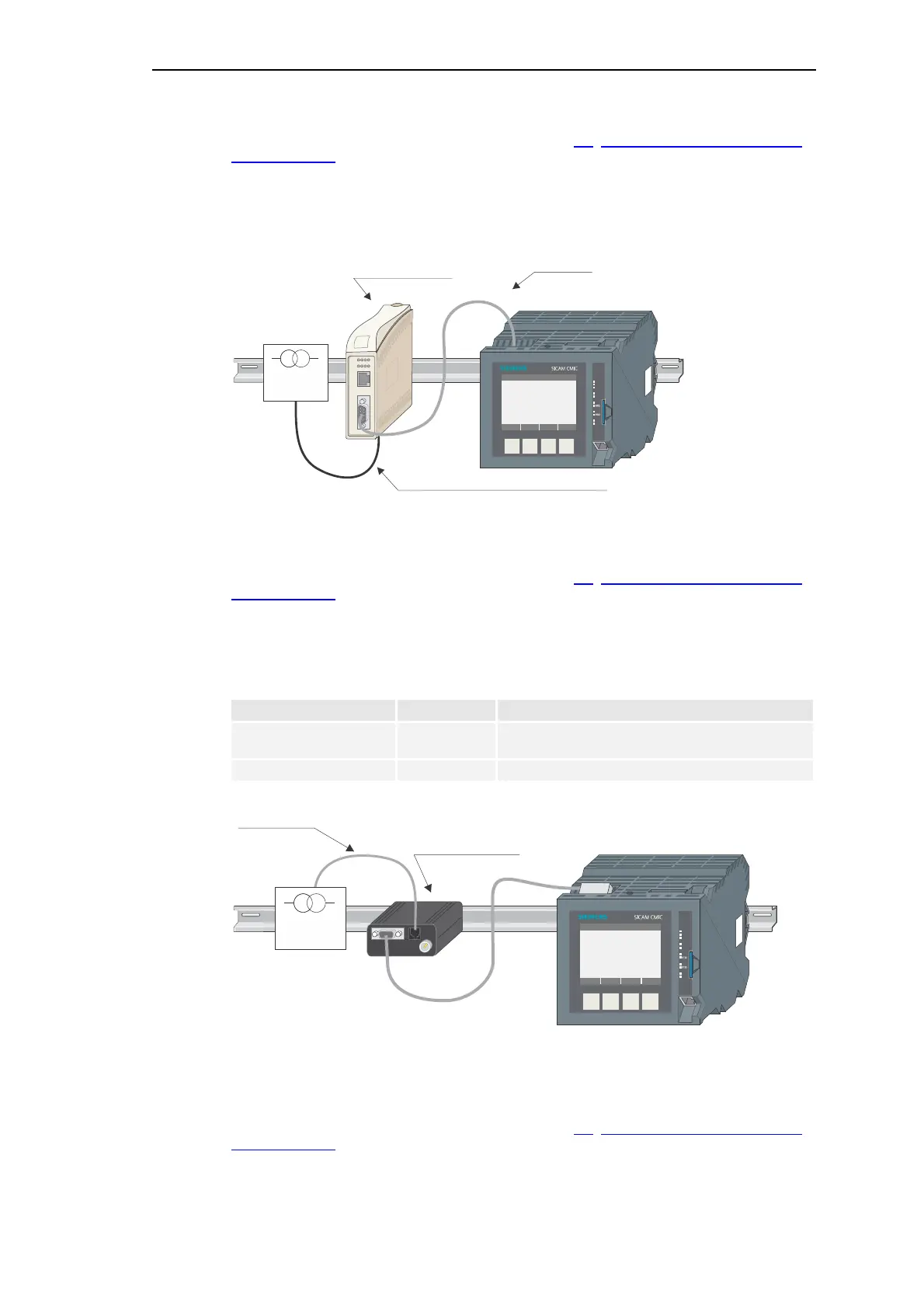

1.4.1.4 Dial-up Traffic ISDN with Westermo IDW-90 and External Supply
Order information for the transmission facility and cables see SICAM CMIC System Descrip-
tion, Appendix “Order Information“, section “Accessories“.
You can find a diagram for the modem cable in section 2.4, Cables for External Communica-
tion Connections.
1.4.1.5 Dial-up Traffic GSM, SMS Sender/Receiver
Modem Protocol Description
Cinterion MC52it DIAST0 Data transmission via GSM with CSD-Service (Circuit
Switched Data)
MC Technologies MC55iw SMST0 SMS Sender/Receiver
Order information for the transmission facility and cables see SICAM CMIC System Descrip-
tion, Appendix “Order Information“, section “Accessories“.
You can find a diagram for the modem cable in section 2.4, Cables for External Communica-
tion Connections.
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
4
Westermo IDW-90
WESTERMO IDW-90
I
S
D
N
RS-232
12...
48 VAC / 12...34 VAC (IDW-90 LV)
max. 2.5 m
Power
supply
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-2 32
OH2
RS-4 85
OH3
ETH
LK4
PK4
SD
X4
Modem
(Cinterion MC52iT,
MC55iw Terminal)
Power
supply
8 to 30 VDC
