Installation
SICAM RTUs, User Manual SICAM CMIC 27
DC8-001-2.09, Edition 08.2016

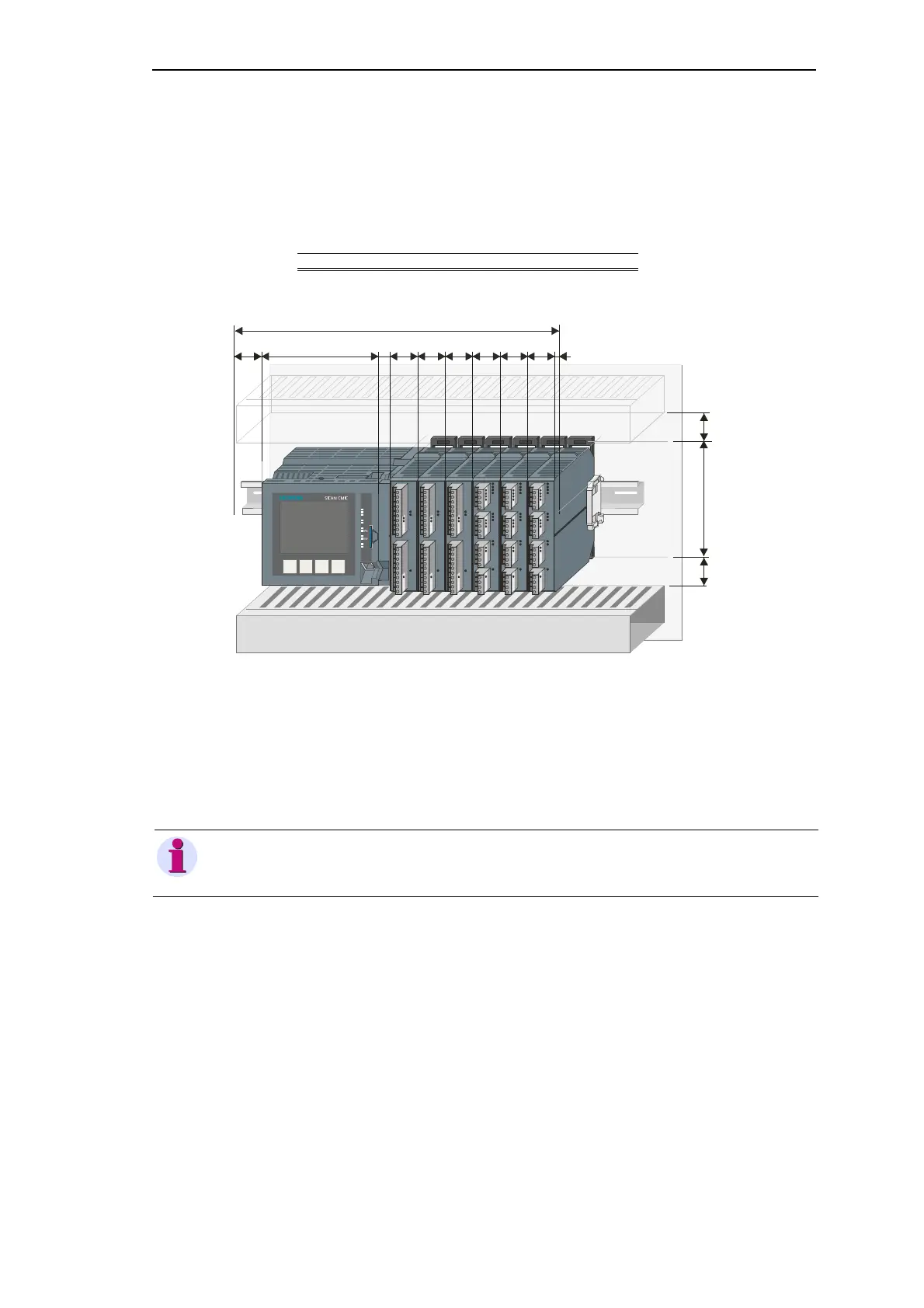

Example: SICAM CMIC + 6 ext. SICAM I/O modules
Thermical space ..................................................... 30
SICAM CMIC housing ............................................128
SICAM CMIC coupling module .............................. 12,5
SICAM I/O modules (6 x 30) ..................................180
(30 mm for each module; max. 6 permitted)
End clamp ................................................................ 5
Horizontal space requirement (mm)..................... 355,5
1.3.3 Cable Duct
Cable ducts are recommended for the cabling above and below the device. The minimum dis-
tance from the device to the cable duct is 30 mm.
Note
When using a cable duct with 100 mm depth below the device, it is necessary to keep a 50 mm minimum
distance between device and cable duct to operate the locking hook.
m
i
n
.
3
0
1
2
4
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
128
30
12,5
30
355,5
530 30
30
30
30
m
i
n
.
3
0
